☆型号：1769-L35CR I/O 模块 扩展容量
【产品详情】

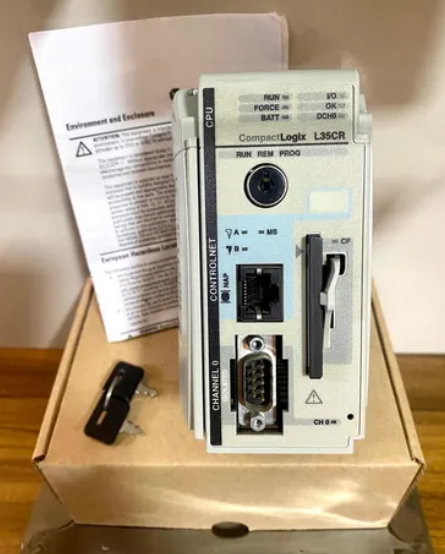

Allen-Bradley 1769-L35CR 是一款 Logix 控制器。设备可以使用 1756-CP3 和 1747-CP3 电缆通过 RS-232 端口连接到 1769-L35CR 。1769-L35CR 必须战略性地放置在 4 个电源模块中。它可以支持多达 30 个 I/O 模块，这些模块可通过 2 根独特的扩展电缆连接到多达 3 个 I/O bank。 1769-L35CR 的 I/O 组配有单独的电源，控制器的独特性要求一次只能将 1 台 1769-L35CR 连接到 Logix 系统。
1769-L35CR 具有 30 个模块的扩展容量。 1769-L35CR 具有 680mA 的 （5V） 直流消耗电流和高达 4.36W 的散热。1769-L35CR 提供 30V 的最大电线绝缘，背板电流为 680mA （5V DC）。它可以很容易地安装在DIN导轨安装上，工作冲击等级为20G，或者安装在面板安装上，具有相同的冲击率。
1769-L35CR 在 10-500 HZ 的频率下具有 5G 工作振动。它可以承受 1.1 – 1.8 Nm 的安装扭矩。1769-L35CR 紧凑型 Logix 控制器的存储温度介于 -40 至 85 °C（-40 至 185 °F）之间，并在 0 至 60 °C（32 至 140 °F）的温度范围内高效运行。它具有 0 – 95% 的非冷凝相对湿度，重量约为 0.32 千克（0.70 磅）。
☆型号：1769-L35CR I/O 模块 扩展容量
【英文介绍】
The Allen-Bradley 1769-L35CR is a Logix controller. Devices can be connected to the 1769-L35CR using 1756-CP3 and 1747-CP3 cables via the RS-232 port. The 1769-L35CR must be strategically placed in four power modules. It can support up to 30 I/O modules, which can be connected to up to 3 I/O banks via 2 unique expansion cables. The 1769-L35CR's I/O package has a separate power supply, and the unique nature of the controller requires that only one 1769-L35CR can be connected to the Logix system at a time.
The 1769-L35CR has an expanded capacity of 30 modules. The 1769-L35CR has a 680mA (5V) DC consumption current and a heat dissipation of up to 4.36W. The 1769-L35CR offers a maximum wire insulation of 30V and a backplane current of 680mA (5V DC). It can be easily mounted on a DIN rail mount with an operating impact rating of 20G, or mounted on a panel mount with the same impact rate.
The 1769-L35CR has 5G operating vibration at a frequency of 10-500 HZ. It can withstand 1.1-1.8 Nm of mounting torque. The 1769-L35CR compact Logix controller has storage temperatures ranging from -40 to 85 °C (-40 to 185 °F) and operates efficiently over a temperature range of 0 to 60 °C (32 to 140 °F). It has 0-95% non-condensing relative humidity and weighs about 0.32 kg (0.70 lb).
☆型号：1769-L35CR I/O 模块 扩展容量
