150-F135NBD 智能电机控制器 软启动器

☆型号：150-F135NBD 智能电机控制器 软启动器

【产品详情】

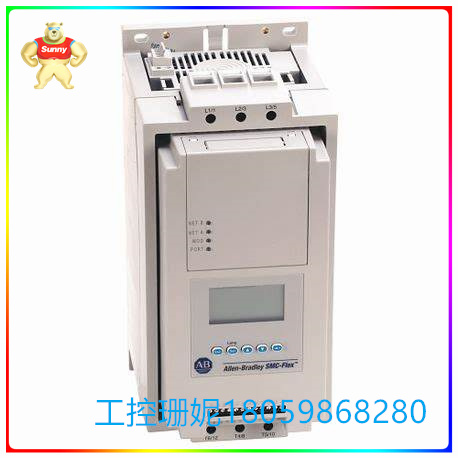

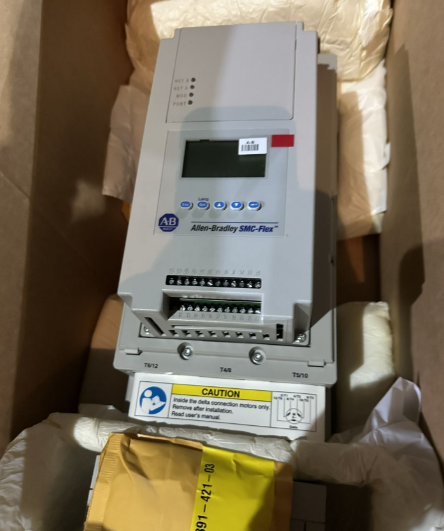

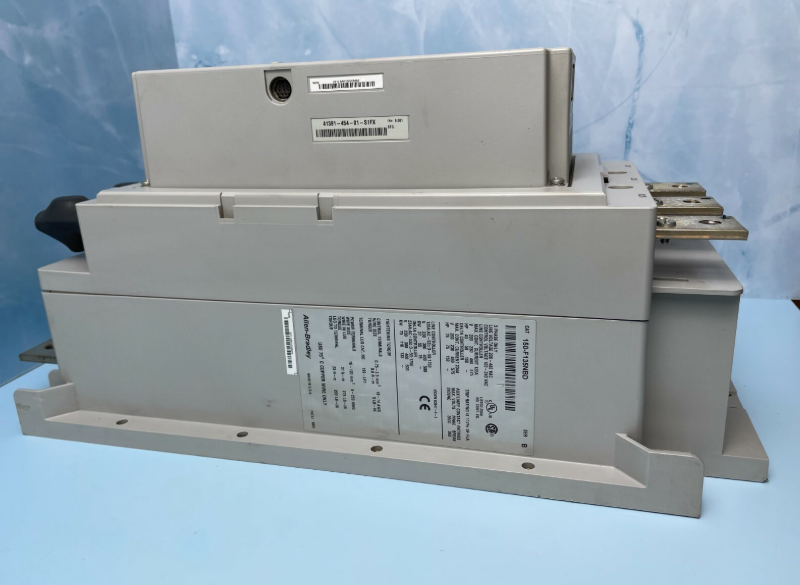

Allen-Bradley 150-F135NBD是一款SMC Flex智能电机控制器。该控制器通常称为软启动器，通常用于在启动顺序期间保护电机，但是，该智能电机控制器不仅限于启动功能，因为它还为停止顺序和电机的空闲运行提供了适当的控制模式。

150 F135NBD智能电机控制器能够软启动、全电压启动、智能电机制动、限流启动、双斜坡启动、精确停止、可选启动、泵启动、带制动的慢速、滑行到静止、预设慢速、线速度加速度（需要转速表）、软停止和泵停止。

150-F135NBD的线路电压为 200-460VAC，三相，频率为 50 和 60 Hz，而设备控制电压为 100-240V AC（5-480 A 单位）。在提供适当的电压的情况下，该电机控制器在 460VAC 额定电压下提供 135 安培的最大连续输出电流和 100 HP 的输出功率，采用开放式外壳。此外，150-F135NBD可用作线路控制器和增量控制器。根据控制器模式的不同，输出特性会有所不同。

此外，150-F135NBD 还能够检测功率损耗、线路故障、电压不平衡、每小时启动次数过长、相位反转、欠压、过压、控制器温度、失速、堵塞、开门、过载、欠载，甚至通信故障。它还能够实现计量功能，其中控制器可以配置为累加安培、伏特、千瓦、千瓦时、兆瓦时、兆瓦时、经过时间、功率因数和电机热容量使用。它还配有一个报警触点，使该器件能够从外部发出过载、欠载、欠压、过压、不平衡、堵塞、失速和接地故障情况的信号。

☆型号：150-F135NBD 智能电机控制器 软启动器

【英文介绍】

Allen-Bradley 150-F135NBD is an SMC Flex intelligent motor controller. This controller is often referred to as a soft starter and is usually used to protect the motor during the start sequence, however, this smart motor controller is not limited to the start function, as it also provides the appropriate control mode for the stop sequence and idle operation of the motor.

The 150 F135NBD smart motor controller is capable of soft start, full voltage start, smart motor braking, current limiting start, double ramp start, precision stop, optional start, pump start, slow with brake, coast-to-rest, Preset slow speed, linear acceleration (tachometer required), soft stop and pump stop.

The 150-F135NBD has a line voltage of 200-460VAC, three-phase, frequencies of 50 and 60 Hz, while the device control voltage is 100-240V AC (5-480A units). The motor controller offers a maximum continuous current of 135 amps and an output power of 100 HP at a 460VAC rated voltage, provided the appropriate voltage is provided, in an open housing. In addition, the 150-F135NBD can be used as a line controller and an incremental controller. The output characteristics vary depending on the controller mode.

In addition, the 150-F135NBD is capable of detecting power losses, line faults, voltage imbalances, excessively long starts per hour, phase reversals, undervoltage, overvoltage, controller temperature, stall, clog, opening, overload, underload, and even communication failures. It also enables metering functions where the controller can be configured for cumulative amperes, volts, kilowatts, KWH, megawatt-hours, megawatt-hours, elapsed time, power factor and motor heat capacity use. It is also equipped with an alarm contact that enables the device to externally signal overload, underload, undervoltage, overvoltage, unbalance, clogging, stall and ground fault situations.

☆型号：150-F135NBD 智能电机控制器 软启动器
