2711-T10C20 图形化操作终端 人机界面

☆型号：2711-T10C20 图形化操作终端 人机界面

【产品详情】

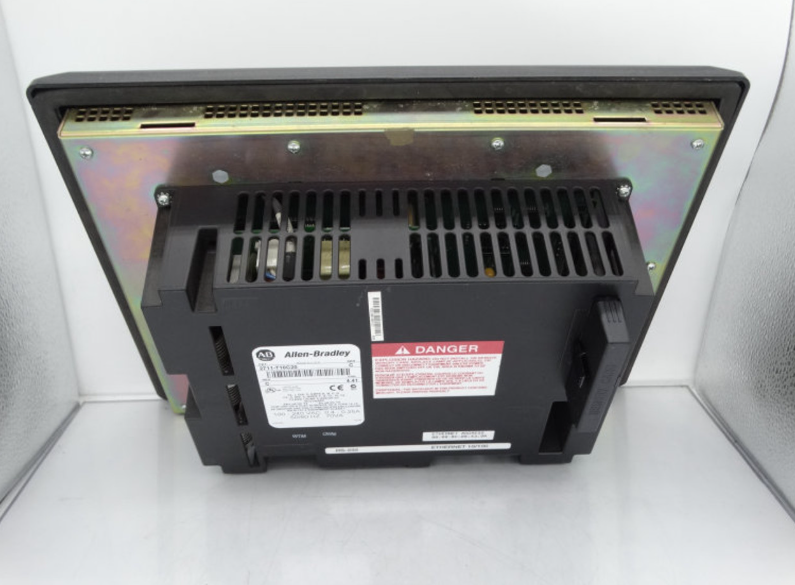

 Allen Bradley 的 2711-T10C20 操作终端是一种图形化操作终端，也称为人机界面 （HMI） 单元，使机器用户和过程操作员能够从单个方便的集成监控工作站控制特定区域或整个过程。2711-T10C20 是一款 PanelView Plus 1000 标准操作终端，配备 10.1 英寸彩色显示屏和模拟电阻式触摸屏，可通过点击 HMI 屏幕上显示的特定运行时项目直接操作。此外，该操作终端通过以太网连接连接器与 Allen-Bradley 控制器或第三方设备连接，该连接器支持 10/100 Mbps 传输速度和自动协商功能。辅助端口 RS232 9 针 sub D 接口专门设计用于与报警打印机通信，用于报警和事件记录。2711-T10C20 采用模拟电阻式触摸屏，可通过点击 HMI 屏幕上显示的特定运行时项目进行直接操作。它可以支持各种用途的各种配件，例如连接电缆、ATA PC 存储卡和 LCD 屏幕的防眩光覆盖层。该模块具有具有挑战性的 NEMA 12/13 型或 4X 型外壳，专为室内使用而设计。HMI 由 85 至 264 伏交流输入供电。2711-T10C20 的 1008 KB RAM 可以存储数据、文件、应用程序等。有以太网和打印机 （RS-232） 连接端口用于自适应连接，Allen-Bradley 2711-T10C20 模块可以为任何 Allen-Bradley 可编程控制器提供 HMI 支持。该 HMI 已通过 CE 和 UL 认证，可在 III 类 1 区工业环境中运行。

☆型号：2711-T10C20 图形化操作终端 人机界面

【英文介绍】

 The Allen Bradley 2711-T10C20 Operator Terminal is a graphical operator terminal, also known as a Human Machine interface (HMI) unit, that enables machine users and process operators to control a specific area or an entire process from a single convenient integrated monitoring workstation. The 2711-T10C20 is a PanelView Plus 1000 standard operating terminal with a 10.1-inch color display and an analog resistive touch screen that can be operated directly by clicking on a specific run time item displayed on the HMI screen. In addition, the operating terminal is connected to an Allen-Bradley controller or third-party device via an Ethernet connection connector that supports 10/100 Mbps transfer speeds and auto-negotiation. Auxiliary port RS232 9-pin sub D interface is specifically designed to communicate with alarm printers for alarm and event recording. The 2711-T10C20 features an analog resistive touch screen that allows direct operation by clicking on specific run-time items displayed on the HMI screen. It can support a variety of accessories for a variety of purposes, such as connection cables, ATA PC memory cards, and anti-glare coverings for LCD screens. The module features a challenging NEMA Type 12/13 or 4X housing and is designed for indoor use. The HMI is powered by 85 to 264 volts AC input. The 2711-T10C20's 1008 KB of RAM can store data, files, applications, and more. There are Ethernet and printer (RS-232) connection ports for adaptive connectivity, and the Allen-Bradley 2711-T10C20 module can provide HMI support for any Allen-Bradley programmable controller. The HMI is CE and UL certified to operate in Class III Zone 1 industrial environments.

☆型号：2711-T10C20 图形化操作终端 人机界面
