2711P-T10C4A8 操作终端 矩阵屏幕

☆型号：2711P-T10C4A8 操作终端 矩阵屏幕

【产品详情】

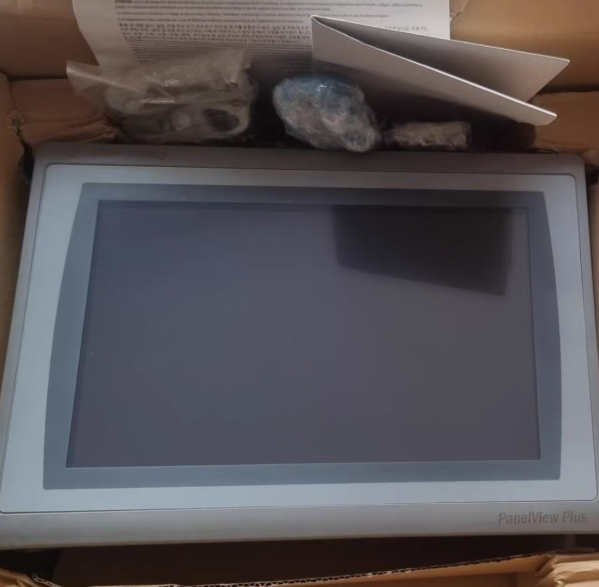

2711P-T10C4A8 是一款 PanelView Plus 6 操作终端。该算子是 PanelView Plus 产品系列的前身，该系列加载了各种现代规格。它仍然是一种经济高效且坚固耐用的人机界面 （HMI） 解决方案，可在过程和机器之间提供实时界面。

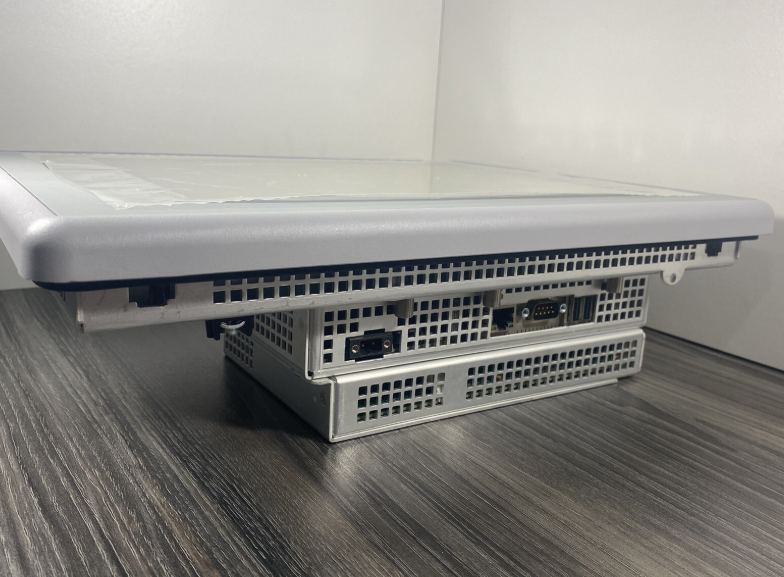

该操作终端配有尺寸为 10.4 英寸的彩色有源 TFT 矩阵屏幕。它具有 640 x 480 的分辨率、18 位彩色图形和 211 x 158 毫米（8.3 x 6.2 英寸）的有效可视区域。该操作终端配有可更换背光，在 25°C （77 °F） 下，其最小使用寿命为 50,000 小时。显示屏不仅提供过程读数，还通过 8 线模拟电阻式触摸屏提供输入接口，该触摸屏设计用于 100 万次压力机，驱动力为 10-110 g。该操作终端通过 RJ45 以太网通信端口的嵌入式 9 针 Sub-D 串行接口与合作伙伴自动化设备交换数据。此外，该操作员具有两 （2） 个 USB 主机和设备端口，可用于插入外部输入外围设备，例如鼠标和键盘以及通过 USB 闪存驱动器的可移动存储设备。

它配备 512MB 闪存和 512 MB 随机存取存储器 （RAM），由 100-240VAC、50-60 Hz 的外部电源供电。 2711P-T10C4A8 终端具有 10.4 英寸 TFT 显示屏，带电阻式触摸屏输入。

原始分辨率为 640 x 480 像素，带有 18 位彩色图形。它具有 512 MB 的 RAM 和 512 MB 的非易失性存储器用于数据存储。2711P-T10C4A8 重 8 磅，尺寸为 16 x 14 x 8 英寸。它需要 100 至 240 伏交流电的输入电压，频率为 50 至 60 赫兹，最大功耗为 160 VA。对于通信，它具有以太网和 RS-232 串行端口，以及可选的 DH-485、DH+ 和 ControlNet 模块端口。2711P-T10C4A8 还具有 2 个 USB 端口，用于连接外部设备，例如键盘和闪存驱动器。用户能够利用触摸屏输入信息和数据来控制 2711P-T10C4A8 操作界面。

☆型号：2711P-T10C4A8 操作终端 矩阵屏幕

【英文介绍】

The 2711P-T10C4A8 is a PanelView Plus 6 operating terminal. The operator is the predecessor of the PanelView Plus product family, which is loaded with a variety of modern specifications. It remains a cost-effective and rugged human machine interface (HMI) solution that provides a real-time interface between process and machine.

The operator terminal is equipped with a 10.4 inch color active TFT matrix screen. It has a resolution of 640 x 480, 18-bit color graphics, and an effective viewing area of 211 x 158 mm (8.3 x 6.2 in). The operating terminal has a replaceable backlight and a minimum service life of 50,000 hours at 25°C (77 °F). The display not only provides process readings, but also provides an input interface via an 8-wire analog resistive touch screen designed for 1 million presses with a driving force of 10-110 g. The operator terminal exchanges data with partner automation equipment via an embedded 9-pin Sub-D serial interface in the RJ45 Ethernet communication port. In addition, the operator has two (2) USB host and device ports that can be used to plug in external input peripherals, such as mice and keyboards and removable storage devices via USB flash drives.

It comes with 512MB of flash memory and 512MB of random access memory (RAM) and is powered by an external power supply of 100-240VAC, 50-60 Hz. The 2711P-T10C4A8 terminal features a 10.4-inch TFT display with resistive touch screen input.

The original resolution is 640 x 480 pixels with 18-bit color graphics. It has 512 MB of RAM and 512 MB of non-volatile memory for data storage. The 2711P-T10C4A8 weighs 8 pounds and measures 16 x 14 x 8 inches. It requires an input voltage of 100 to 240 volts AC at a frequency of 50 to 60 Hertz and a maximum power consumption of 160 VA. For communication, it has Ethernet and RS-232 serial ports, as well as optional DH-485, DH+, and ControlNet module ports. The 2711P-T10C4A8 also has 2 USB ports for connecting external devices, such as keyboards and flash drives. The user can control the 2711P-T10C4A8 operating interface by using the touch screen to input information and data.

☆型号：2711P-T10C4A8 操作终端 矩阵屏幕
