1761-L32AAA 控制器 嵌入式 I/O 通道

☆型号：1761-L32AAA 控制器 嵌入式 I/O 通道

【产品详情】

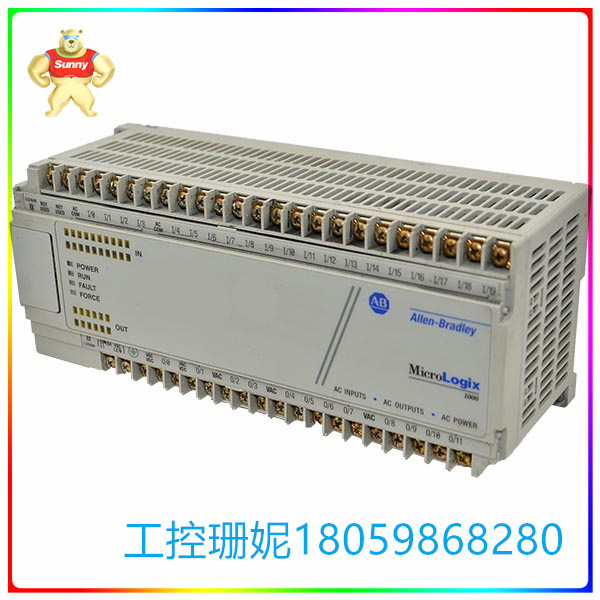

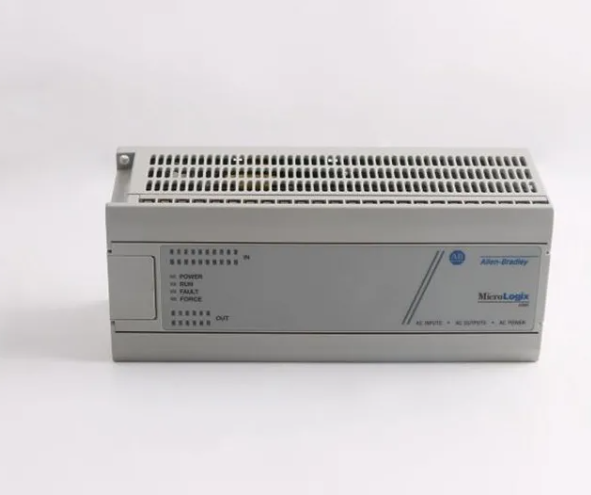

1761-L32AAA 是一款 Allen-Bradley MicroLogix 控制器。该控制器是 MicroLogix 1000 系列的典型产品，主要用于微型和小型自动化要求。它被归类为紧凑型或“鞋盒”控制器，带有集成电源、嵌入式 I/O 通道、集成存储器和通信接口。具体来说，1761-L32AAA 具有嵌入式电源，可在内部为控制器的电路供电。该嵌入式电源需要 120 / 240 VAC 的外部电源电压，可接受 85-264 VAC 的电压范围和 47-63 Hz 的频率范围。该控制器可用的集成 I/O 包括 120 VAC / 240 VAC。它内置二十 （20） 个 120 VAC 数字输入、十 （10） 个可控硅输出和两 （2） 个继电器输出。它还具有一 （1） 个 RS232 通信端口，可配置为使用 Allen-Bradley DF1 协议进行通信。该控制器可用的内置存储器是 1K 电可擦除可编程只读存储器 （EEPROM）。该存储器在内部划分为 737 个指令字和 437 个数据字。它可以使用梯形图编程语言进行编程，梯形图编程语言是IEC 61131标准认可的编程语言之一。安装时，该控制器支持DIN导轨和面板安装。它的长度为 200 毫米（7.87 英寸）;深度 73 毫米（2.87 英寸），高度 80 毫米（3.15 英寸）。控制器所有侧面的建议最小安装间隙为 50.8 毫米（2 英寸）。

1761-L32AAA 是一款 Allen-Bradley PLC 控制器，归类于 MicroLogix 1000 控制器系列。1761-L32AAA 的 I/O 计数为 32 点。1761-L32AAA 的电源最大浪涌电流额定为 30 安培，持续 8 毫秒。该模块具有输出型可控硅控制器，额定电源使用量为 120 至 240 伏交流电。1761-L32AAA 具有主控制继电器安全功能。制造商推荐的 1761-L32AAA 存储温度范围为 -40 摄氏度至 85 摄氏度。1761-L32AAA 的工作湿度为 5% 至 95%，无冷凝。该装置在运行状态下的抗振性为 5 赫兹至 2000 赫兹，而在非运行模式下，抗振性为 5 赫兹至 2000 赫兹。1761-L32AAA 开箱即用，符合各种认证要求。其中包括 CUL 1 类 2 分区组。1761-L32AAA 还通过了 UL 认证，符合 CE/RCM/EAC 标准。该装置的端子螺钉扭矩为 0.9 至 8.0 磅，静电放电额定值为 EN 61000-2，电压为 8000 伏。该器件的隔离额定值为1500 V AC，存储器大小和类型归类为1K EEPROM，可处理约737个指令字和437个数据字。它们体积小，但性能水平高。1761-L32AAA 非常适合较小的空间，并且功能强大，足以适应广泛的应用。

☆型号：1761-L32AAA 控制器 嵌入式 I/O 通道

【英文介绍】

The 1761-L32AAA is an Allen-Bradley MicroLogix controller. The controller is typical of the MicroLogix 1000 series and is primarily used for micro and small automation requirements. It is classified as a compact or "shoebox" controller with an integrated power supply, embedded I/O channels, integrated memory, and communication interfaces. Specifically, the 1761-L32AAA has an embedded power supply that internally powers the controller's circuitry. The embedded power supply requires an external supply voltage of 120/240 VAC and can accept a voltage range of 85-264 VAC and a frequency range of 47-63 Hz. The controller's available integrated I/ OS include 120 VAC / 240 VAC. It has built in twenty (20) 120 VAC digital inputs, ten (10) thyristor outputs, and two (2) relay outputs. It also has one (1) RS232 communication port that can be configured to communicate using the Allen-Bradley DF1 protocol. The internal memory available for the controller is 1K electrically erasable programmable read-only memory (EEPROM). The memory is internally divided into 737 instruction words and 437 data words. It can be programmed using Ladder Diagram programming language, one of the programming languages recognized by the IEC 61131 standard. When installed, the controller supports DIN rail and panel mounting. Its length is 200 mm (7.87 in); Depth 73 mm (2.87 in), height 80 mm (3.15 in). The recommended minimum mounting clearance on all sides of the controller is 50.8 mm (2 in).

The 1761-L32AAA is an Allen-Bradley PLC controller that belongs to the MicroLogix 1000 controller family. The 1761-L32AAA has an I/O count of 32 points. The 1761-L32AAA's power supply is rated for a maximum surge current of 30 amps for 8 milliseconds. The module has an output type thyristor controller and is rated for 120 to 240 volts AC. The 1761-L32AAA has a master control relay safety feature. The manufacturer's recommended storage temperature range for the 1761-L32AAA is -40 ° C to 85 ° C. The 1761-L32AAA operates at 5% to 95% humidity and is non-condensing. The device is resistant to vibration from 5 Hz to 2000 Hz in operation mode and from 5 Hz to 2000 Hz in non-operation mode. The 1761-L32AAA works out of the box and meets various certification requirements. These include CUL 1 Class 2 partition groups. The 1761-L32AAA is also UL certified to CE/RCM/EAC standards. The unit has a terminal screw torque of 0.9 to 8.0 pounds, an electrostatic discharge rating of EN 61000-2, and a voltage of 8000 volts. The device has an isolation rating of 1500 V AC, memory size and type classified as 1K EEPROM, and can handle approximately 737 instruction words and 437 data words. They are small in size but have a high level of performance. The 1761-L32AAA is well suited for smaller Spaces and is powerful enough to accommodate a wide range of applications.

☆型号：1761-L32AAA 控制器 嵌入式 I/O 通道
