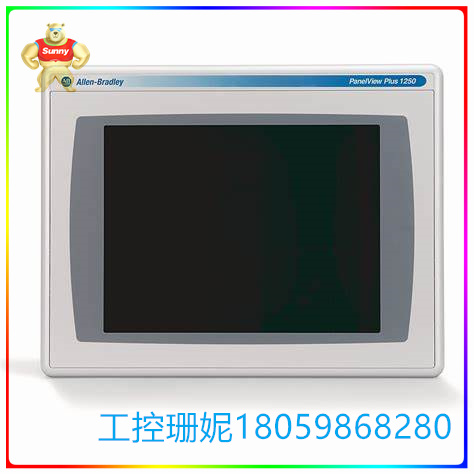

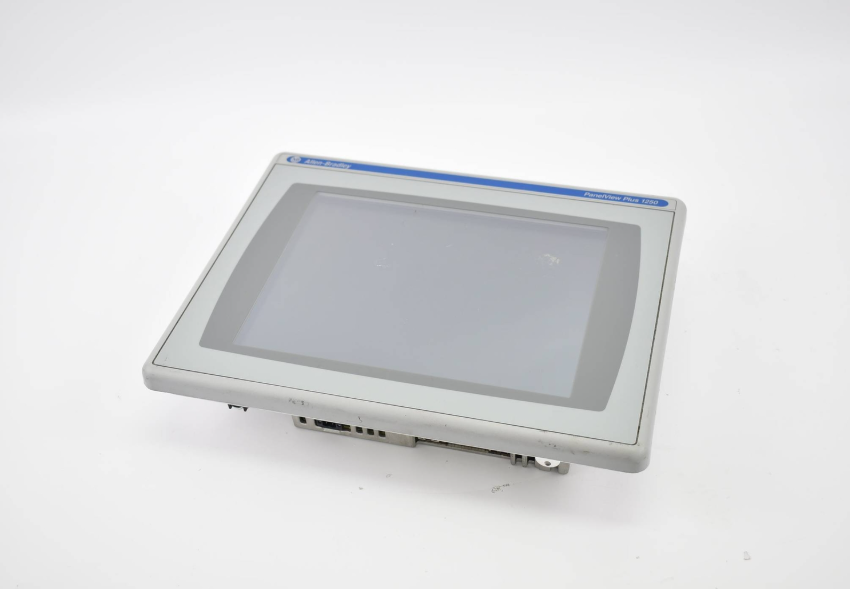

2711P-RDT12C 彩色屏幕 具有模拟电阻式触摸屏

☆型号：2711P-RDT12C 彩色屏幕 具有模拟电阻式触摸屏

【产品详情】

2711P-RDT10C是一款PanelView Plus / PanelView Plus 6附件。该配件是预装显示模块的替换部件，兼容 10.4 英寸彩色屏幕和触摸操作终端。

该显示组件采用 10.4 英寸彩色屏幕，分辨率为 640 x 480 像素，显示区域为 211 x 158 毫米（8.31 x 6.22）。它还具有模拟电阻式触摸屏，可在 10-110 g 的驱动力下操作多达 100 万次驱动。 2711P-RDT10C 显示模块只需简单的设置。

由于这是带有触摸屏薄膜的显示模块，因此必须对触摸组件进行校准。通过访问操作终端触摸设置并开始校准来启动校准。校准是通过终端执行一系列简单的步骤来完成的。它需要操作员交互，因为该方法将要求用户触摸屏幕的指定和选定区域，通常是显示器的角落。此外，显示设置还具有可调节的亮度和对比度。相应地调整这些设置。

显示模块遇到的常见问题是显示不足或零显示。通常，当亮度已设置为最大且显示器仍然不可见时，必须更换显示模块。它也是监控设备运行时间的理想选择。

☆型号：2711P-RDT12C 彩色屏幕 具有模拟电阻式触摸屏

【英文介绍】

The 2711P-RDT10C is a PanelView Plus/PanelView Plus 6 accessory. The accessory is a replacement for the pre-installed display module and is compatible with a 10.4-inch color screen and a touch-operated terminal.

The display unit features a 10.4-inch color screen with a resolution of 640 x 480 pixels and a display area of 211 x 158 mm (8.31 x 6.22). It also features an analog resistive touch screen that can operate up to 1 million drives at 10-110 g of driving force. The 2711P-RDT10C display module requires simple setup.

Since this is a display module with a touch screen film, the touch components must be calibrated. Start calibration by accessing the operating terminal to touch the Settings and start calibration. Calibration is done by performing a series of simple steps through the terminal. It requires operator interaction because the method will require the user to touch a specified and selected area of the screen, usually a corner of the display. In addition, the display Settings feature adjustable brightness and contrast. Adjust these Settings accordingly.

A common problem encountered by display modules is insufficient or zero display. Usually, when the brightness has been set to maximum and the display is still not visible, the display module must be replaced. It is also ideal for monitoring equipment uptime.
