MPL-B4530K-MJ74AA 永磁旋转伺服电机 构建自己的电缆

☆型号：MPL-B4530K-MJ74AA 永磁旋转伺服电机 构建自己的电缆

【产品详情】

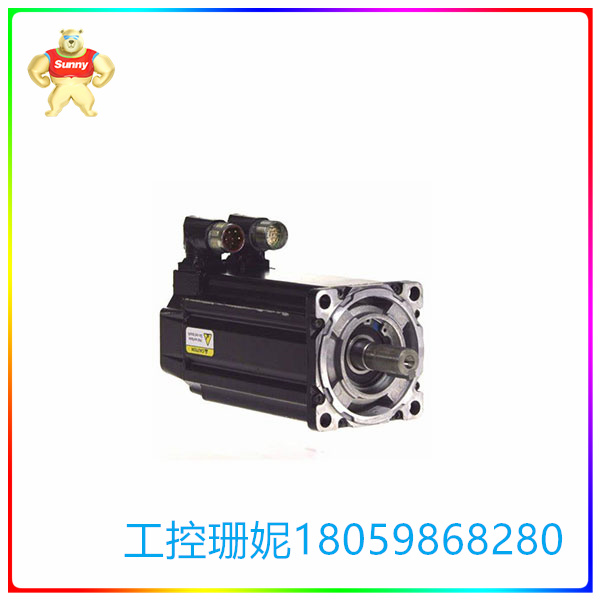

Allen-Bradley/Rockwell Automation MPL-B4530K-MJ74AA 伺服电机是一款优质的永磁旋转伺服电机。伺服电机是一种低惯量伺服电机，其额定输入电压为 460 伏交流电。MPL-B4530K-MJ74AA 伺服电机的额定输出视在功率为 2.6 千瓦，转子惯量为 0.00040 kg-m（平方）。伺服电机的连续失速扭矩和连续失速电流额定值分别为 73 磅/英寸和 11 安培。此外，电机的峰值失速转矩和峰值失速电流的额定值分别为 180 磅/英寸和 31 安培。Allen-Bradley MPL-B4530K-MJ74AA 伺服电机使用 SpeedTEC DIN 连接器，可将连接器旋转 180 度，具有极大的灵活性。这种类型的连接器的绝缘额定值为 600 伏交流电。对于额定值，SpeedTEC DIN 连接器由美国保险商实验室列出，它们具有 RoHS 和 REACH 额定值。此外，连接器符合 NFPA 79 标准，并具有托盘电缆额定值。连接器上的颜色符合 DESINA 电缆护套配色方案。

尽管 Allen-Bradley 提供与 MPL-B4530K-MJ74AA 伺服电机一起使用的电缆，但制造商还允许用户构建自己的电缆。因此，Allen-Bradley 还为此提供电机端连接器套件。该套件利用金属后壳和压缩式密封连接到电缆护套，插座可以是焊接式或压接式连接器插座，具体取决于套件。请注意，压接工具适用于压接式插座。MPL-B4530K-MJ74AA伺服电机属于Allen-Bradley MPL系列电机。伺服电机具有一个多圈高分辨率反馈编码器、一个制动器和一个轴键，并可容纳一个 IEC 公制安装法兰。

☆型号：MPL-B4530K-MJ74AA 永磁旋转伺服电机 构建自己的电缆

【英文介绍】

Allen-Bradley/Rockwell Automation MPL-B4530K-MJ74AA servo motor is a high-quality permanent magnet rotary servo motor. The servo motor is a low inertia servo motor with a rated input voltage of 460 volts AC. The rated output apparent power of the MPL-B4530K-MJ74AA servo motor is 2.6 kW, and the rotor inertia is 0.00040 kg-m (square). Continuous stall torque and continuous stall current ratings for the servo motor are 73 pounds/inch and 11 amps, respectively. In addition, the motor's peak stall torque and peak stall current are rated at 180 LBS/inch and 31 amps, respectively. The Allen-Bradley MPL-B4530K-MJ74AA servo motor uses the SpeedTEC DIN connector, which can be rotated 180 degrees for great flexibility. This type of connector has an insulation rating of 600 volts AC. For ratings, SpeedTEC DIN connectors are listed by Underwriters Laboratories of America and they have RoHS and REACH ratings. In addition, the connectors are NFPA 79 compliant and have pallet cable ratings. The colors on the connectors match the DESINA cable jacket color scheme.

Although Allen-Bradley offers cables for use with the MPL-B4530K-MJ74AA servo motor, the manufacturer also allows users to build their own cables. Therefore, Allen-Bradley also offers a motor end connector kit for this purpose. The kit utilizes a metal back housing and compression seal to connect to the cable sheath, and the receptacle can be a welded or crimped connector receptacle, depending on the kit. Please note that the crimp tool is suitable for crimp receptacles. The MPL-B4530K-MJ74AA servo motor belongs to the Allen-Bradley MPL series. The servo motor has a multi-turn high-resolution feedback encoder, a brake and a shaft key, and can accommodate an IEC metric mounting flange.

☆型号：MPL-B4530K-MJ74AA 永磁旋转伺服电机 构建自己的电缆
