1746SC-NI8U 通用模拟输入模块 智能逻辑控制器

☆型号：1746SC-NI8U 通用模拟输入模块 智能逻辑控制器

【产品详情】

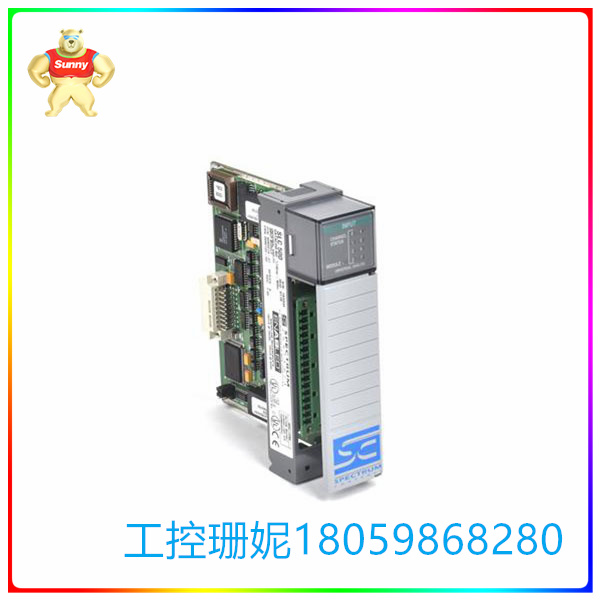

1746sc-NI8U 是 Allen-Bradley encompass 合作伙伴公司 Spectrum controls 的八 （8） 通道通用模拟输入模块。该模块与 Allen-Bradley 的智能逻辑控制器 （SLC） 系列兼容。它主要具有八 （8） 个模拟输入通道，与各种输入信号和乐器兼容。具体而言，该模块支持 J、K、T、B、E、R、S、N 型热电偶传感器以及 PT385/3916、Ni618/672、Cu426 型热电偶传感器。与这些传感设备的兼容性使该模块可用于温度测量和应用。此外，该模块还兼容直接输入 0 - 3000 欧姆的电阻信号，用于传感器的集成，通常是运动和线性运动检测和测量。该模块还兼容接收通用应用的标准 0-20 mA 和 4-20 mA 输入信号，以及各种电压信号，包括 ±50 mV、±100 mV、±0.5 V ±2.0 V、0-5 V、1-5 V、0-10 V 和 ±10 V。由于模块与多种模拟信号兼容，1746sc-NI8u可用于工业机器和过程的自动化要求。1746sc-NI8u 是单插槽宽度模块，可直接安装到 SLC 机箱上。此外，该模块的输出表直接与SLC处理器兼容，因此，该模块易于设置和操作。

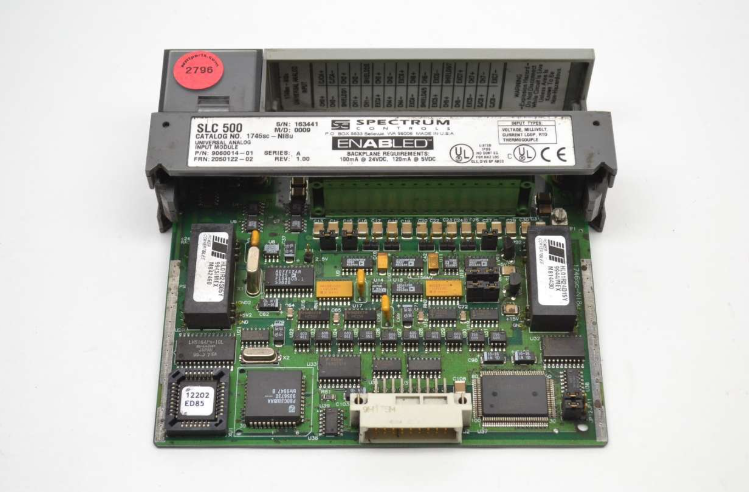

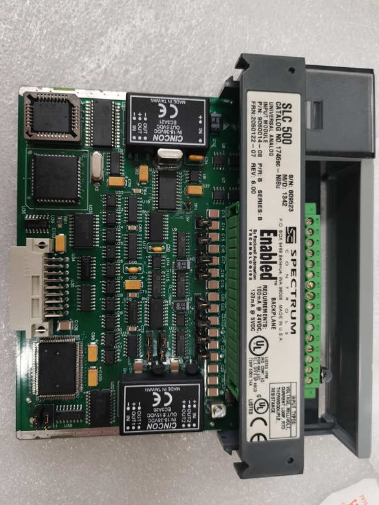

Spectrum Controls 1746sc-NI8U 是一款用于 SLC 500 设备的 8 通道通用模拟输入模块。该模块是 Allen-Bradley 小型逻辑控制器 （SLC） 系统的一部分。1746sc-NI8U 专门设计用于安装在 Allen-Bradley 制造的 1746 输入/输出机架中。该模块存储来自现场设备的数据，如热电偶、RTD、毫伏信号、伏特信号、毫安信号和 CJC 温度模拟数据。然后，这些数据可供 Allen-Bradley SLC 500 处理器使用，该处理器可以取出存储在模块图像表中的信息。Spectrum Controls 1746sc-NI8U 有 8 个通道，因此用户最多可以连接 8 个热电偶或电流或电压输入。或者，用户可以将其用于 4 个 RTD 或电阻输入和 4 个热电偶或电流或电压输入。

☆型号：1746SC-NI8U 通用模拟输入模块 智能逻辑控制器

【英文介绍】

The 1746sc-NI8U is an eight (8) channel universal analog input module from Allen-Bradley encompass Partner company Spectrum controls. The module is compatible with Allen-Bradley's Intelligent Logic Controller (SLC) family. It primarily features eight (8) analog input channels that are compatible with a variety of input signals and instruments. Specifically, the module supports thermocouple sensors of J, K, T, B, E, R, S, N and PT385/3916, Ni618/672, Cu426. Compatibility with these sensing devices allows the module to be used for temperature measurement and applications. In addition, the module is compatible with direct input resistance signals of 0-3000 ohms for the integration of sensors, typically motion and linear motion detection and measurement. The module is also compatible with standard 0-20 mA and 4-20 mA input signals for general purpose applications, as well as a variety of voltage signals including ±50 mV, ±100 mV, ±0.5 V ±2.0 V, 0-5 V, 1-5 V, 0-10 V, and ±10 V. Because the module is compatible with a wide range of analog signals, the 1746sc-NI8u can be used for the automation requirements of industrial machines and processes. The 1746sc-NI8u is a single slot width module that can be installed directly into the SLC chassis. In addition, the output table of the module is directly compatible with the SLC processor, so the module is easy to set up and operate.

The Spectrum Controls 1746sc-NI8U is an 8-channel universal analog input module for SLC 500 devices. The module is part of the Allen-Bradley Small Logic Controller (SLC) system. The 1746sc-NI8U is specifically designed to be installed in the Allen-Bradley built 1746 input/output rack. The module stores data from field devices such as thermocouples, RTDS, millivolt signals, volt signals, milliamps, and CJC temperature simulation data. This data is then available to the Allen-Bradley SLC 500 processor, which can pull out the information stored in the module's image table. The Spectrum Controls 1746sc-NI8U has 8 channels, so users can connect up to 8 thermocouples or current or voltage inputs. Alternatively, users can use it for 4 RTDS or resistance inputs and 4 thermocouples or current or voltage inputs.

☆型号：1746SC-NI8U 通用模拟输入模块 智能逻辑控制器
