1746-OBP16 数字输出模块 适用于大电流环境

☆型号：1746-OBP16 数字输出模块 适用于大电流环境

【产品详情】

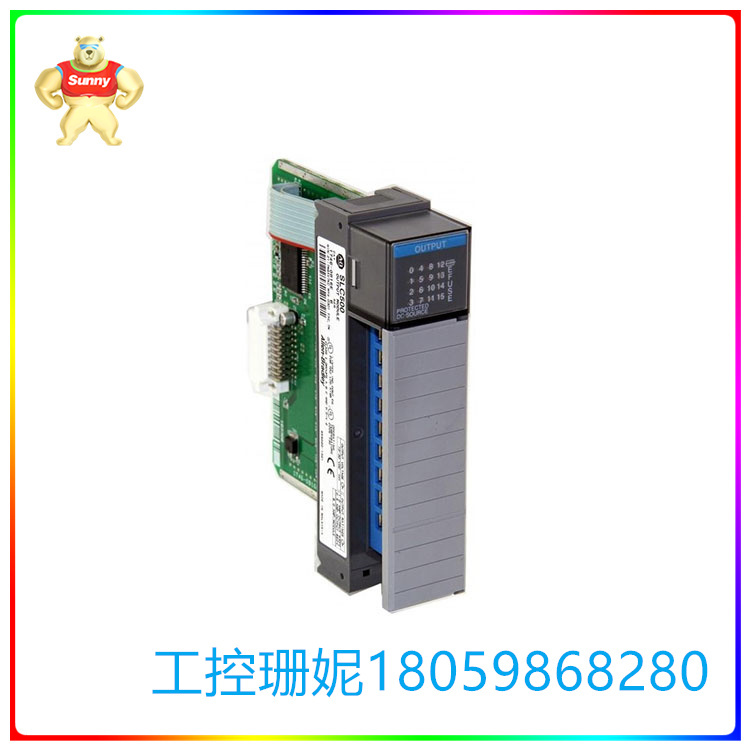

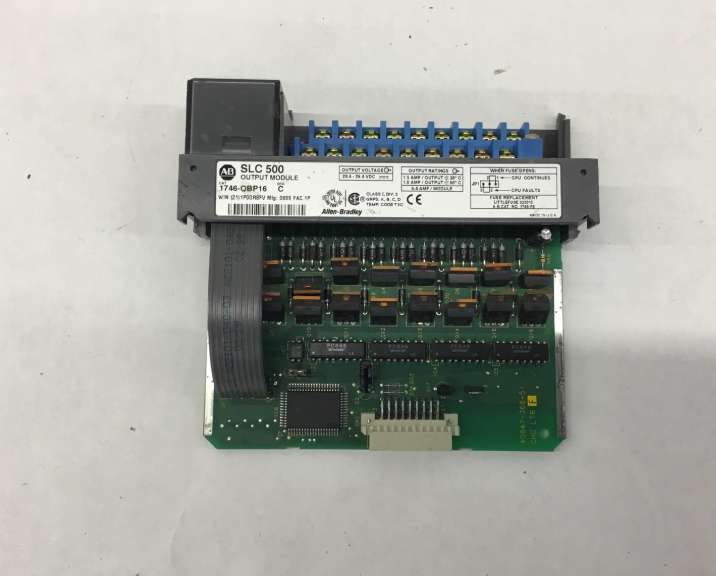

Allen-Bradley 1746-OBP16 是属于 SLC 500 系列输出控制器的数字输出模块。它有 16 个输出点，适用于大电流环境。1746-OBP16 的工作电压在 20.4 至 26.4V DC 之间。它在 5V 时消耗 250mA 背板电流，在 24V 时消耗 0A 背板电流。它有一个熔断的保险丝指示灯，当保险丝熔断时，“处理器错误”和“熔断的保险丝”LED 指示灯会亮起。1746-OBP16 的额定散热为每点 0.31W，最小耗散为 1.25W，总耗散为 6.26W。

1746-OBP16 每个公共点有 16 个点。在最大阻性负载下，1746-OBP16 在导通状态下的信号延迟为 0.1ms，在关断状态下的信号延迟为 1ms。它还具有 1mA 的最小负载电流和 1mA 的关断状态漏电流。1746-OBP16 的每点连续电流在 86 华氏度时为 1.5A，在 140 华氏度时为 1A。它在 32-140 华氏度时每个模块的连续电流为 6.4A，每点的浪涌电流为 4A，持续 10ms。1746-OBP16 在 1A 时的最大导通电压降为 1V，每个模块的浪涌电流为 32A，持续 10ms。

☆型号：1746-OBP16 数字输出模块 适用于大电流环境

【英文介绍】

Allen-Bradley 1746-OBP16 is a digital output module belonging to the SLC 500 series of output controllers. It has 16 output points and is suitable for high-current environments. The 1746-OBP16 operates at a voltage between 20.4 and 26.4V DC. It consumes 250mA backplane current at 5V and 0A backplane current at 24V. It has a blown fuse indicator light, and when the fuse is blown, the "processor error" and "blown fuse" LED indicators light up. The 1746-OBP16 has a rated heat dissipation of 0.31W per point, a minimum dissipation of 1.25W, and a total dissipation of 6.26W.

1746-OBP16 Each common point has 16 points. Under the maximum resistive load, the 1746-OBP16 has a signal delay of 0.1ms in the on-state and 1ms in the off-state. It also has a minimum load current of 1mA and a turn-off state leakage current of 1mA. The continuous current per point of the 1746-OBP16 is 1.5A at 86 degrees Fahrenheit and 1A at 140 degrees Fahrenheit. It has a continuous current of 6.4A per module at 32-140 degrees Fahrenheit and a surge current of 4A per point for a duration of 10ms. The 1746-OBP16 has a maximum on-voltage drop of 1V at 1A and a surge current of 32A per module for 10ms.

☆型号：1746-OBP16 数字输出模块 适用于大电流环境
