☆型号：2094-BM01-M 变频器 嵌入式安全功能
【产品详情】

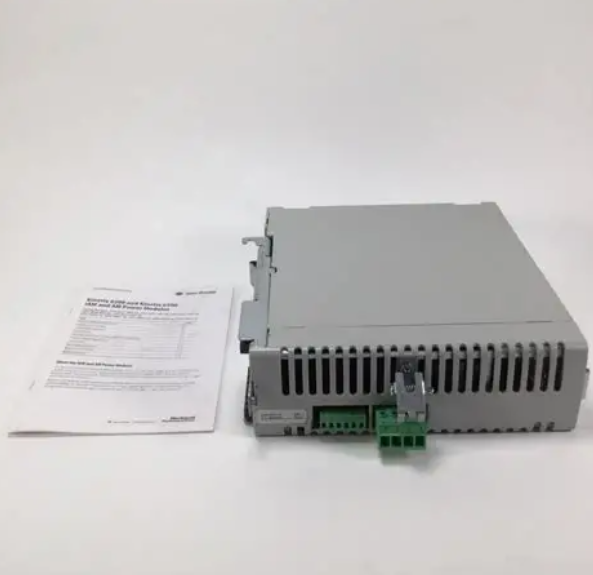

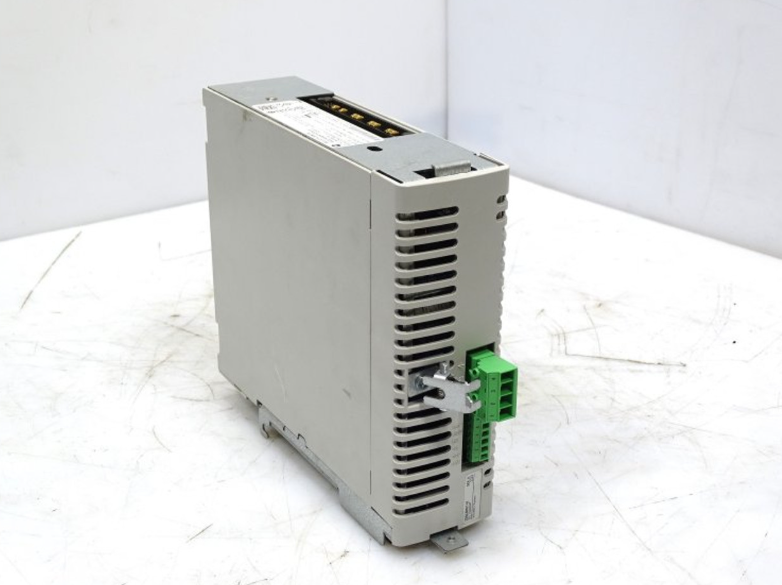

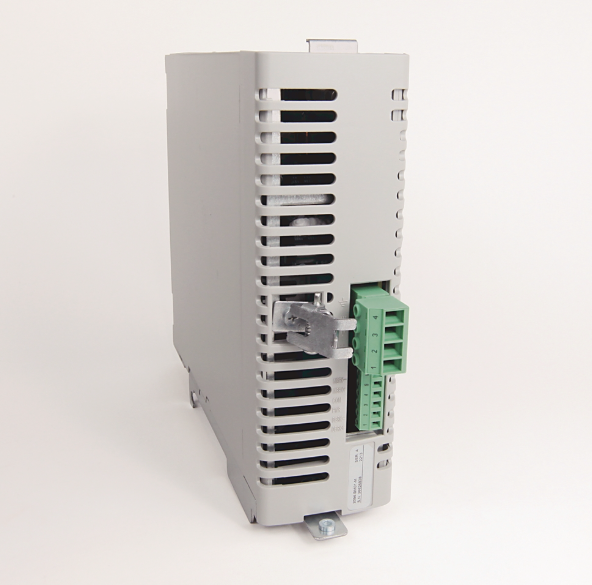

2904-BM01-M 是 Allen-Bradley 组件，设计用于 Kinetix 6000 变频器。该驱动器用作轴模块 （AM），属于 400VAC 电压类别，连续电流为 6.1 A，峰值电流为 15.3 A。
2904-BM01-M 直接安装在 Kinetix 驱动器电源轨上。它通常安装在集成轴模块 （IAM） 旁边，沿着模块获取电力为内部电路供电的电源轨。该轴模块通过反馈电缆、辅助反馈电缆、I/O 和安全接线连接到电机和运动设备。安讯士模块还允许安装控制模块，以便将控制输入集成到模块中。
2904-BM01-M 具有 500Hz 的带宽速度环路和 1300Hz 的电流环路频率，脉宽调制 （PWM） 频率为 4 kHz。该模块内置一个内部分流器，连续功率为 50 W，峰值功率为 5.6 kW，内部闭合电阻额定值为 115 Ω。分流接通时的额定电压为 805VDC，而分流断开时的额定电压为 765VDC。该模块的效率为 98%，电容为 150 ？F和电容能量吸附为19焦耳。
该模块的额定功率输出为 57 瓦（20%）、75 瓦（40%）、90 瓦（60%）、108 瓦（8%）和 126 瓦（100% 负载）。为了计算机柜通风，可以使用这些功率输出数据。
☆型号：2094-BM01-M 变频器 嵌入式安全功能
【英文介绍】
The 2904-BM01-M is an Allen-Bradley component designed for use with the Kinetix 6000 frequency converter. The driver is used as A shaft module (AM) in the 400VAC voltage category with A continuous current of 6.1 A and a peak current of 15.3 A.
The 2904-BM01-M is mounted directly on the Kinetix drive power rail. It is usually installed next to the Integrated shaft module (IAM), along the power rail where the module obtains electricity to power the internal circuits. The shaft module is connected to the motor and motion equipment via feedback cables, auxiliary feedback cables, I/O and safety wiring. Axis module also allows the installation of control modules to integrate control inputs into the module.
The 2904-BM01-M has a bandwidth speed loop of 500Hz and a current loop frequency of 1300Hz, with a pulse width modulation (PWM) frequency of 4 kHz. The module has an internal shunt with a continuous power of 50 W, a peak power of 5.6 kW and an internal closing resistance rating of 115 Ω. The rated voltage is 805VDC when the shunt is on, and 765VDC when the shunt is off. The module has an efficiency of 98% and a capacitance of 150? F and capacitance energy adsorbed to 19 joules.
The module has a rated power output of 57 watts (20%), 75 watts (40%), 90 watts (60%), 108 watts (8%) and 126 watts (100% load). To calculate cabinet ventilation, you can use these power output data.
