1783-BMS20CGPK 以太网交换机 高级网络特性

☆型号：1783-BMS20CGPK 以太网交换机 高级网络特性

【产品详情】

特性和优势

高级网络特性

• 集成设备级环网 DLR) 连接有助于优化网络架构以及提供统一的网络

诊断

• 集成网络地址转换(NAT)提供 1:1 IP 地址映射，有助于缩短调试时间

• 以太网供电 (PoE) 型号通过以太网向设备供电，最大程度减少布线

• 安全特性（包括访问控制列表）有助于确保只有授权的设备、用户和通信

可以访问网络

• 安全数字 (SD) 卡可简化设备更换优化的集成方式：

• Studio 5000® 用户自定义配置文件(AOP)可实现与罗克韦尔自动化集成

架构系统的优质整合

• 集成的预定义 Logix 标签可用于监视和端口控制

• 采用 FactoryTalk® View 面板监视状态并报警

• 借助内置 Cisco® 互联网操作系统

(IOS) 可与企业网络实现安全集成

由于 EtherNet/IP 在工业自动化领域广泛部署，合理地管理网络成为一项

日益增长的需求。要将新的机器层网络集成到现有工厂网络，我们需要进

行网络融合。

当比以往更多数量的设备连接在同一以太网中时，工业管理型交换机可帮

助您简化网络基础设施。将管理型交换机添加到网络架构中还能帮助您简

化新机器添加过程。

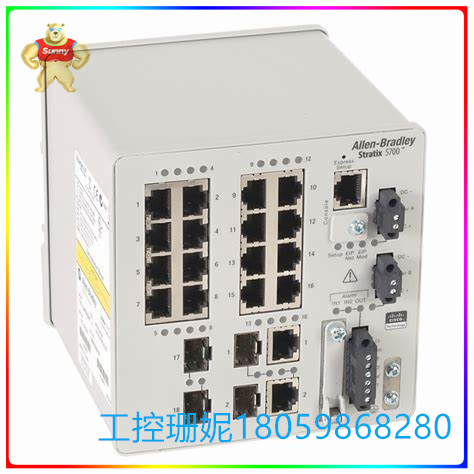

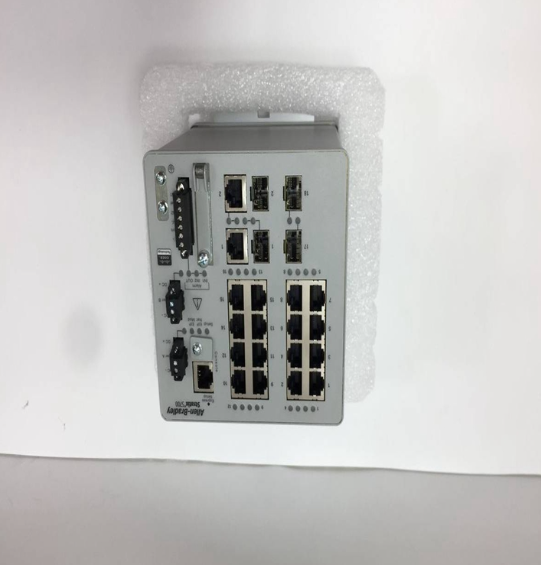

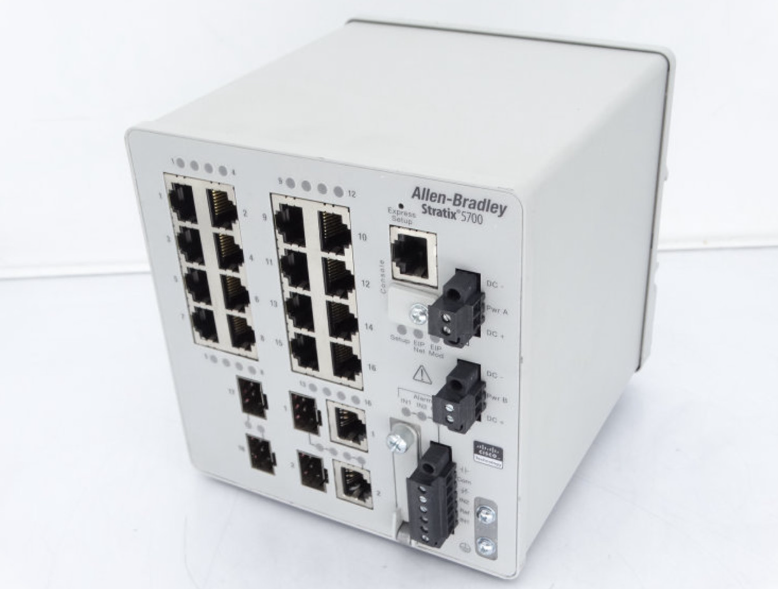

Allen-Bradley® Stratix 5700 属于紧凑型可升级第二层管理型交换机，其

采用嵌入式Cisco技术，适用于小型独立网络乃至复杂网络等应用。与

Studio 5000 自动化工程和设计环境集成后，您可利用 FactoryTalk® View

面板和用户自定义配置文件进行简化的配置和监视。

通过选择由罗克韦尔自动化有限公司和 Cisco 合作开发的交换机，您的运

营技术 (OT) 和信息技术 (IT) 专业人员可以选择自己熟悉的工具和技术加

以利用。这种协作同样有助于减少配置时间和成本

☆型号：1783-BMS20CGPK 以太网交换机 高级网络特性

【英文介绍】

Characteristics and advantages

Advanced network features

• Integrated device-level DLR connectivity helps optimize network architecture and provide a unified network

diagnosis.

• Integrated Network Address Translation (NAT) provides 1:1 IP address mapping to help reduce debugging time

• Power over Ethernet (PoE) models power devices over Ethernet to minimize cabling

Security features, including access control lists, help ensure that only authorized devices, users, and communications are available

Can access the network

• Secure Digital (SD) cards simplify equipment replacement with optimized integration:

Studio 5000® User-defined Profile (AOP) enables integration with Rockwell Automation

Excellent integration of architecture systems

• Integrated pre-defined Logix tags for monitoring and port control

• Monitor status and alert with FactoryTalk® View panel

• With the built-in Cisco® Internet operating system

(IOS) for secure integration with enterprise networks

Due to the widespread deployment of EtherNet/IP in the field of industrial automation, it is important to properly manage the network

Growing demand. To integrate the new machine layer network into the existing factory network, we need to enter

Line network convergence.

When more devices than ever are connected on the same Ethernet, industrial managed switches can help

Simplify your network infrastructure. Adding managed switches to your network architecture can also help you simplify

New machine addition process.

Allen-Bradley® Stratix 5700 is a compact upgradeable Layer 2 managed switch that

With embedded Cisco technology, it is suitable for small independent networks and even complex networks. with

With the Studio 5000 automation engineering and design environment integrated, you can take advantage of FactoryTalk® View

Panels and user-defined profiles for simplified configuration and monitoring.

By choosing a switch developed in partnership with Rockwell Automation and Cisco, you can ship

Battalion Technology (OT) and information technology (IT) professionals can choose their own familiar tools and technologies plus

To take advantage of. This collaboration also helps reduce configuration time and costs
