1784-pcic 通用 PCI 通信卡 冗余 BNC 连接器

☆型号：1784-pcic 通用 PCI 通信卡 冗余 BNC 连接器

【产品详情】

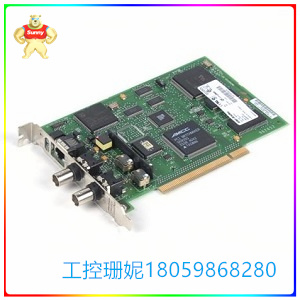

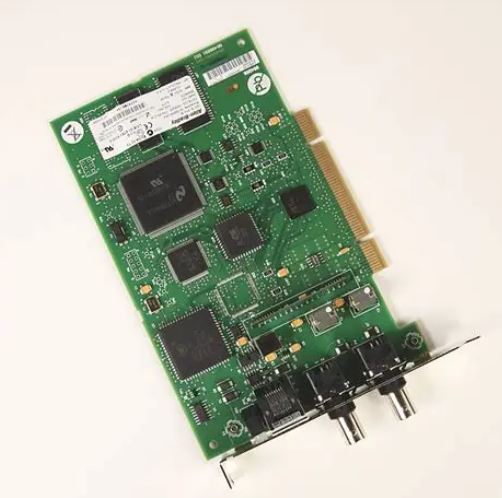

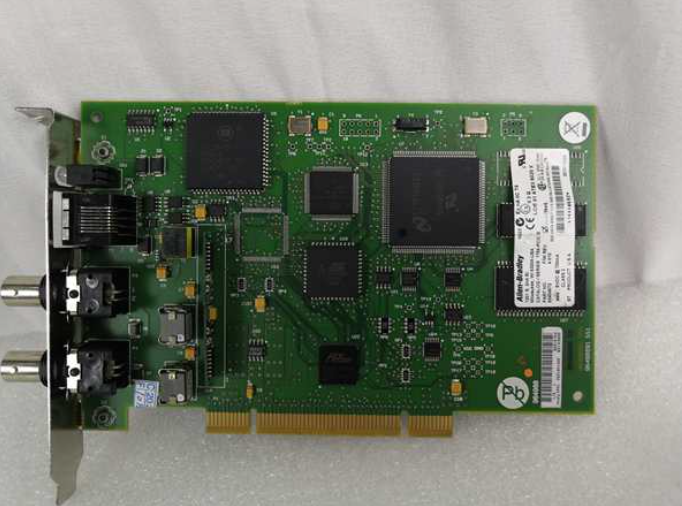

Allen-Bradley 1784-PCIC 卡是 ControlNet 通用 PCI 通信卡。安装时，需要访问主机的扩展槽，然后将卡插入计算机。在安装卡之前，必须关闭计算机。由于卡对 ESD 造成的损坏很敏感，因此在处理卡时应遵循以下准则：用户应触摸接地物体以释放静电，使用接地腕带，避免触摸卡组件和引脚和连接器，在状态安全区域工作，并在不使用时将卡存放在防静电容器中。1784-PCIC 卡的尺寸为 4.2 x 6.5 英寸。1784-PCIC 卡具有一个 RJ-45 连接器，用于将编程端子连接到 ControlNet 设备。它还具有用于 ControlNet 连接的冗余 BNC 连接器。

将编程端子连接到 1784-PCIC 卡时，只能使用 1786-CP 电缆。1784-PCIC 卡兼容 5 伏和 3.3 伏额定 PCI 插槽、32 位和 64 位 PCI 插槽以及 PCI-X 插槽。该卡的功耗为 3.5 瓦。隔离电压为 50 伏，经测试可承受 600 伏电压 60 秒。1784-PCIC 卡上的通信端口应使用 2 类电线。卡的工作温度范围为 0 至 50 摄氏度。储存和运输的推荐温度范围为 -40 至 85 摄氏度。1784-PCIC 卡通过了 CE、CSA、UR、EEx 和 C-tick 标准认证。

☆型号：1784-pcic 通用 PCI 通信卡 冗余 BNC 连接器

【英文介绍】

The Allen-Bradley 1784-PCIC card is a ControlNet universal PCI communication card. To install, you need to access the expansion slot of the host, and then insert the card into the computer. You must shut down the computer before installing the card. Since cards are sensitive to damage caused by ESD, the following guidelines should be followed when handling cards: Users should touch grounded objects to release static electricity, use a grounded wrist strap, avoid touching card components and pins and connectors, work in a state safe area, and store the card in an anti-static container when not in use. The 1784-PCIC card measures 4.2 x 6.5 inches. The 1784-PCIC card has an RJ-45 connector for connecting programming terminals to ControlNet devices. It also has redundant BNC connectors for ControlNet connectivity.

When connecting programming terminals to 1784-PCIC cards, only 1786-CP cables can be used. The 1784-PCIC card is compatible with 5-volt and 3.3-volt rated PCI slots, 32-bit and 64-bit PCI slots, and PCI-X slots. The power consumption of the card is 3.5 watts. The isolation voltage is 50 volts, and the test can withstand 600 volts for 60 seconds. The communication port on the 1784-PCIC card should use Class 2 wires. The operating temperature range of the card is 0 to 50 degrees Celsius. The recommended temperature range for storage and transport is -40 to 85 degrees Celsius. The 1784-PCIC card is certified by CE, CSA, UR, EEx and C-tick standards.
