2711E-T14C6/E 操作终端 对机器和过程进行集中监控

☆型号：2711E-T14C6/E 操作终端 对机器和过程进行集中监控

【产品详情】

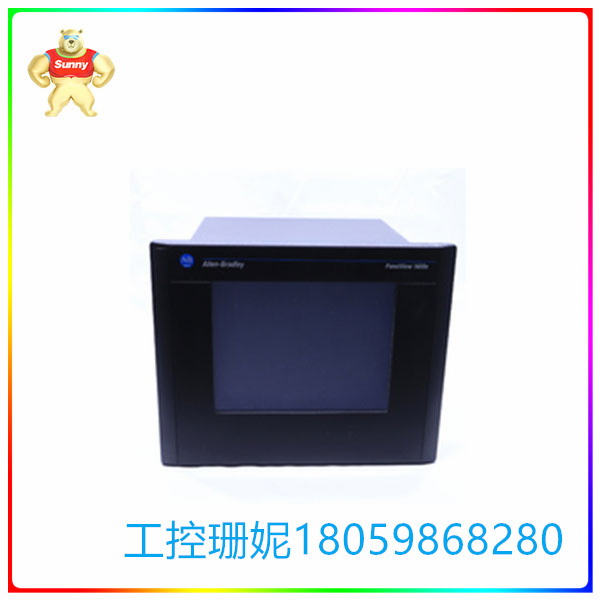

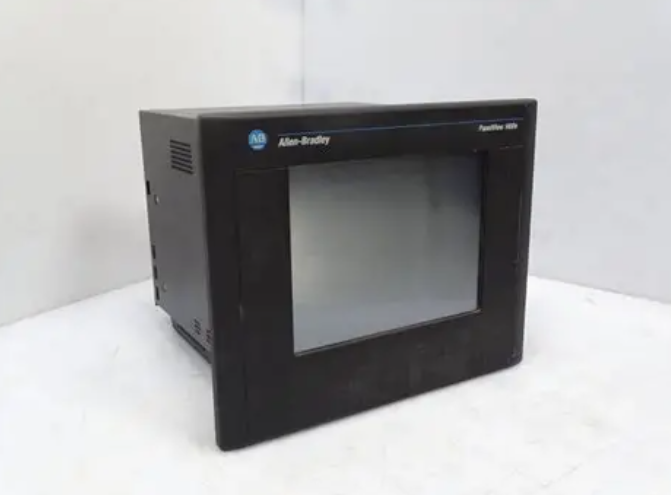

Allen-Bradley 2711E-T14C6 是 PanelView 1400e 操作终端的一部分。这是一款过时的人机界面 （HMI） 设备，可在工厂车间的便利位置对机器和过程进行集中监控。

该操作终端采用坚固耐用的设计，可在广泛的工业应用和行业中安装和使用。作为早期 HMI 的一部分，该操作终端配备了一个 14 英寸阴极射线管 （CRT），显示区域为 247.6 毫米× 185.7 毫米，具有 256 种固定颜色，分辨率为 640 x 480 像素，并集成了防眩光组件，用于改进 HMI 显示屏的视图。

这款 PanelView 1400e 允许操作员通过触摸屏界面进行交互，最小尺寸为 40 × 40 像素的触摸单元，最大触摸单元数为 192 或 16x12 像素。该触摸屏薄膜的额定驱动额定值范围为 2.5 至 3 盎司或 71 至 85 克。它由铸铝制成，带有黑色粉末涂层表圈和 95% 光泽度、硬涂层、耐刮擦聚酯纤维，并经过化学强化玻璃触摸膜。

该操作终端的可用通信接口是Data Highway Plus（DH+）/远程I/O通信端口，支持利用菊花链拓扑的高速通信。该通信接口使用通用通信电缆，即 Allen-Bradley 1771-CD 或 Belden 9463 通信电缆。

2711E-T14C6 的额定最小功耗为 60 瓦，最大功耗为 100 瓦。集成的CMOS电池能够运行10年，用于保留器件的内部实时时钟。

2711E-T14C6 的额定功耗为 60 瓦，最大功耗高达 100 瓦。2711E-T14C6 还具有工厂安装的永久电池，使用寿命为 10 年。2711E-T14C6 具有不同的用户可定义功能键，并带有用于输入数值的键盘。2711E-T14C6 键盘作为预标记单元提供，支持创建按键标签以满足应用需求。

☆型号：2711E-T14C6/E 操作终端 对机器和过程进行集中监控

【英文介绍】

Allen-Bradley 2711E-T14C6 is part of the PanelView 1400e operating terminal. This is an outdated human machine interface (HMI) device that allows centralized monitoring of machines and processes from a convenient location on the factory floor.

The operating terminal features a rugged design and can be installed and used in a wide range of industrial applications and industries. As part of an earlier HMI, this operating terminal is equipped with a 14-inch cathode ray tube (CRT) with a display area of 247.6 mm x 185.7 mm, 256 fixed colors, a resolution of 640 x 480 pixels, and integrated anti-glare components. Used to improve the view of the HMI display.

The PanelView 1400e allows operators to interact via a touch screen interface with a minimum size of 40 × 40 pixel touch units and a maximum number of touch units of 192 or 16x12 pixels. The touch screen film is available in a drive rating range of 2.5 to 3 ounces or 71 to 85 grams. It is made of cast aluminum with a black powder-coated bezel and a 95% gloss, hard-coated, scratch-resistant polyester fiber with a chemically strengthened glass touch film.

The available communication interface for this operating terminal is the Data Highway Plus (DH+)/Remote I/O communication port, which supports high-speed communication using the Daisy chain topology. This communication interface uses a general purpose communication cable, namely Allen-Bradley 1771-CD or Belden 9463 communication cable.

The 2711E-T14C6 is rated for a minimum power consumption of 60 watts and a maximum power consumption of 100 watts. The integrated CMOS battery is capable of operating for 10 years and is used to preserve the device's internal real-time clock.

The 2711E-T14C6 is rated at 60 watts with a maximum power consumption of up to 100 watts. The 2711E-T14C6 also features a factory-installed permanent battery with a 10-year service life. The 2711E-T14C6 has different user-defined function keys and comes with a keyboard for entering values. The 2711E-T14C6 keyboard is provided as a pre-labeled unit and supports the creation of key labels to meet application requirements.
