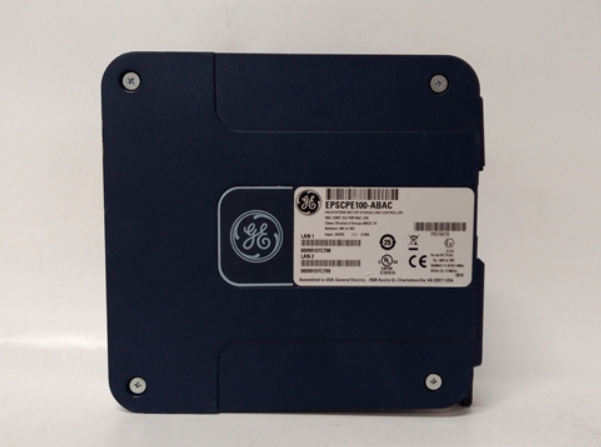

EPSCPE100 增强性能独立控制器 四个以太网端口

☆型号：EPSCPE100 增强性能独立控制器 四个以太网端口

【产品详情】

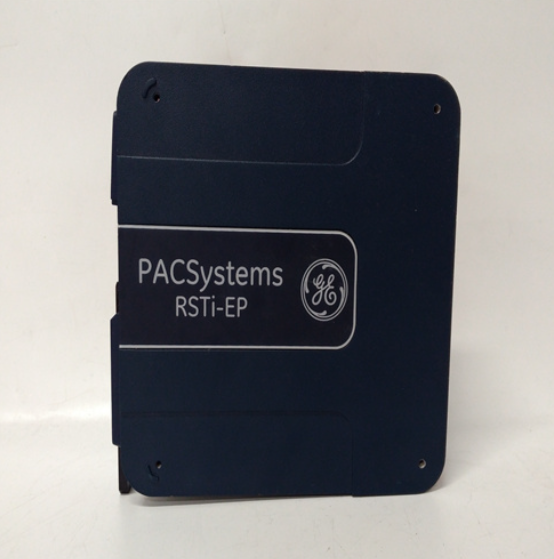

PACSystems* RSTi-EP EPSCPE100是一款增强型1GHz独立可编程控制器，配备1MB用户内存和四个以太网端口，可运行实时确定性控制应用程序。LAN1专用于高速以太网，LAN2由3个交换端口组成，可配置为嵌入式端口

以太网控制器或嵌入式PROFINET控制器，它提供PROFINET功能，只支持简单的操作模式。它是支持分布式I/O的独立PLC。从现在开始，在文档的其余部分，这个控制器将被称为CPE100。

图1:EPSCPE100功能概览

CPE100通过GE的Proficy Machine Edition (PME)软件在以太网上进行编程和配置。它可以控制/处理多达2K的I/O点。

亮点包括:

一个内置的PACSystems RSTi-EP PLC CPU

o用户可以用梯形图、结构化文本、功能框图进行编程。

o包含1mb的可配置数据和程序内存。

o支持自动定位符号变量，可以使用任意数量的用户内存。

o参考表的大小包括离散%I和%Q的2k位，模拟%AI和%AQ的最多2k字。大容量内存(%W)也支持数据交换。

o支持多达512个程序块。最大块大小为128KB。

☆型号：EPSCPE100 增强性能独立控制器 四个以太网端口

【英文介绍】

PACSystems* RSTi-EP EPSCPE100 is an enhanced 1GHz stand-alone programmable controller with 1MB of user memory and four Ethernet ports to run real-time deterministic control applications. LAN1 is dedicated to high-speed Ethernet, and LAN2 consists of 3 switch ports that can be configured as embedded ports

Ethernet controller or embedded PROFINET controller, which provides PROFINET functionality and supports only simple modes of operation. It is a standalone PLC that supports distributed I/O. From now on, in the rest of the document, this controller will be called the CPE100.

Figure 1: Overview of EPSCPE100 functionality

The CPE100 is programmed and configured over Ethernet using GE's Proficy Machine Edition (PME) software. It can control/handle up to 2K I/O points.

Highlights include:

A built-in PACSystems RSTi-EP PLC CPU

o Users can program with ladder diagrams, structured text, and functional block diagrams.

o Contains 1mb of configurable data and program memory.

o Supports automatic positioning of symbol variables and can use any amount of user memory.

o The size of the reference table includes 2k bits for discrete %I and %Q, and up to 2k words for simulated %AI and %AQ. Large memory (%W) also supports data exchange.

o Supports up to 512 blocks. The maximum block size is 128KB.
