2711-T6C8L1 操作终端 通信端口实时监控连接的机器

☆型号：2711-T6C8L1 操作终端 通信端口实时监控连接的机器

【产品详情】

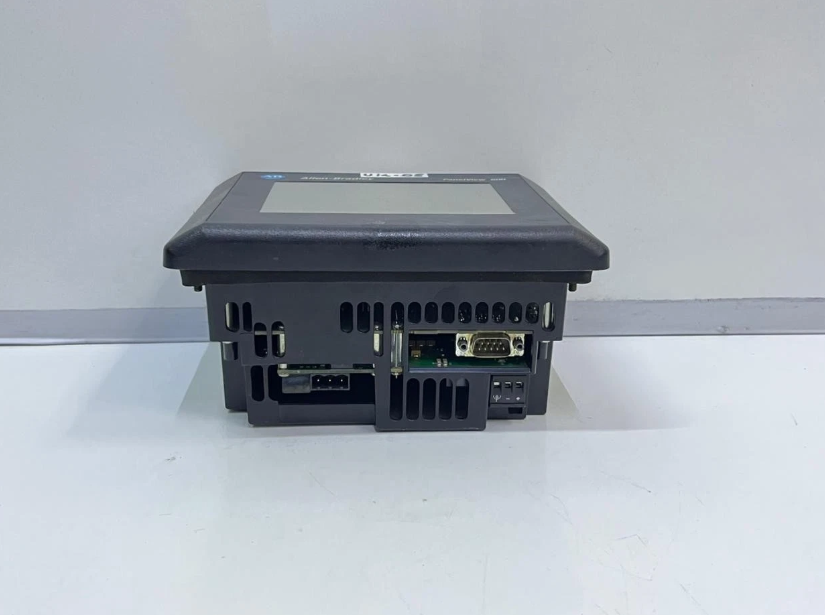

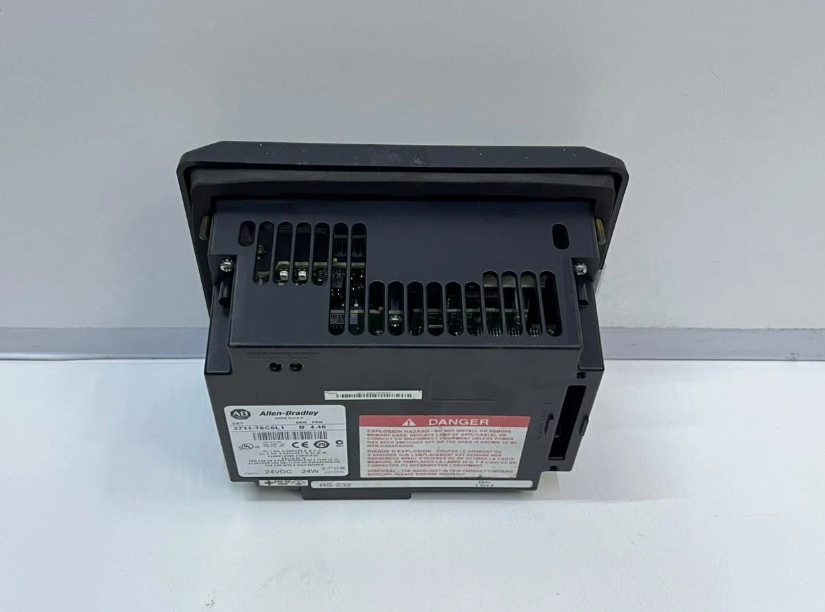

Allen-Bradley T6C8L1 是一款 PanelView 600 操作终端，具有嵌入式特性和功能，使其能够用作人机界面 （HMI），允许通过嵌入式彩色屏幕和触摸操作界面以及内置的 Data Highway Plus （DH+） 通信端口实时监控连接的机器或过程。

2711-T6C8L1 主要采用 6 英寸显示器尺寸。与灰度或单色终端相比，它具有更大的优势，因为该操作终端能够通过颜色编码的动画来描述仪器和设备的状态，这些动画可以是标准或工厂特定的颜色代码。屏幕安装有背光，使用寿命为 50,000 小时，在 25 °C （77 °F） 下运行时半衰期。

Allen-Bradley 2711-T6C8L1 具有模拟电阻式触摸屏接口，共有 128 个触摸单元，单个触摸单元尺寸为 20 x 30 像素。操作员可以直接与屏幕中显示的运行时对象进行交互，与键盘操作的终端相比更加方便。

内置的Data Highway Plus（DH+）通信端口支持多节点远距离通信。它与传统的 PLC5 和 SLC500 控制器以及 MicroLogix 和 CompactLogix 以及控制器兼容，当与适当的通信适配器或包含合作伙伴模块一起安装时。

该操作端子由电源供电，电源电压范围为 18-32VDC，标称值为 24VDC。它的功耗为 17 W （577 BTU/HR），最大功耗为 24 W （1.0A @ 24V DC）。

显示屏宽 4.54 英寸，厚 3.4 英寸，分辨率为 320x240。一个 18-32 伏直流 （DC） 电源为 Allen-Bradley 2711-T6C8L1 装置供电。该单元的存储容量为 240 KB。此外，终端重约 4 磅，尺寸为 14x11x8 英寸。

☆型号：2711-T6C8L1 操作终端 通信端口实时监控连接的机器

【英文介绍】

The Allen-Bradley T6C8L1 is a PanelView 600 operating terminal with embedded features and functions that enable it to be used as a human machine interface (HMI), Allows real-time monitoring of connected machines or processes via an embedded color screen and touch-operated interface, as well as a built-in Data Highway Plus (DH+) communication port.

The 2711-T6C8L1 features a 6-inch display size. It has a greater advantage over grayscale or monochrome terminals in that the operating terminal is able to describe the state of instruments and equipment through color-coded animations that can be standard or factory-specific color codes. The screen is backlit and has a service life of 50,000 hours and a half-life when operating at 25 °C (77 °F).

The Allen-Bradley 2711-T6C8L1 features an analog resistive touch screen interface with a total of 128 touch units, each measuring 20 x 30 pixels. The operator can interact directly with the runtime objects displayed on the screen, which is more convenient than a keyboard-operated terminal.

The built-in Data Highway Plus (DH+) communication port supports multi-node remote communication. It is compatible with traditional PLC5 and SLC500 controllers as well as MicroLogix and CompactLogix and controllers, when installed with appropriate communication adapters or containing partner modules.

The operating terminal is powered by a power supply with a voltage range of 18-32VDC and a nominal value of 24VDC. It has a power consumption of 17 W (577 BTU/HR) and a maximum power consumption of 24 W (1.0A@24V DC).

The display is 4.54 inches wide and 3.4 inches thick, with a 320x240 resolution. An 18-32 volt direct current (DC) power supply powers the Allen-Bradley 2711-T6C8L1 unit. The storage capacity of this unit is 240 KB. In addition, the terminal weighs about 4 pounds and measures 14x11x8 inches.
