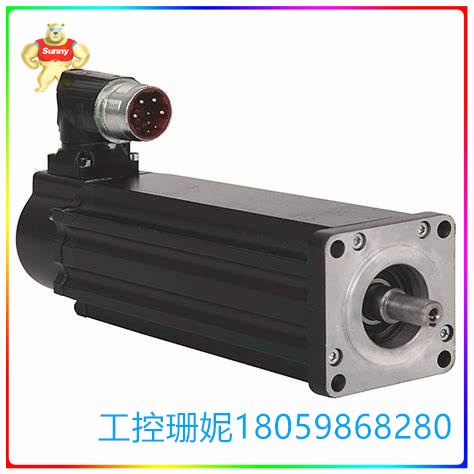

☆型号：VPL-B1002E-PJ12AA 低惯量伺服电机 电机具有 2 个磁铁堆
【产品详情】
VPL-B1002E-PJ12AA 是罗克韦尔自动化的低惯量伺服电机。电机具有 2 个磁铁堆、一个 100 毫米螺栓圆框架和一个键轴。VPL-B1002E-PJ12AA 使用 M1 型单速 Tec DIN 和绝对多圈反馈类型，具有 18 位数字反馈分辨率和 Hiperface DSL 反馈协议。VPL-B1002E-PJ12AA 的速度为 每分钟 3500 转。伺服电机的工作电压为 400 伏交流电。 此外，VPL-B1002E-PJ12AA 的额定输出连续扭矩为 3.39 N-m，能够达到 7.82 N-m 的峰值。Allen-Bradley VPL-B1002E-PJ12AA低惯量旋转伺服电机的连续额定功率为1.12千瓦，转子惯量为7.8E-05千克/平方米。
对于工作温度，VPL-B1002E-PJ12AA 的最低和最高额定工作温度分别为 0 和 40 摄氏度，存储温度校准在 -30 至 40 摄氏度之间。电机重量为3.56公斤，具有持续6毫秒的20G加速度冲击，在2000赫兹的工作频率下具有2.5G的加速度振动。当 VPL-B1002E-PJ12AA 不使用轴封时，其国际防护等级为 IP50，但当使用可选轴封时，国际防护等级为 IP60。IP60 等级还要求使用环境密封的电缆连接器。VPL-B1002E-PJ12AA 使用带有 FF 型安装孔的 IEC 公制安装法兰，并且没有制动机构。VPL-B1002E-PJ12AA 与其他旋转伺服电机一样，与 Kinetix 550 和 5700 伺服驱动器兼容。
☆型号：VPL-B1002E-PJ12AA 低惯量伺服电机 电机具有 2 个磁铁堆
【英文介绍】
The VPL-B1002E-PJ12AA is a low inertia servo motor from Rockwell Automation. The motor has 2 magnet stacks, a 100 mm bolt round frame and a key shaft. The VPL-B1002E-PJ12AA uses the M1 type single-speed Tec DIN and absolute multi-turn feedback type with 18-bit digital feedback resolution and Hiperface DSL feedback protocol. The VPL-B1002E-PJ12AA has a speed of 3,500 revolutions per minute. The servo motor operates at 400 volts AC. In addition, the VPL-B1002E-PJ12AA has a rated output continuous torque of 3.39 N-m, capable of reaching a peak of 7.82 N-m. The Allen-Bradley VPL-B1002E-PJ12AA low inertia rotary servo motor has a continuous power rating of 1.12 kW and a rotor inertia of 7.8E-05 kg/m2.
For operating temperatures, the minimum and maximum rated operating temperatures of the VPL-B1002E-PJ12AA are 0 and 40 degrees Celsius respectively, and the storage temperature is calibrated between -30 and 40 degrees Celsius. The motor weighs 3.56 kg, has a 20G acceleration shock lasting 6 milliseconds and an acceleration vibration of 2.5G at an operating frequency of 2000 Hz. When the VPL-B1002E-PJ12AA does not use the shaft seal, its international protection class is IP50, but when the optional shaft seal is used, the international protection class is IP60. The IP60 rating also requires the use of environmentally sealed cable connectors. The VPL-B1002E-PJ12AA uses an IEC metric mounting flange with FF mounting holes and has no braking mechanism. The VPL-B1002E-PJ12AA, like other rotary servo motors, is compatible with Kinetix 550 and 5700 servo drives.
☆型号：VPL-B1002E-PJ12AA 低惯量伺服电机 电机具有 2 个磁铁堆
