6181P-17TPXPH 集成显示性能计算机 触摸屏显示器

☆型号：6181P-17TPXPH 集成显示性能计算机 触摸屏显示器

【产品详情】

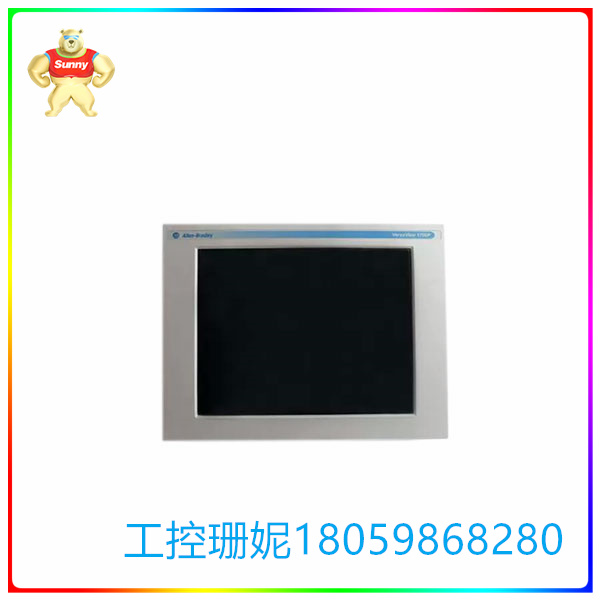

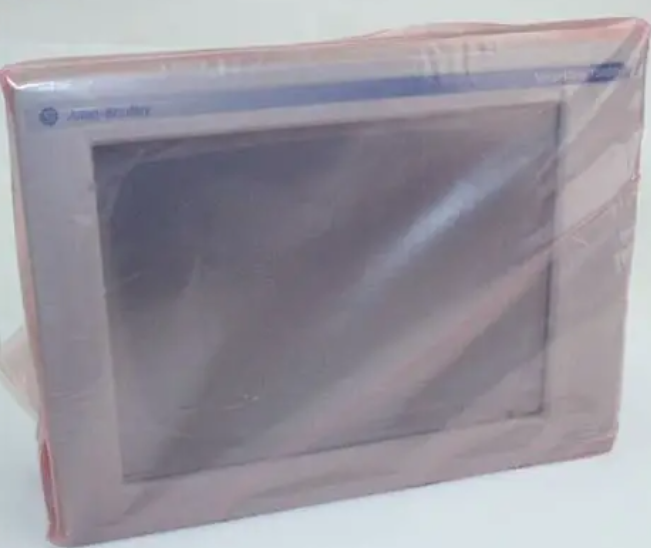

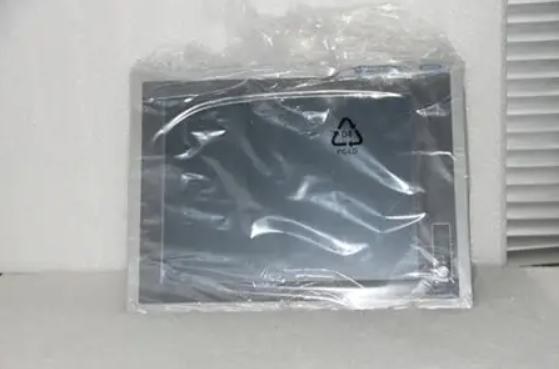

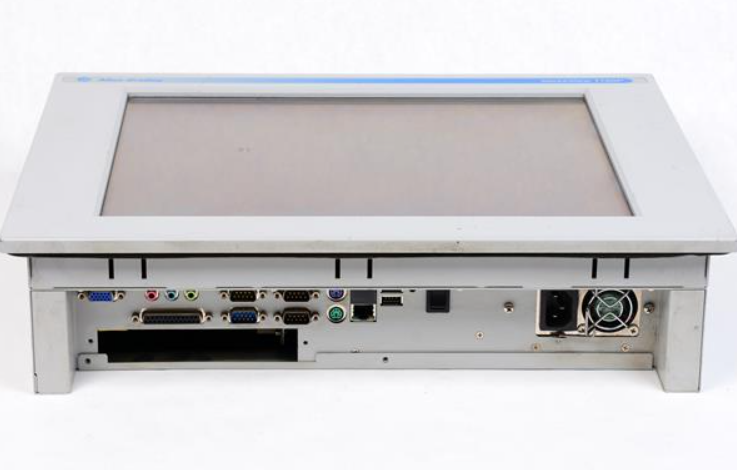

Allen-Bradley 6181P-17TPXPH 是一款 VersaView 1700P 集成显示性能计算机，配备 17 英寸触摸屏显示器。使用的触摸屏是具有电阻防眩光的PCAP触摸屏类型，显示器是有源彩色矩阵薄膜晶体管（TFT）类型。该显示器的原始分辨率为 1284 x 1024 和 24 位颜色。它配备了 Intel Pentium 4 2.0 GHz 处理器和可扩展至 1 GB 的 2 GB DDR RAM。此计算机上的端口包括 1 个并行端口、3 个串行端口、2 个 USB 2.0 端口、2 个用于键盘和鼠标的 PS/2 端口、1 个 10-100 以太网端口、麦克风端口、1 个视频端口以及音频线路输入和输出。它还具有一个半长 PCI 插槽和 1 个用于额外存储的 CompactFlash Type 2 插槽。安装的驱动器是超薄软盘驱动器和超薄 DVD/CD-RW 驱动器。

本机输入电源为90-264V AC，为自动量程，线路频率为47-63Hz。6181P-17TPXPH的工作温度范围为0-50oC，其非冷凝相对湿度为10-90%。它还具有 15 g 的 1/2 正弦波 11 ms 的工作冲击和 1 g 峰值的工作振动（10-500 Hz 的正弦扫描）。这台计算机的尺寸约为 14.02 x 17.80 x 4.32 英寸。请注意，6181P-17TPXPH 计算机是面板安装的。

6181P-17TPXPH 随附一个开孔模板、安装指南、安装夹和支持 CD。它可以安装在污染等级为 2 级、II 类过电压额定值且最大海拔为 6562 英尺的工业环境中。尽量减少工作环境中的电气噪声，以确保触摸屏能够正确响应。

☆型号：6181P-17TPXPH 集成显示性能计算机 触摸屏显示器

【英文介绍】

The Allen-Bradley 6181P-17TPXPH is a VersaView 1700P integrated display performance computer with a 17-inch touchscreen display. The touch screen used is a PCAP touch screen type with resistive anti-glare, and the display is an active color matrix thin film transistor (TFT) type. The display's original resolution is 1284 x 1024 and 24-bit colors. It comes with an Intel Pentium 4 2.0 GHz processor and 2 GB DDR RAM that can scale up to 1 GB. Ports on this computer include 1 parallel port, 3 serial ports, 2 USB 2.0 ports, 2 PS/2 ports for keyboard and mouse, 1 10-100 Ethernet port, microphone port, 1 video port, and audio line input and output. It also has a half-length PCI slot and 1 CompactFlash Type 2 slot for additional storage. The installed drives are ultrathin floppy disk drives and ultrathin DVD/CD-RW drives.

The input power supply of the machine is 90-264V AC, which is an automatic measuring range and the line frequency is 47-63Hz. The operating temperature range of 6181P-17TPXPH is 0-50oC and its non-condensing relative humidity is 10-90%. It also has 15 g 1/2 sine wave operating shock of 11 ms and 1 g peak operating vibration (sinusoidal scan of 10-500 Hz). The computer measures approximately 14.02 x 17.80 x 4.32 inches. Please note that the 6181P-17TPXPH computer is panel mounted.

The 6181P-17TPXPH comes with a perforated template, installation guide, installation clip, and support CD. It can be installed in industrial environments with pollution Class 2, Class II overvoltage ratings and a maximum altitude of 6,562 feet. Minimize electrical noise in the working environment to ensure that the touch screen responds correctly.

☆型号：6181P-17TPXPH 集成显示性能计算机 触摸屏显示器
