20BD8P0A3AYNAND0 变频驱动器 可调频率交流变频器

☆型号：20BD8P0A3AYNAND0  变频驱动器 可调频率交流变频器

【产品详情】

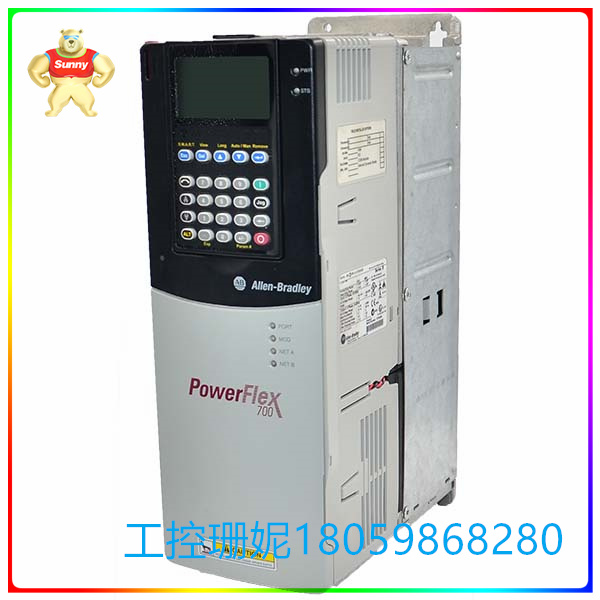

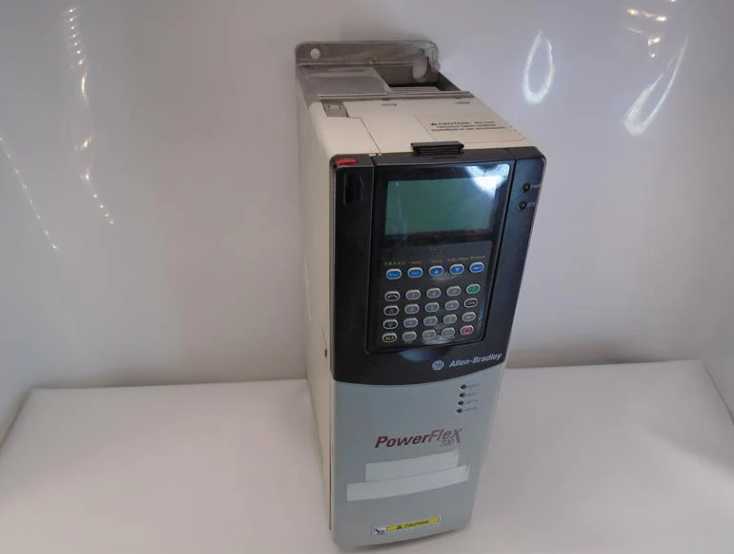

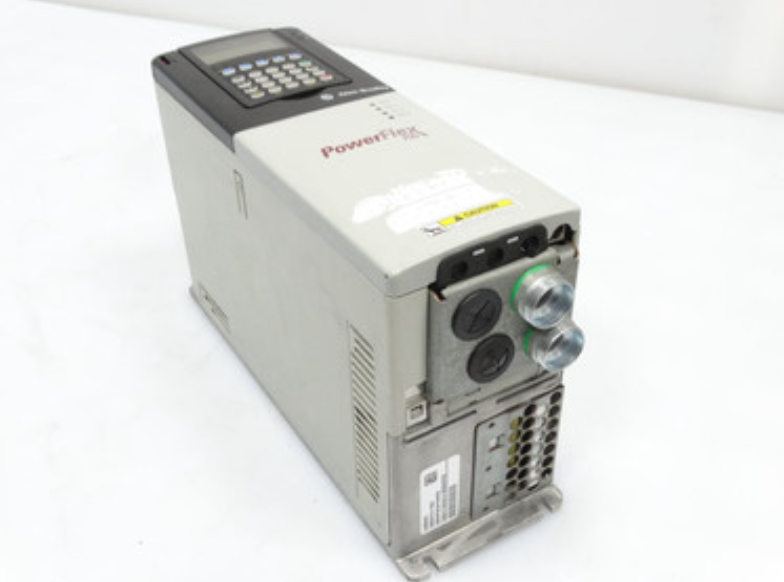

Allen-Bradley 20BD8P0A3AYNANN0 PowerFlex 700 可调频率交流变频器是一款数字 PWM 交流变频器，旨在为三相交流感应电机提供卓越的控制，适用于从简单的速度控制到苛刻的转矩控制的各种应用。它具有非常高精度的电机控制功能，使用脉宽调制信号提供精确和重复的控制，无需任何猜测，并且它被编程为每赫兹伏特控制，通过使用滑差补偿提供出色的 0.5% 开环速度调节。20BD8P0A3AYNANN0 的额定电压为 480 伏交流电，可接受的输入范围为 432 伏交流电至 528 伏交流电，标称输入电流为 8.0 安培，输出功率为 5.0 马力。它在整个速度范围内具有 97.5% 的额定效率和 0.98 的位移功率因数，并且可以提供高达 200,000 安培（对称）的最大短路额定值（实际额定值取决于推荐使用的保险丝和断路器）。

20BD8P0A3AYNANN0 具有内部制动晶体管选项，可提供在制动过程中转换扭矩产生能量的经济高效的方法，并带有 EMC 线路滤波选项，旨在满足 CE 要求，并且与其他驱动器相比，它占用的面板空间更少。该驱动器具有LCD操作界面模块，带有类似数字的编程键和多语言启动文本，可轻松配置、计量和排除驱动器故障，还用于将EEPROM存储的（用户设置）应用参数与驱动器链接。20BD8P0A3AYNANN0 具有多个停止选项，可根据应用需求进行编程，并提供双加速和减速时间，可在 0 至 3600 秒之间独立编程。它具有 NEMA Type 1 环境外壳，适用于零堆叠和室内/室外安装，最高额定温度为 50 摄氏度。20BD8P0A3AYNANN0 的平均驱动重量为 11.5 磅，总尺寸为 4.3 x 13.2 x 7.8 英寸，并通过了 KCC、c-UL-us、RCM、CE 和 ABS 认证。

☆型号：20BD8P0A3AYNAND0  变频驱动器 可调频率交流变频器

【英文介绍】

Allen-Bradley 20BD8P0A3AYNANN0 PowerFlex 700 Adjustable Frequency AC converter is a digital PWM AC converter designed to provide superior control for three-phase AC induction motors for applications ranging from simple speed control to demanding torque control. It has a very high-precision motor control function that provides precise and repetitive control without any guesswork using pulse width modulated signals, and it is programmed to control per Hertz volt, providing excellent 0.5% open-loop speed regulation by using slip compensation. The 20BD8P0A3AYNANN0 is rated at 480 volts AC, with an acceptable input range of 432 volts AC to 528 volts AC, a nominal input current of 8.0 amps and an output power of 5.0 horsepower. It has a rated efficiency of 97.5% and a displacement power factor of 0.98 over the entire speed range, and can provide a maximum short-circuit rating of up to 200,000 amps (symmetric) (actual rating depends on the recommended fuse and circuit breaker).

The 20BD8P0A3AYNANN0 has an internal brake transistor option that provides a cost-effective way to convert torque to generate energy during braking, and comes with an EMC line filtering option designed to meet CE requirements and take up less panel space than other drives. The drive features an LCD operating interface module with numeral-like programming keys and multilingual startup text for easy configuration, metering, and troubleshooting of the drive, as well as for linking EEPROM stored (user-set) application parameters to the drive. The 20BD8P0A3AYNANN0 features multiple stop options that can be programmed according to application needs and offers dual acceleration and deceleration times that can be programmed independently between 0 and 3600 seconds. It features a NEMA Type 1 environmental housing for zero stacking and indoor/outdoor installation with a maximum temperature rating of 50 degrees Celsius. The 20BD8P0A3AYNANN0 has an average drive weight of 11.5 pounds, total dimensions of 4.3 x 13.2 x 7.8 inches, and is KCC, c-UL-us, RCM, CE, and ABS certified.

☆型号：20BD8P0A3AYNAND0  变频驱动器 可调频率交流变频器
