2711P-T7C15D1 终端具有 6.5 英寸触摸屏 具有 18 位彩色图形

☆型号：2711P-T7C15D1 终端具有 6.5 英寸触摸屏 具有 18 位彩色图形

【产品详情】

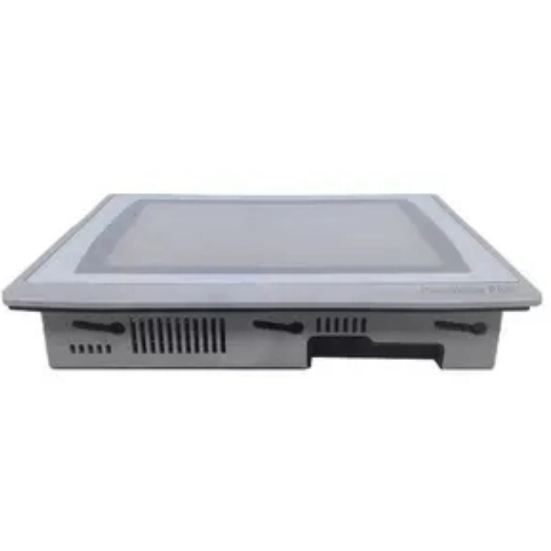

Allen-Bradley 2711P-T7C15D1 是 PanelView™ Plus 6 – 700 终端的一个版本。该 。显示类型为彩色有源矩阵 TFT，分辨率为 640 x 480，具有 18 位彩色图形。显示屏的宽度为 5.2 x 3.9 英寸。该显示器具有可更换的 CCFL 背光。该端子的亮度为 300 cd/m2 （尼特）。该端子的重量约为 1.7 公斤。该终端配备 64 MB 闪存、512 MB RAM 和 79 MB 可用用户内存。Allen-Bradley 2711P-T7C15D1尺寸为 179 x 246 x 55 mm。该终端还有一个用于外部存储的 SD 卡插槽。该终端有一个以太网端口，用于连接到互联网。该端子的输入电压为 18-32V DC。功耗最大为 70 W，典型功耗为 39 W。

Allen-Bradley 2711P-T7C15D1 有一个可拆卸的电池。安装和取出电池时，请务必先断开电源。有关拆卸和安装电池的完整步骤，请参阅手册。将电池存放在阴凉干燥的地方。电池存储的推荐温度为 25 °C，相对湿度为 40 – 60%。切勿将电池存放在 60 °C 的温度下超过三天，以免发生漏液。

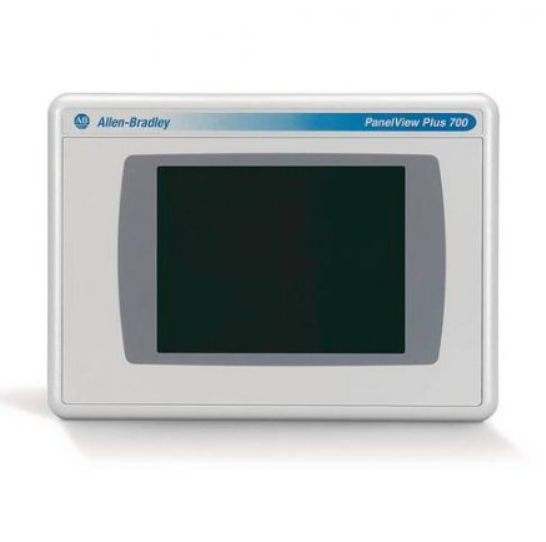

已停产的 Allen Bradley Panelview Plus 700 2711P-T7C15D1 是一款操作终端，使用户能够与机器进行交互。该HMI具有6.5英寸彩色显示屏。用户能够使用触摸屏控制HMI输入信息和数据。如果适用，本机的内部背光更换部件号为 2711P-RL7C2。ControlNet 端子可以连接到 ControlNet 网络上的单个或多个控制器。它们支持对控制器数据的计划内和计划外访问，它们还支持冗余布线。ControlNet 终端在与 ControlLogix 系统通信时支持符号 CIP 寻址。每个终端都有一个网络访问端口，用于对 ControlNet 网络进行本地访问。

☆型号：2711P-T7C15D1 终端具有 6.5 英寸触摸屏 具有 18 位彩色图形

【英文介绍】

Allen-Bradley 2711P-T7C15D1 is a version of the PanelView™ Plus 6-700 terminal. The terminal has a 6.5-inch touch screen. The display type is color Active Matrix TFT with a resolution of 640 x 480 and an 18-bit color graphic. The width of the display is 5.2 x 3.9 inches. The display has a replaceable CCFL backlight. The brightness of this terminal is 300 cd/m2 (nits). The weight of the terminal is approximately 1.7 kg. The terminal comes with 64 MB of flash memory, 512 MB of RAM, and 79 MB of available user memory. The Allen-Bradley 2711P-T7C15D1 measures 179 x 246 x 55 mm. The terminal also has an SD card slot for external storage. The terminal has an Ethernet port for connecting to the Internet. The input voltage of this terminal is 18-32V DC. Maximum power consumption is 70 W, typical power consumption is 39 W.

The Allen-Bradley 2711P-T7C15D1 has a removable battery. Be sure to disconnect the power supply before installing and removing the battery. Refer to the manual for complete steps to remove and install the battery. Store batteries in a cool, dry place. The recommended temperature for battery storage is 25 °C and the relative humidity is 40-60%. Do not store the battery at a temperature of 60 °C for more than three days to avoid leakage.

The discontinued Allen Bradley Panelview Plus 700 2711P-T7C15D1 was an operating terminal that enabled users to interact with the machine. The HMI features a 6.5-inch color display. Users can control HMI input information and data using the touch screen. If applicable, the unit's internal backlight replacement part number is 2711P-RL7C2. ControlNet terminals can be connected to a single or multiple controllers on the ControlNet network. They support both planned and unplanned access to controller data, and they also support redundant wiring. ControlNet terminals support symbolic CIP addressing when communicating with ControlLogix systems. Each terminal has a network access port for local access to the ControlNet network.

☆型号：2711P-T7C15D1 终端具有 6.5 英寸触摸屏 具有 18 位彩色图形
