22A-D2P3N104 可调频率交流变频器 三相风冷交流变频器

☆型号：22A-D2P3N104 可调频率交流变频器 三相风冷交流变频器

【产品详情】

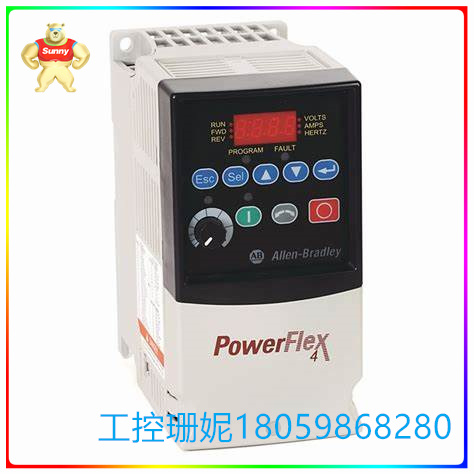

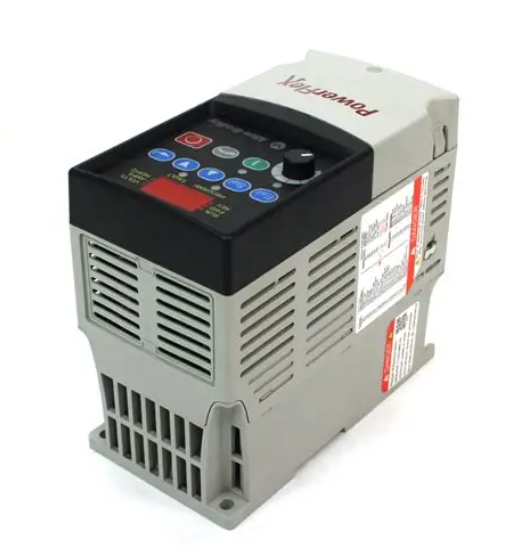

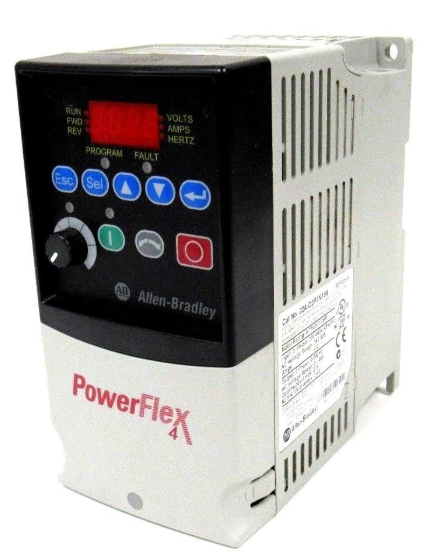

Allen-Bradley 22A-D2P3N104 是一款PowerFlex 4 可调频率交流变频器。该变频器是三相风冷交流变频器，具有 A 型框架，没有符合 CE 标准的过滤器。它确实有一个用于输入的集成键盘和一个带有固定端子连接的 LED 显示屏。该驱动器中还存在一个内置的 RS-485 通信端口。

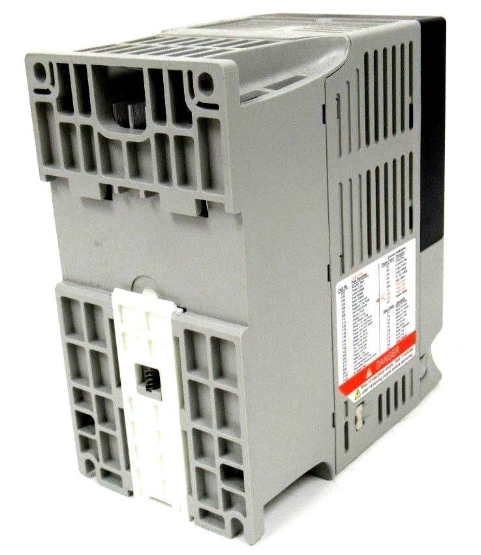

22A-D2P3N104 驱动器仅支持面板安装，具有 IP20 和开放式外壳防护等级。该驱动器的近似尺寸为 5.98 x 3.15 x 5.35 英寸。输入为 22A-D2P3N104 342-528 伏交流电的电源电压范围，输出为 0-460VAC，3 相。其线路频率为48-63赫兹，输出功率为1HP或0.75kW，功率因数为0.95。该驱动器还具有 30 伏直流电或 125 至 240 伏交流电时的电阻额定值和 0.5A、30 伏直流电或 125 至 240 伏交流电时的电感额定值，以及 2.3A 的额定电流。

22A-D2P3N104 驱动器的最大工作高度为 1000 米（在任何更高的高度，它都会开始降额），存储温度为 -40 至 85 摄氏度。其非冷凝相对湿度为 0 至 95%，11 毫米的运行冲击为 15g 峰值，5 至 2000 赫兹时的工作振动为 1g 峰值。22A-D2P3N104 驱动器具有集成的 RS-485 通信功能，并与 PC 工具兼容，可协助监控、故障排除和编程。此类 PC 工具包括 Drive Explorer 和 Drive Tool SP。 22A-D2P3N104 采用节省空间的设计，具有强大的电机速度，是机器级速度控制的理想选择。

22A-D2P3N104 具有应用多功能性和易用性，可满足全球 OEM 的需求。这款 PowerFlex 4 变频器配备了无传感器矢量性能，使变频器能够自动提供自动升压和滑移补偿。凭借这一特性，22A-D2P3N104 还能够在驱动器的速度范围内提供出色的速度调节和高扭矩水平，即使在负载增加的情况下也是如此。

该变频器是三相、380-480VAC、48-63 Hz 变频变频器 （VFD），主要用于调制或改变工业交流电机的速度，用于调制速度和转矩应用。

22A-D2P3N104是一款支持无传感器矢量控制的驱动器。使用无传感器矢量，可以调节速度，并且扭矩输出可以随驱动器的运行速度而变化。这与电梯、起重机和其他类似工业应用等不同起重载荷的应用兼容。

☆型号：22A-D2P3N104 可调频率交流变频器 三相风冷交流变频器

【英文介绍】

The Allen-Bradley 22A-D2P3N104 is a PowerFlex 4 adjustable frequency AC converter. The inverter is A three-phase air-cooled AC inverter with a type A frame and no CE compliant filter. It does have an integrated keyboard for input and an LED display with fixed terminal connections. There is also a built-in RS-485 communication port in the drive.

The 22A-D2P3N104 driver is panel mounted only and has IP20 and open housing protection grades. The approximate size of the drive is 5.98 x 3.15 x 5.35 inches. Input is 22A-D2P3N104 Supply voltage range of 342-528 volts AC, output is 0-460VAC, 3 phases. Its line frequency is 48-63 Hz, its output power is 1HP or 0.75kW, and its power factor is 0.95. The driver also has A resistance rating at 30 volts DC or 125 to 240 volts AC and an inductance rating at 0.5A, 30 volts DC or 125 to 240 volts AC, as well as a current rating of 2.3A.

The 22A-D2P3N104 drive has a maximum operating height of 1000 meters (at any higher height, it begins to derate) and a storage temperature of -40 to 85 degrees Celsius. It has a non-condensing relative humidity of 0 to 95%, a peak operating shock of 15g at 11 mm and a peak operating vibration of 1g at 5 to 2000 Hz. The 22A-D2P3N104 drive features integrated RS-485 communications and is compatible with PC tools to assist with monitoring, troubleshooting, and programming. Such PC tools include Drive Explorer and Drive Tool SP. The 22A-D2P3N104 features a space-saving design with powerful motor speeds, making it ideal for machine-level speed control.

The 22A-D2P3N104 offers application versatility and ease of use to meet the needs of Oems worldwide. This PowerFlex 4 inverter is equipped with sensorless vector performance, enabling the inverter to automatically provide automatic boost and slip compensation. With this feature, the 22A-D2P3N104 is also able to provide excellent speed regulation and high torque levels across the drive's speed range, even at increased loads.

The inverter is a three-phase, 380-480VAC, 48-63 Hz variable frequency converter (VFD), which is mainly used to modulate or change the speed of industrial AC motors for modulation speed and torque applications.

The 22A-D2P3N104 is a driver that supports sensorless vector control. With sensorless vectors, the speed can be adjusted, and the torque output can vary with the operating speed of the drive. This is compatible with applications with different lifting loads such as elevators, cranes and other similar industrial applications.
