20AC030A0AYNANC0 仅支持铜线进行输入和输出接线

☆型号：20AC030A0AYNANC0 仅支持铜线进行输入和输出接线

【产品详情】

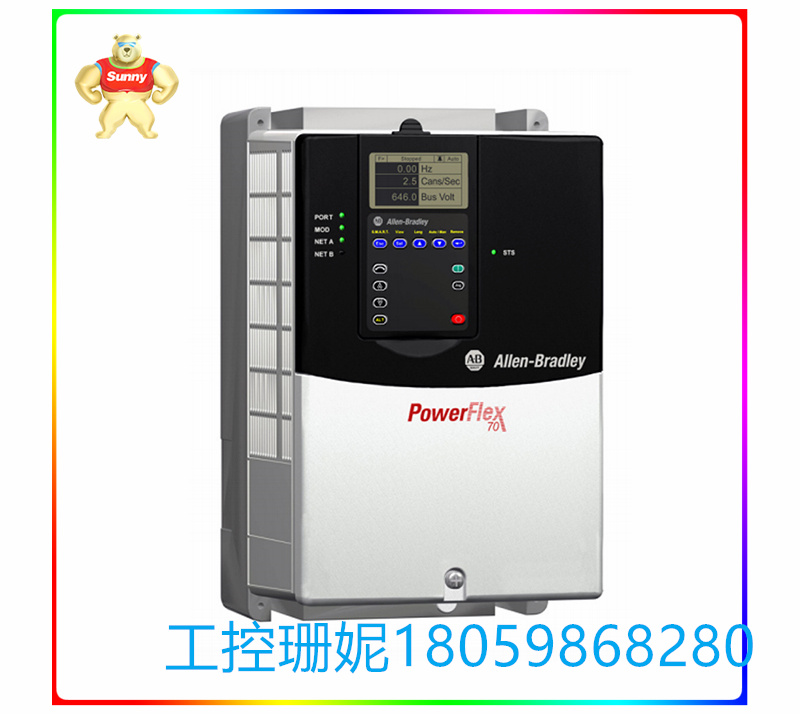

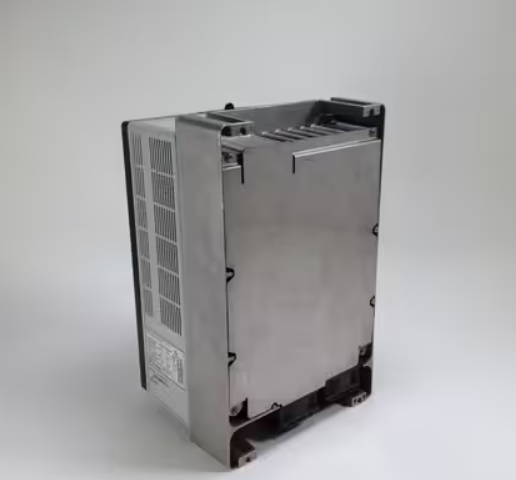

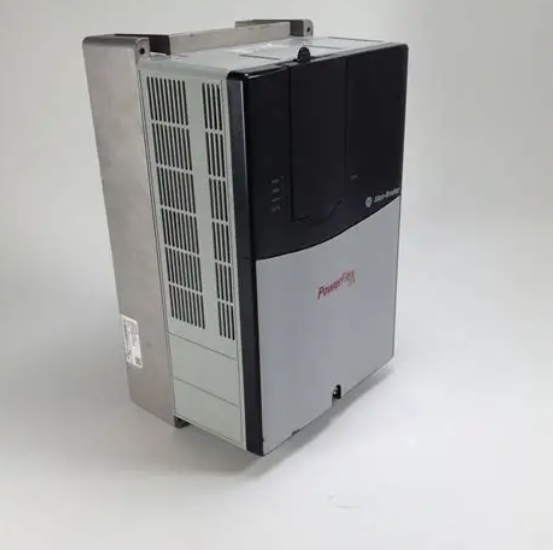

Allen-Bradley/Rockwell Automation 20AC030A0AYNANC0 是一款用于工业车间驱动电机的 PowerFlex 70 变频器。在驱动器与电机连接后，在电机与应用连接之前，应确认电机旋转的方向，以确保电机处于前进状态。20AC030A0AYNANC0 的额定电流为 30 安培。该驱动器可在 380 伏交流电和 400 伏交流电之间的标称电压下运行。20AC030A0AYNANC0 的视在功率上限为 15 千瓦。该驱动器可用于驱动额定马力为 20 马力的电机。

与其他 PowerFlex 70 变频器一样，Allen-Bradley 20AC030A0AYNANC0 仅支持铜线进行输入和输出接线。除其他外，接线应适应 75 摄氏度的最高温度。电线还应具有 600 伏的最小电压绝缘。为了尽量减少信号干扰，控制线和信号线与电源线之间的间距必须为 1 英尺。请注意，带有“common”或“-”标签的输入和输出端子旨在克服共模干扰，因此不应接地。如果它们以地为基准，则它们可能是信号中的噪声源。此外，为了最大限度地降低 20AC030A0AYNANC0 输入源的灵敏度，必须使用速度命令参数。超灵敏的输入源能够导致电机方向或速度发生不可预测的变化。20AC030A0AYNANC0 的最高工作温度为 50 摄氏度，最低工作温度为 0 摄氏度。

☆型号：20AC030A0AYNANC0 仅支持铜线进行输入和输出接线

【英文介绍】

Allen-Bradley/Rockwell Automation 20AC030A0AYNANC0 is a PowerFlex 70 inverter for driving motors in industrial workshops. After the driver is connected to the motor, and before the motor is connected to the application, the direction of the motor rotation should be confirmed to ensure that the motor is in a forward state. The rated current of 20AC030A0AYNANC0 is 30 amps. The drive can operate at nominal voltages between 380 volts AC and 400 volts AC. The maximum apparent power of 20AC030A0AYNANC0 is 15 kW. The drive can be used to drive motors rated at 20 HP.

Like other PowerFlex 70 inverters, Allen-Bradley 20AC030A0AYNANC0 supports only copper wire for input and output wiring. Among other things, the wiring shall be adapted to a maximum temperature of 75 degrees Celsius. The wire should also have a minimum voltage insulation of 600 volts. To minimize signal interference, the distance between the control and signal lines and the power lines must be 1 foot. Note that input and output terminals labeled "common" or "-" are designed to overcome common mode interference and should not be grounded. If they are ground based, they may be the source of noise in the signal. In addition, to minimize the sensitivity of the 20AC030A0AYNANC0 input source, the speed command parameter must be used. Ultra-sensitive input sources can cause unpredictable changes in motor direction or speed. The maximum working temperature of 20AC030A0AYNANC0 is 50 degrees Celsius and the minimum working temperature is 0 degrees Celsius.

☆型号：20AC030A0AYNANC0 仅支持铜线进行输入和输出接线
