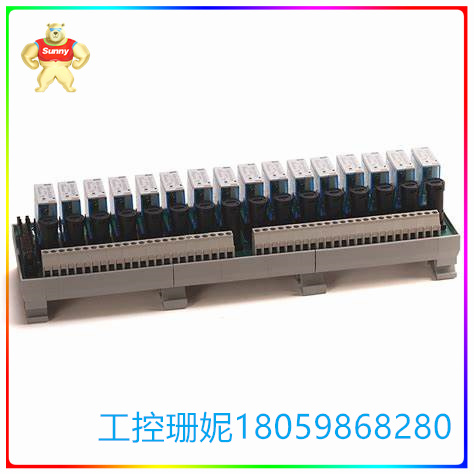

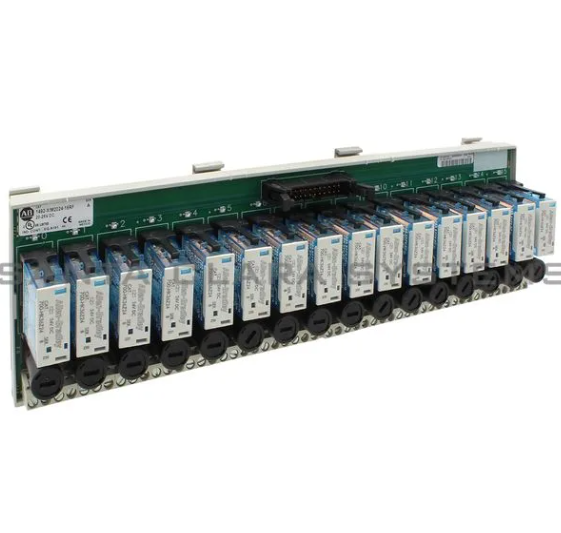

1492-XIM24-16RF 扩展器模块 可编程控制器接线系统

☆型号：1492-XIM24-16RF 扩展器模块 可编程控制器接线系统

【产品详情】

1492-XIM24-16RF 的技术参数

品牌 Allen-Bradley / 罗克韦尔自动化

系列 1492 布线系统

零件编号 ¥1492-XIM24-16射频

产品类型 扩展器模块

继 电器 16

Allen-Bradley 1492-XIM24-16RF 模块是一个扩展器模块，带有 16 个带熔断器的 24 伏直流额定继电器。1492-XIM24-16RF 模块是 Bulletin 1492 产品系列的一部分，该系列包括数字/模拟可编程控制器接线系统。1492-XIM24-16RF 模块的机械规格包括 933 克重量和 11.05 x 3.27 x 2.74 英寸的尺寸。环境规格包括 0 至 60 摄氏度的工作温度范围和 5% 至 95% 的相对湿度。1492-XIM24-16RF 模块符合多项标准，包括 CE、cULus 和 FM class 1 Div 2 Group A、B、C 和 D 标准。模块的额定温度为 T3C 或最高 60 摄氏度。性能规格包括 600 伏峰值重复电压、2 毫安指示电流和 20 至 26 伏直流电压范围。

继电器扩展器模块（如 1492-XIM24-16RF 模块）旨在提高要求输出触点额定值大于 2 安培的用户应用的效率。为了模块正常运行，不应超过模块的额定电流和电压。1492-XIM24-16RF 模块必须与 24 伏直流继电器主站一起使用。模块上的 LED 提供输出开/关指示。Bulletin 1492 产品（如 1492-XIM24-16RF 模块）与 Allen-Bradley 的许多可编程控制器兼容，包括 Bulletin 1756 ControlLogix、1771 PLC-5、1769 CompactLogix 和 1746 SLC 600 控制器。安装 1492-XIM24-16RF 模块时，需要 DIN #3 导轨。与现场布线相关的信息包含在每个模块随附的印刷不干胶标签卡上。1492 系列产品的主要优点是缩短了布线时间，加快了系统部署速度。

☆型号：1492-XIM24-16RF 扩展器模块 可编程控制器接线系统

【英文介绍】

Technical parameters of 1492-XIM24-16RF

Brand Allen-Bradley/Rockwell Automation

Series 1492 wiring system

Part Number ¥1492-XIM24-16 RF

Product type extender module

Relay 16

The Allen-Bradley 1492-XIM24-16RF module is an expander module with 16 24 volt DC rated relays with fuses. The 1492-XIM24-16RF module is part of the Bulletin 1492 product family, which includes digital/analog programmable controller wiring systems. The mechanical specifications of the 1492-XIM24-16RF module include a weight of 933 grams and dimensions of 11.05 x 3.27 x 2.74 inches. Environmental specifications include an operating temperature range of 0 to 60 degrees Celsius and relative humidity of 5 to 95 percent. The 1492-XIM24-16RF module complies with several standards, including CE, cULus and FM class 1 Div 2 Group A, B, C and D standards. Modules are rated for temperature T3C or up to 60 degrees Celsius. Performance specifications include 600 V peak repeat voltage, 2 MA indicated current, and 20 to 26 V DC voltage range.

Relay extender modules, such as the 1492-XIM24-16RF module, are designed to increase efficiency in user applications that require output contact ratings greater than 2 amps. For the normal operation of the module, the rated current and voltage of the module should not be exceeded. The 1492-XIM24-16RF module must be used with the 24-volt DC relay master station. The LED on the module provides an output on/off indication. Bulletin 1492 products, such as the 1492-XIM24-16RF module, are compatible with many of Allen-Bradley's programmable controllers, Includes Bulletin 1756 ControlLogix, 1771 PLC-5, 1769 CompactLogix, and 1746 SLC 600 controllers. When installing the 1492-XIM24-16RF module, a DIN #3 rail is required. Information related to field wiring is included on the printed self-adhesive label card that comes with each module. The main advantage of the 1492 series is reduced wiring time and faster system deployment.
