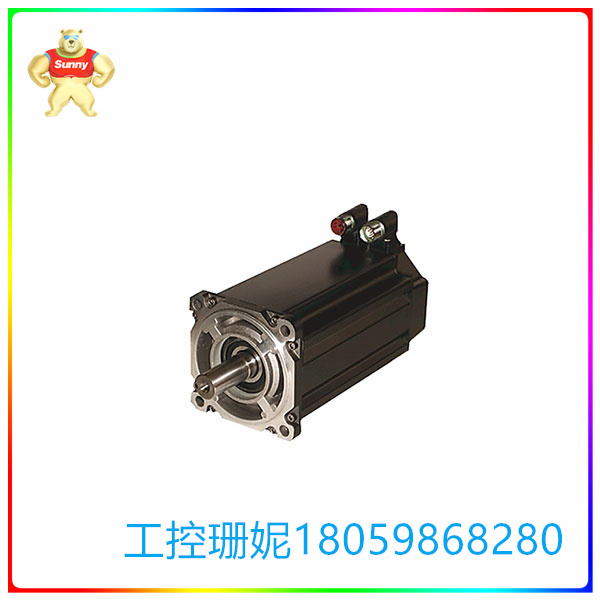

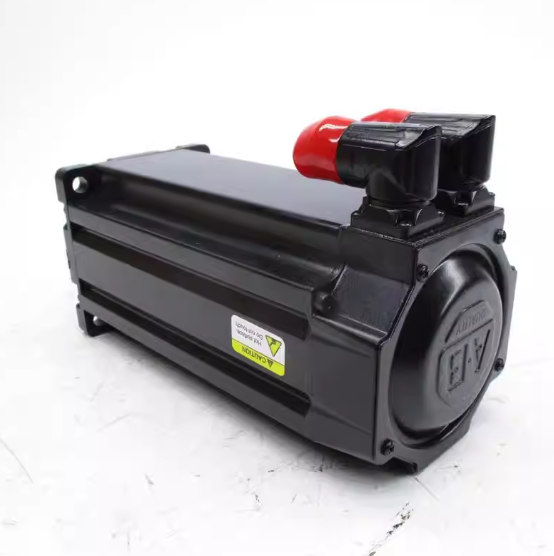

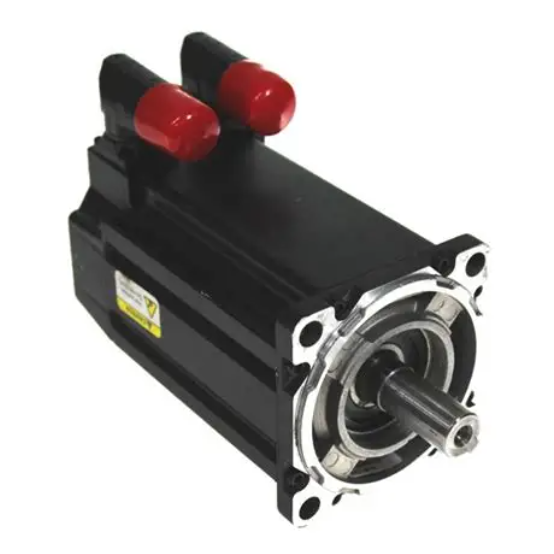

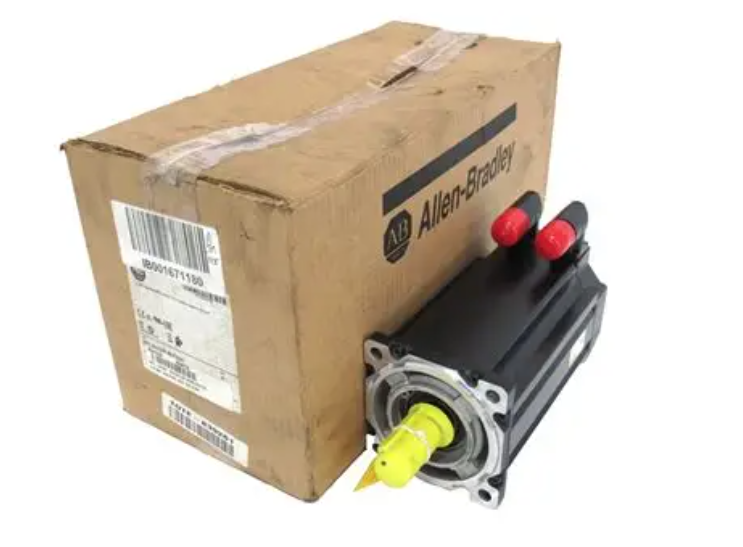

MPL-B4530F-MJ22AA 低惯量旋转伺服电机 460伏交流输入电压

☆型号：MPL-B4530F-MJ22AA 低惯量旋转伺服电机 460伏交流输入电压

【产品详情】

制造者 罗克韦尔自动化

品牌 艾伦-布拉德利

零件号/目录号 MPL-B4530F-MJ22AA型

系列 优质永磁旋转伺服电机

系列类型 低惯量

电压等级 400 伏交流电

框架尺寸 130 毫米

磁性堆栈长度 3英寸

MPL-B4530F-MJ22AA伺服电机是由Allen-Bradley制造的MP系列低惯量旋转伺服电机。其功率规格为460伏交流输入电压、2.1千瓦输出功率和7安培连续失速电流，其速度规格为每分钟3000转（rpm），失速扭矩为8.25N-m，0.00040kg-m2。它配备了一个多圈高分辨率编码器，可在 4096 圈内提供绝对定位反馈。编码器的电磁设计消除了使用电池的需要，编码器类型允许该伺服电机用作 Allen-Bradley Kinetix 驱动器安全关闭功能的组件。

MPL-B4530F-MJ22AA伺服电机作为一款MP系列旋转伺服电机，搭载了智能电机技术，在系统开启时，通过通信链路将伺服电机的身份报告给系统，从而保留了其身份，最大限度地减少了手动调谐的需要。MPL-B4530F-MJ22AA 伺服电机随附钢轴键，可在电机轴与皮带轮或联轴器之间提供安全、刚性的连接。安装或拆卸安装在轴上的设备时，请使用车轮拉拔器而不是用锤子敲击设备，以免损坏。MPL-B4530F-MJ22AA 伺服电机非常适合用于需要更小电机尺寸、更高扭矩性能和更高加速度的运动系统。为防止长时间使用 MPL-B4530F-MJ22AA 伺服电机时可能因过热而导致性能下降和误跳闸，其绕组绝缘材料旨在提供足够的传热和热管理。

☆型号：MPL-B4530F-MJ22AA 低惯量旋转伺服电机 460伏交流输入电压

【英文介绍】

Manufacturer Rockwell Automation

Brand Allen Bradley

Part number/Catalog number MPL-B4530F-MJ22AA Model

Series high quality permanent magnet rotary servo motor

Series type low inertia

Voltage class 400 volts AC

Frame size 130 mm

Magnetic stack length 3 inches

The MPL-B4530F-MJ22AA servo motor is an MP series of low inertia rotary servo motors manufactured by Allen-Bradley. Its power specification is 460 volts AC input voltage, 2.1 kW output power and 7 amps continuous stall current, its speed specification is 3000 revolutions per minute (rpm), stall torque is 8.25N-m, 0.00040kg-m2. It is equipped with a multi-turn high-resolution encoder that provides absolute positioning feedback within 4096 turns. The electromagnetic design of the encoder eliminates the need to use a battery, and the encoder type allows this servo motor to be used as a component for the safe shutdown function of the Allen-Bradley Kinetix drive.

The McL-b4530f-mj22aa servo motor is an MP series rotary servo motor equipped with intelligent motor technology that reports the identity of the servo motor to the system via a communication link when the system is turned on, thereby preserving its identity and minimizing the need for manual tuning. The MPL-B4530F-MJ22AA servo motor comes with a steel shaft key that provides a secure, rigid connection between the motor shaft and the pulley or coupling. When installing or removing equipment mounted on the shaft, use a wheel puller instead of hitting the equipment with a hammer to avoid damage. The MPL-B4530F-MJ22AA servo motor is ideal for use in motion systems requiring smaller motor sizes, higher torque performance and higher acceleration. To prevent performance degradation and false tripping that may result from overheating during prolonged use of the MPL-B4530F-MJ22AA servo motor, the winding insulation is designed to provide adequate heat transfer and thermal management.

☆型号：MPL-B4530F-MJ22AA 低惯量旋转伺服电机 460伏交流输入电压
