MPL-B660F-SJ22AA 永磁旋转伺服电机 单圈高分辨率编码器

☆型号：MPL-B660F-SJ22AA 永磁旋转伺服电机 单圈高分辨率编码器

【产品详情】

MPL-B660F-SJ22AA伺服电机是Allen-Bradley制造的交流伺服电机，用于控制伺服驱动控制系统中机器零部件的转速和位置。该无刷伺服电机在输入端接受 400 伏交流信号，将其转换为扭矩和速度，并传递到连接到其轴上的控制对象。Allen-Bradley MPL-B660F-SJ22AA 伺服电机提供 3000 rpm 的最大速度和 6.1 千瓦的功率。与该伺服电机兼容的伺服驱动器包括 Allen-Bradley/Rockwell Automation Ultra 系列交流伺服驱动器和 Kinetix 系列交流伺服驱动器。MPL-B660F-SJ22AA伺服电机采用优质的绕组绝缘材料，实现平衡的热管理和传热。尽管该设备外壳可以达到 100 摄氏度以上，但在提供适当的气流的情况下，它可以工作而不会因过热而停机。

Allen-Bradley MPL-B660F-SJ22AA 伺服电机采用 215 毫米框架，带有单圈高分辨率编码器。该装置的转子惯量为0.0058 kg-m2，连续失速转矩为425磅一英寸，峰值失速转矩为895磅一英寸。这种无刷伺服电机与其他自动化设备的连接是通过圆形卡口连接器实现的。MPL-B660F-SJ22AA 伺服电机专为伺服系统而设计，可提供非常高的位置精度。它是一种功能强大的设备，可以快速响应交流伺服驱动器生成的命令。该 MPL 伺服电机还具有板载内存，可在电源切断时保留电机身份。此功能加快了整个伺服系统的调试过程，因为任何 Allen-Bradley 交流伺服驱动器都可以立即识别该电机并执行自动调谐程序。

☆型号：MPL-B660F-SJ22AA 永磁旋转伺服电机 单圈高分辨率编码器

【英文介绍】

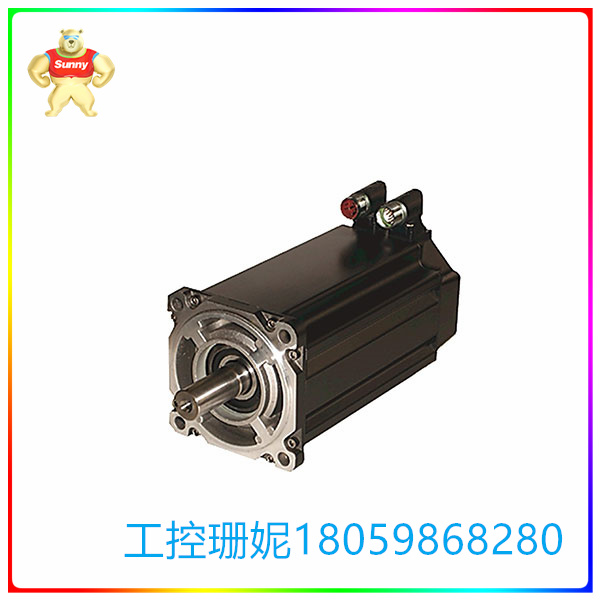

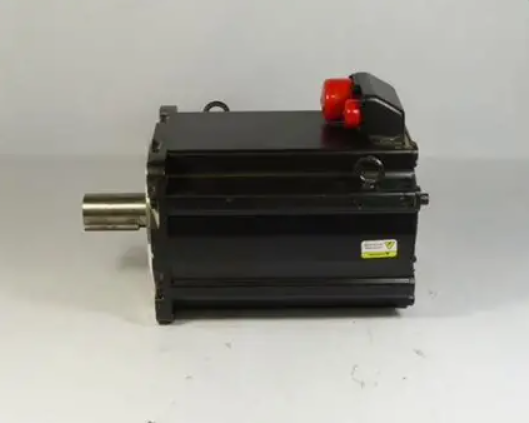

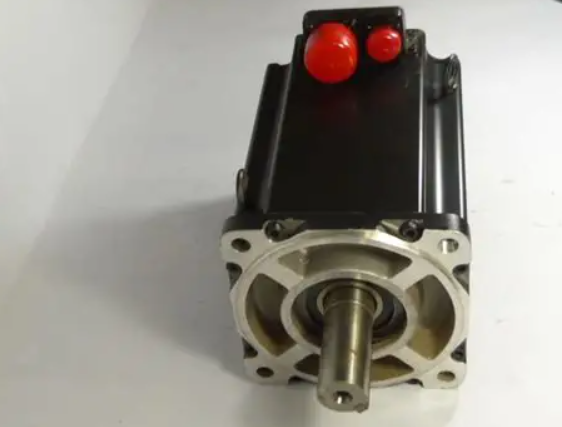

The MPL-B660F-SJ22AA servo motor is an AC servo motor manufactured by Allen-Bradley to control the speed and position of machine parts in a servo drive control system. The brushless servo motor receives a 400 volt AC signal at the input, converts it into torque and speed, and transmits it to a control object connected to its shaft. The Allen-Bradley MPL-B660F-SJ22AA servo motor offers a maximum speed of 3000 rpm and 6.1 kW of power. Servo drives compatible with this servo motor include Allen-Bradley/Rockwell Automation Ultra series AC servo drives and Kinetix series AC servo drives. The MPL-B660F-SJ22AA servo motor uses high-quality winding insulation for balanced thermal management and heat transfer. Although the device housing can reach more than 100 degrees Celsius, it can work without stopping due to overheating provided the proper airflow is provided.

The Allen-Bradley MPL-B660F-SJ22AA servo motor features a 215-mm frame with a single-turn high-resolution encoder. The unit has a rotor inertia of 0.0058 kg-m2, a continuous stall torque of 425 pounds an inch, and a peak stall torque of 895 pounds an inch. The connection between the brushless servo motor and other automation equipment is achieved through a circular bayonet connector. The MPL-B660F-SJ22AA servo motor is designed for servo systems and provides very high position accuracy. It is a powerful device that can quickly respond to commands generated by AC servo drives. The MPL servo motor also has onboard memory that preserves motor identity when the power is cut off. This feature speeds up the debugging process of the entire servo system, as any Allen-Bradley AC servo drive can instantly recognize the motor and perform an automatic tuning procedure.

☆型号：MPL-B660F-SJ22AA 永磁旋转伺服电机 单圈高分辨率编码器
