2711P-RDB7CX 操作终端的替换单元 可视化区域

☆型号：2711P-RDB7CX 操作终端的替换单元 可视化区域

【产品详情】

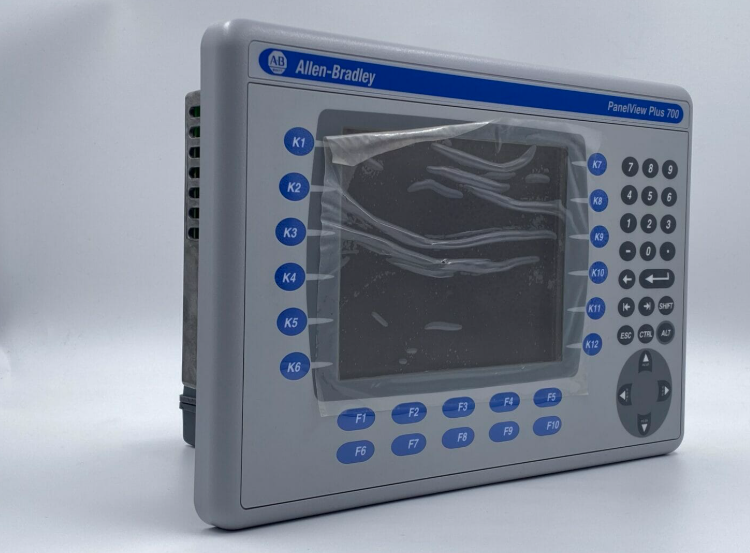

2711P-RDB7C是一款PanelView Plus组件。本机是一个显示器，可作为任何正常运行的 PanelView Plus 700 和 PanelView Plus 700 操作终端的替换单元。该显示模块承载输入接口以及 7 英寸显示屏。

2711P-RDB7C 显示模块提供被监控机器或过程的可视化区域。该显示模块的可视化尺寸为 6.5 英寸，对角线，显示区域为 132 x 99 毫米或 5.2 x 3.9 英寸，同时还具有 640 x 480 的像素分辨率，支持 18 位彩色图形。该显示模块还通过嵌入式模拟电阻式触摸感应屏幕提供操作员输入接口，预计使用寿命为 100 万台印刷机。同样，它包含由功能键、导航键、数字和确认按钮组成的不锈钢圆顶薄膜键盘组件。同样的键盘组件也被设计为可操作多达 100 万次印刷机。

2711P-RDB7C 显示模块具有用于 PanelView Plus 700 和 PanelView Plus 6 700 操作终端的任何显示模块的典型认证。它可以安装在 I 类、2 区、A、B、C、D 组/I 类、2 区、IIC 组/II 类、2 区、F、G 组/III 类和（普通）非危险标识安装位置。它的温度代码为 T4，可在 55 °C （131 °F） 的最高环境温度下运行。

显示模块是 PanelView Plus 操作终端的基本组件之一。它通常与逻辑模块配对，形成一个功能齐全的操作终端。

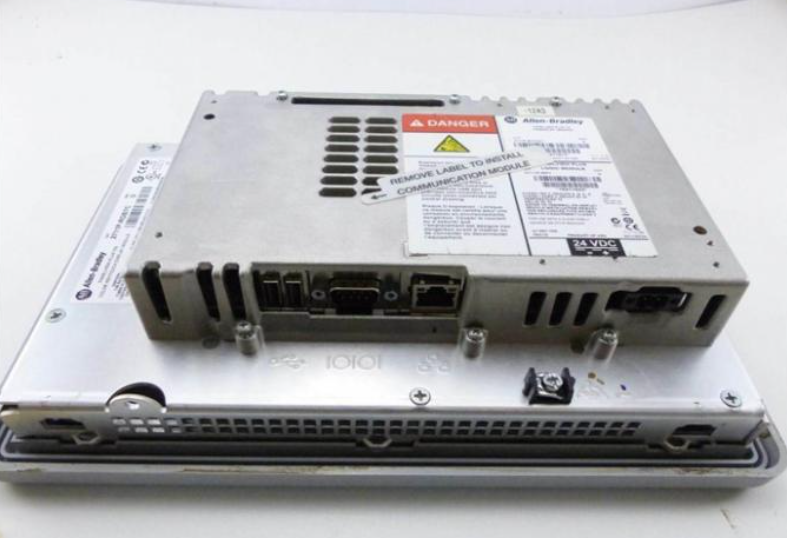

它可以配置为用于桌面访问的开放系统。为了与其他机器通信，提供了以太网端口和 RS-232 端口或 USB 端口。与以前的 Allen-Bradley PanelView Plus 显示模块相比，2711P-RDB7C 显示模块具有许多新功能，例如更高的处理器速度、系统内存、存储空间和照明功率。它有一个内置的PDF查看器，用于阅读内容文档，以及一个备份数据的机制。该显示模块使用基于矢量的图形，并通过CSV文件提供简单的数据管理。2711P-RDB7C 显示模块具有登录功能，便于数据存储和修改。

☆型号：2711P-RDB7CX 操作终端的替换单元 可视化区域

【英文介绍】

The 2711P-RDB7C is a PanelView Plus component. This unit is a display that can be used as a replacement unit for any functioning PanelView Plus 700 and PanelView Plus 700 operating terminal. The display module houses the input interface and the 7-inch display.

The 2711P-RDB7C display module provides a visual area of the machine or process being monitored. The display module has a visual size of 6.5 inches, diagonally, and a display area of 132 x 99 mm or 5.2 x 3.9 inches, while also having a pixel resolution of 640 x 480 and support for 18-bit color graphics. The display module also provides an operator input interface via an embedded analog resistive touch sensing screen with an estimated service life of 1 million presses. Similarly, it contains a stainless steel dome thin-film keyboard assembly consisting of function keys, navigation keys, numbers and confirmation buttons. The same keyboard assembly is also designed to operate the press up to 1 million times.

The 2711P-RDB7C display module has the typical certification for any display module for PanelView Plus 700 and PanelView Plus 6 700 operating terminals. It can be installed in Class I, Zone 2, A, B, C, D/Class I, Zone 2, Group IIC/Class II, Zone 2, Group F, Group G/Class III and (general) non-hazardous label installation locations. It has the temperature code T4 and can operate at a maximum ambient temperature of 55 °C (131 °F).

The display module is one of the basic components of PanelView Plus operation terminal. It is usually paired with a logic module to form a fully functional operating terminal.

It can be configured as an open system for desktop access. For communication with other machines, Ethernet ports and RS-232 ports or USB ports are provided. Compared to the previous Allen-Bradley PanelView Plus display module, the 2711P-RDB7C display module has many new features, such as higher processor speed, system memory, storage space, and lighting power. It has a built-in PDF viewer for reading content documents, as well as a mechanism for backing up data. The display module uses vector-based graphics and provides simple data management via CSV files. The 2711P-RDB7C display module has a login function for easy data storage and modification.
