2711P-B7C4D1
2711P-B7C4D1

2711P-B7C4D1 操作终端 实现对机器和过程的集中监控

型号:2711P-B7C4D1操作终端实现对机器和过程的集中监控【产品详情】Allen-Bradley2711P-B7C4D1是一款PanelViewPlus7

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:2711P-B7C4D1 操作终端   实现对机器和过程的集中监控







【产品详情】

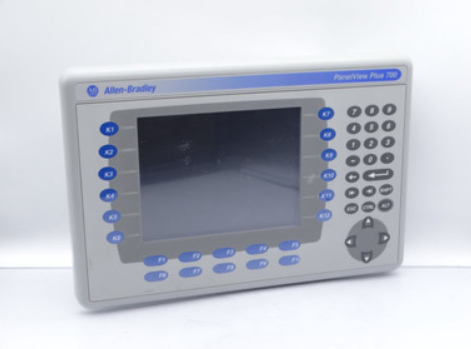

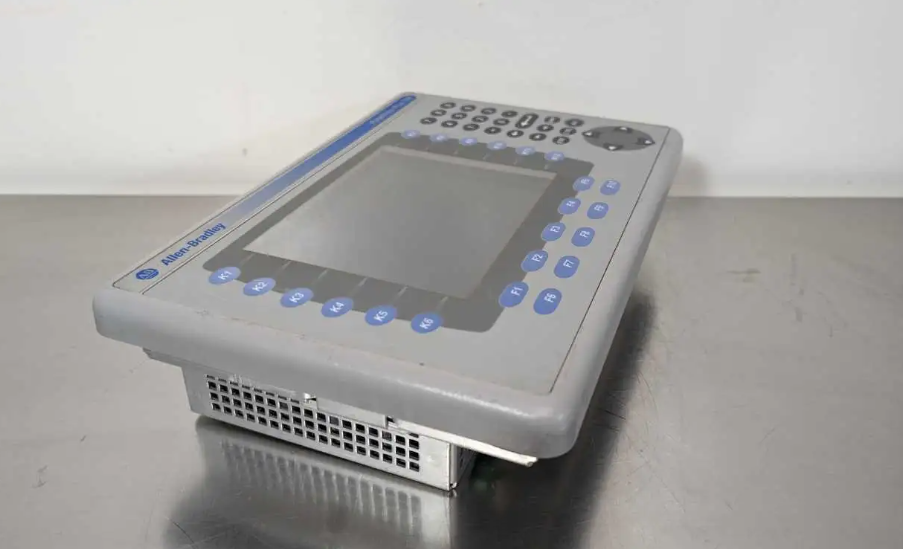

Allen-Bradley 2711P-B7C4D1 是一款 PanelView Plus 700 操作终端。该操作终端用作人机界面 (HMI),用于实现对机器和过程的集中监控。该设备配备彩色图形显示、键盘和触摸屏接口等双输入接口以及多种通信端口。


具体来说,2711P-B7C4D1 配备 6.5 英寸彩色显示屏,分辨率为 640 x 480 像素,显示区域为 132 x 99 毫米(5.2 x 3.9 英寸)。显示器由彩色有源矩阵薄膜晶体管 (TFT) 和液晶显示器 (LCD) 制成,该显示器安装有背光,估计使用寿命为 CCFL 50,000 小时,最小寿命。键盘等双输入接口由功能键、数字和导航按钮组成,驱动额定值为 100 万次,推荐操作力为 340 g。触摸屏输入接口由模拟电阻式触摸屏接口组成,具有100万次压力,操作力为10-110g。


2711-B7C4D1 安装了多种通信接口,例如一 (1) 个 RS232 通信端口;一 (1) 个以太网通信接口和两 (2) 个 USB 端口。RS232 端口支持 DF1 协议,通常用于点对点和面板内通信。以太网端口用于网络通信,支持以太网 I/P 和通用工业协议 (CIP)。嵌入式 USB 端口主要用于连接外部输入外围设备,例如鼠标和键盘。


该HMI内置多种工具,可快速配置并缩短调试周期。它具有集成配置模式,可用于配置设备的内部和运行时参数设置。语言支持、日期和时间、节点地址、通信和默认应用程序等参数。


2711-B7C4D1 内置 32 MB 闪存和 64 MB 随机存取存储器,额定电源电压为 18 至 32VDC,标称值为 24V dc。


2711P-B7C4D1 允许用户通过提供的以太网和 RS-232 通信端口进行连接。2711P-B7C4D1 终端具有 6.5 英寸彩色有源矩阵背光显示屏,支持电阻式触摸屏和包含导航键、数字键和功能键的键盘输入。分辨率为 640 x 480 像素,具有 18 位彩色图形。2711P-B7C4D1 具有 64 MB RAM 和 64 MB 非易失性存储器,用于用户存储。它重 1.9 千克(4.2 磅),尺寸为 193 x 290 x 55 毫米(7.58 x 11.40 x 2.18 英寸)。它需要 18 - 32V DC(标称 24V DC)的输入电压和 70 W 的最大功耗。以太网和 RS-232 串行端口有助于与可选的 DH-485、DH+ 和 ControlNet 模块进行高效通信。2711P-B7C4D1 包含 2 个 USB 端口,用于连接键盘等外部设备。它还支持用于数据备份的安全数字 (SD) 卡和用于数据时间戳的实时时钟。2711P-B7C4D1 可通过 NEMA、UL 或 IP 级外壳进行面板安装。






型号:2711P-B7C4D1 操作终端   实现对机器和过程的集中监控






英文介绍





The Allen-Bradley 2711P-B7C4D1 is a PanelView Plus 700 operating terminal. The operator terminal serves as a human-machine interface (HMI) for centralized monitoring of machines and processes. The device is equipped with dual input interfaces such as color graphic display, keyboard and touch screen interface, and a variety of communication ports.


Specifically, the 2711P-B7C4D1 features a 6.5-inch color display with a resolution of 640 x 480 pixels and a display area of 132 x 99 mm (5.2 x 3.9 inches). The display is made from a color active matrix thin film transistor (TFT) and a liquid crystal display (LCD), which is mounted with a backlight and has an estimated service life of 50,000 CCFL hours with a minimum life. The dual-input interface, such as the keyboard, consists of function keys, numbers and navigation buttons, with a drive rating of 1 million times and a recommended operating force of 340 g. The touch screen input interface consists of an analog resistive touch screen interface with 1 million times of pressure and an operating force of 10-110g.


The 2711-B7C4D1 is equipped with a variety of communication interfaces, such as one (1) RS232 communication port; One (1) Ethernet communication interface and two (2) USB ports. The RS232 port supports the DF1 protocol and is commonly used for point-to-point and in-panel communication. Ethernet ports are used for network communication and support Ethernet I/P and the Common Industrial Protocol (CIP). Embedded USB ports are primarily used to connect external input peripherals, such as mice and keyboards.


The HMI has a variety of built-in tools for quick configuration and shorter debugging cycles. It has an integrated configuration mode that can be used to configure the internal and runtime parameter Settings of the device. Parameters such as language support, date and time, node address, communication, and default application.


The 2711-B7C4D1 has 32 MB of built-in flash memory and 64 MB of random access memory, with a rated supply voltage of 18 to 32VDC and a nominal value of 24V dc.


The 2711P-B7C4D1 allows users to connect via the provided Ethernet and RS-232 communication ports. The 2711P-B7C4D1 terminal features a 6.5-inch color active matrix backlit display that supports a resistive touch screen and keyboard input with navigation, number and function keys. The resolution is 640 x 480 pixels with 18-bit color graphics. The 2711P-B7C4D1 has 64 MB of RAM and 64 MB of non-volatile memory for user storage. It weighs 1.9 kg (4.2 lb) and measures 193 x 290 x 55 mm (7.58 x 11.40 x 2.18 in). It requires an input voltage of 18-32V DC (nominal 24V DC) and a maximum power consumption of 70 W. Ethernet and RS-232 serial ports facilitate efficient communication with optional DH-485, DH+, and ControlNet modules. The 2711P-B7C4D1 contains two USB ports for connecting external devices such as keyboards. It also supports secure digital (SD) cards for data backup and a real-time clock for data timestamping. The 2711P-B7C4D1 can be panel mounted with NEMA, UL, or IP grade housing.




型号:2711P-B7C4D1 操作终端   实现对机器和过程的集中监控
