1326AB-B720F-M2L L 高性能伺服电机 多圈绝对值反馈

☆型号：1326AB-B720F-M2L L 高性能伺服电机 多圈绝对值反馈

【产品详情】

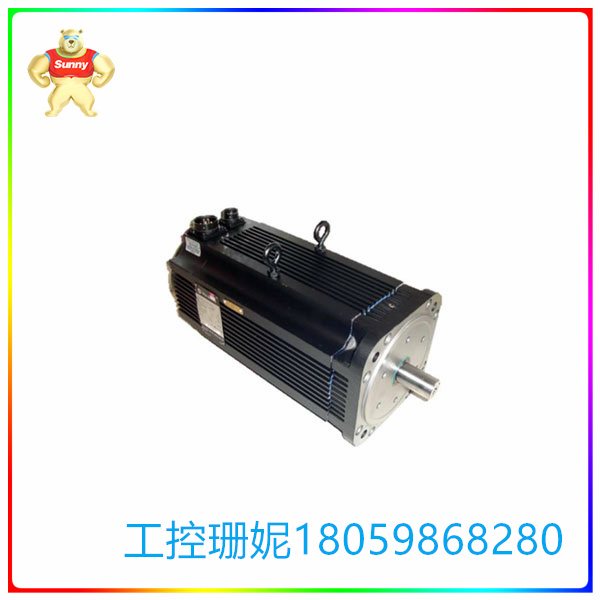

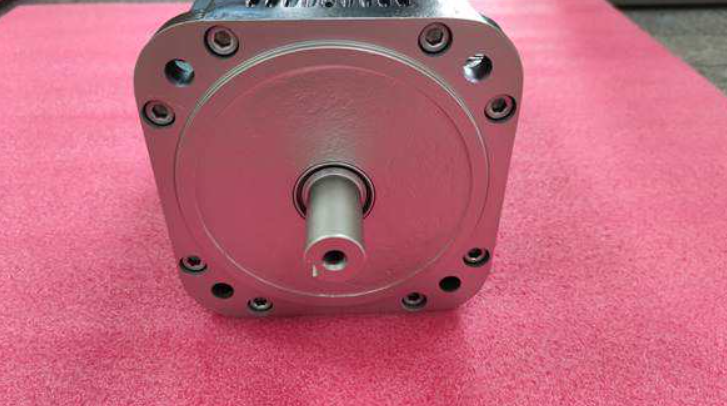

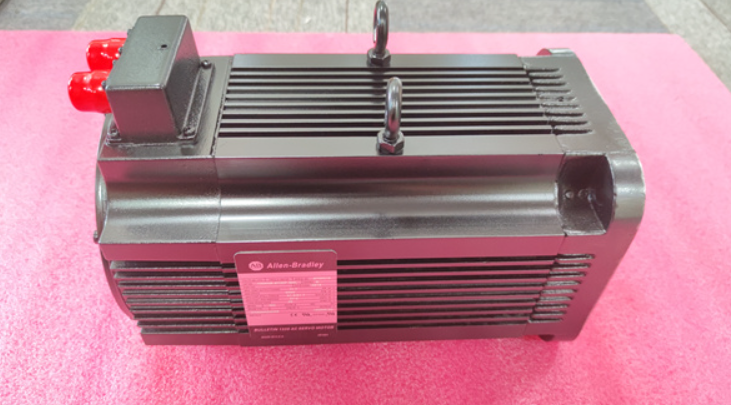

Allen-Bradley/Rockwell Automation 1326AB-B720E-M2L 高性能伺服电机可替换为 Elwood 即插即用伺服电机。Elwood 1326AB-B720E-M2L 伺服电机可替代 F 系列、N 系列、W 系列、H 系列（S 系列）、1326AB 系列和 1326AS 系列 Allen-Bradley/Rockwell Automation 1326AB-B720E-M2L 伺服电机。所有 Elwood 1326AB 替换伺服电机均符合 RoHS 标准，其绕组、安装、连接器和反馈组件均为 OEM 组件。

1326AB-B720E-M2L伺服电机具有高分辨率的多圈绝对值反馈。它可以在 32 到 104 华氏度的温度下运行，并且可以在 -25 到 158 华氏度的温度下储存。该伺服电机的存储或操作区域的相对湿度应在 5% 到 95% 之间，无冷凝。该伺服电机有 4 极，最大运行速度为 3500 RPM。其额定驱动电源电压为 460 伏交流电。额定电流为24.8安培，额定输出功率为6.8千瓦，9.1马力，额定连续失速转矩为273磅一英寸，峰值失速转矩为780磅一英寸。在运输时，伺服电机的重量为 102.1 磅，安装有制动器的 1326AB-B720E-M2L 伺服电机的运输重量为 115.1 磅。

☆型号：1326AB-B720F-M2L L 高性能伺服电机 多圈绝对值反馈

【英文介绍】

Allen-Bradley/Rockwell Automation 1326AB-B720E-M2L High performance servo motor can be replaced with Elwood plug and play servo motor. The Elwood 1326AB-B720E-M2L servomotors replace the F Series, N Series, W Series, H Series (S Series), 1326AB Series and 1326AS Series Allen-Bradley/Rockwell Automation 1326AB-B720E-M2L servo motor. All Elwood 1326AB replacement servo motors are RoHS compliant and their windings, mounting, connectors and feedback components are OEM components.

The 1326AB-B720E-M2L servo motor has high-resolution multi-turn absolute feedback. It can operate at temperatures from 32 to 104 degrees Fahrenheit and can be stored at temperatures from -25 to 158 degrees Fahrenheit. The relative humidity of the storage or operating area of the servo motor should be between 5% and 95% without condensation. The servo motor has 4 poles and a maximum operating speed of 3500 RPM. Its rated drive supply voltage is 460 volts AC. The rated current is 24.8 amps, the rated output power is 6.8 kW, 9.1 HP, and the rated continuous stall torque is 273 pound-inch, and the peak stall torque is 780 pound-inch. When transported, the servo motor weighs 102.1 pounds, and the 1326AB-B720E-M2L servo motor fitted with a brake weighs 115.1 pounds.

☆型号：1326AB-B720F-M2L L 高性能伺服电机 多圈绝对值反馈
