20G11NC015JA0NNNNN 可调频率交流变频器 具有内置保护功能

☆型号：20G11NC015JA0NNNNN 可调频率交流变频器 具有内置保护功能

【产品详情】

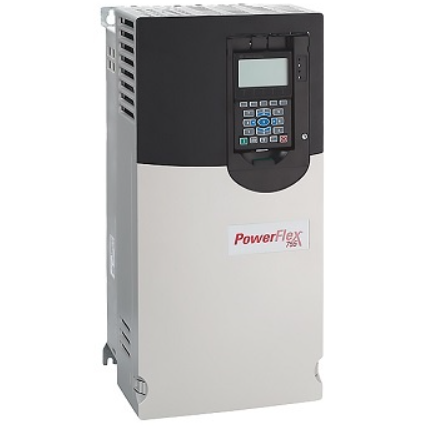

20G11NC015JA0NNNNN 可调频率交流变频器是属于 Allen-Bradley PowerFlex 755 变频器系列的变频器，旨在为大多数关键工业应用中的三相电机提供开箱即用的控制。与所有 PowerFlex 755 变频器一样，20G11NC015JA0NNNNN 变频器专为高性能应用而设计，例如协调变频器系统应用，以及需要精确位置、速度或扭矩控制需求的定位应用。20G11NC015JA0NNNNN 驱动电流在 400 伏交流线路输入电压下的额定电流为 15.4 安培，额定输出功率为 7.5 千瓦。它的排量功率因数为0.98，满额定值下的运行效率为97.5%。

20G11NC015JA0NNNNN 驱动器具有内置保护功能，可提供可靠的电流过载、过压、线路瞬态保护、断电穿越和短路保护。它具有硬连线和联网的安全扭矩关闭和安全速度监控功能，可增强对设备和操作员的保护。与所有 PowerFlex 755 变频器一样，该变频器具有预测性诊断功能，可通知用户变频器和组件状态，以便在发生故障时迅速采取纠正措施。20G11NC015JA0NNNNN 硬盘具有嵌入式以太网/IP 端口，可让用户访问实时数据以提高生产率，并与 Logix Control 平台无缝集成，轻松简化编程和控制。20G11NC015JA0NNNNN 驱动器提供适用于多电机应用的每赫兹伏特控制、无传感器矢量控制 （SVC） 和磁场定向矢量控制，采用专利强制技术，可提供出色的低速或零速性能，并提供精确的扭矩和速度调节。20G11NC015JA0NNNNN 变频器具有 NEMA 开放式 （IP 00） 外壳，设计用于 0 至 50 摄氏度的工作温度范围内。

☆型号：20G11NC015JA0NNNNN 可调频率交流变频器 具有内置保护功能

【英文介绍】

The 20G11NC015JA0NNNNN adjustable frequency AC inverter is part of the Allen-Bradley PowerFlex 755 inverter family, designed to provide out-of-the-box control for three-phase motors in most critical industrial applications. Like all PowerFlex 755 drives, the 20G11NC015JA0NNNNN drives are designed for high-performance applications, such as coordinated drive system applications, and positioning applications that require precise position, speed, or torque control requirements. 20G11NC015JA0NNNNN Drive current The rated current is 15.4 amps and the rated output power is 7.5 kW at the input voltage of the 400 V AC line. It has a displacement power factor of 0.98 and an operating efficiency of 97.5% at full rating.

The 20G11NC015JA0NNNNN driver has built-in protection to provide reliable current overload, overvoltage, line transient, power-off crossing and short circuit protection. It features hardwired and networked safe torque off and safe speed monitoring for increased protection of equipment and operators. Like all PowerFlex 755 drives, this drive features predictive diagnostics to inform users of the status of the drive and components so that corrective action can be taken quickly in the event of a failure. The 20G11NC015JA0NNNNN hard drive features an embedded Ethernet /IP port that gives users access to real-time data for increased productivity and seamlessly integrates with the Logix Control platform to easily simplify programming and control. The 20G11NC015JA0NNNNN driver offers per-hertz volt control for multi-motor applications, sensorless vector control (SVC) and field-directed vector control with patented force technology that provides excellent low or zero speed performance and provides precise torque and speed regulation. The 20G11NC015JA0NNNNNN inverter features a NEMA Open (IP 00) housing and is designed to operate in a temperature range of 0 to 50 degrees Celsius.

☆型号：20G11NC015JA0NNNNN 可调频率交流变频器 具有内置保护功能
