MPM-B1652F-MJ74AA 无刷交流同步伺服电机 具有多种功能

☆型号：MPM-B1652F-MJ74AA 无刷交流同步伺服电机 具有多种功能

【产品详情】

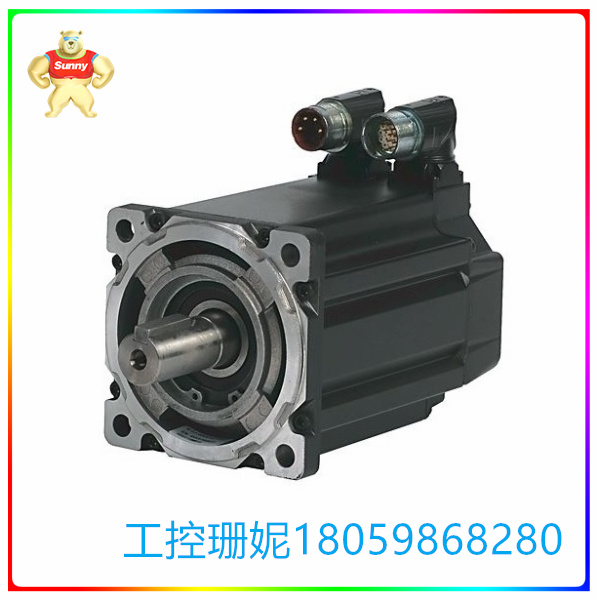

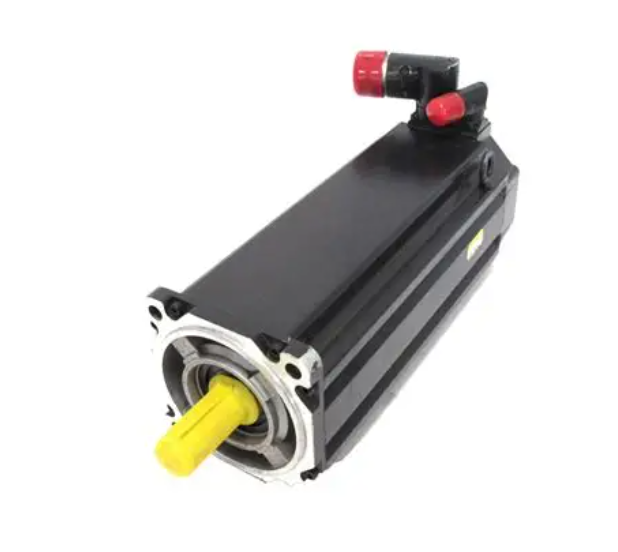

Allen-Bradley/Rockwell Automation MPM-B1652F-MJ74AA 标准无刷交流同步伺服电机主要用于惯性更大、负载更重的应用。这款中惯量伺服电机的输入电压额定值为 460 伏，基本速度为 3000 RPM。电机额定输出时的转速为2500 RPM，最高转速为4500 RPM。其他规格包括 33.0 N-m（292 磅一英寸）连续失速扭矩、72.3 N-m（640 磅一英寸）峰值失速扭矩和 5.60 千瓦电机额定输出。除此之外，值得一提的是电机的转子惯量为每平方米 0.02059 千克（每平方秒 0.18224 磅），电机重量约为 35.8 千克（79.0 磅）。MPM-B1652F-MJ74AA 伺服电机设计精良，结构紧凑，具有 165 毫米（6.50 英寸）的框架和 FF 型自由安装孔。该电机适用于广泛的应用，Bulletin MPM 系列非凡的伺服电机提供了各种不同的功能，几乎可以满足用户的所有要求。

MP 系列伺服电机具有多种功能，例如 24 伏直流制动器、SpeedTEC DIN 连接器或正气压套件。对此，MPM-B1652F-MJ74AA 伺服电机可以达到 IP65 或 IP67 防护等级，因为使用了可选的丁腈轴密封套件和环境密封连接器和电缆。这种工业电机会受到许多不同的因素的影响，这些因素可能导致设备操作不当或损坏，因此可用的选项通常会简化维护并延长电机的使用寿命。这款中惯量伺服电机通过其高性能编码器和高分辨率的多圈反馈，具有每转 200 万次计数的功能。多圈编码器的高分辨率绝对位置反馈可在 4096 圈内运行，其机电设计无需使用电池即可使用。MPM-B1652F-MJ74AA 伺服电机被评定为 IEC 公制电机，具有出色的电气性能。

☆型号：MPM-B1652F-MJ74AA 无刷交流同步伺服电机 具有多种功能

【英文介绍】

Allen-Bradley/Rockwell Automation MM-B1652F-MJ74AA standard brushless AC synchronous servo motors are mainly used in applications with higher inertia and heavier load. This medium inertia servo motor has an input voltage rating of 460 volts and a base speed of 3000 RPM. The motor has a rated output speed of 2500 RPM and a maximum speed of 4500 RPM. Other specifications include 33.0 N-m (292 lb. 1 in.) continuous stall torque, 72.3 N-m (640 lb. 1 in.) peak stall torque and 5.60 kW motor output rating. In addition to this, it is worth mentioning that the rotor inertia of the motor is 0.02059 kg per square meter (0.18224 pounds per square second), and the motor weighs about 35.8 kg (79.0 pounds). The MM-B1652F-MJ74AA servo motor is well designed and compact, with a 165 mm (6.50 in) frame and FF type free mounting holes. The motor is suitable for a wide range of applications, Bulletin MPM series of extraordinary servo motors offer a variety of different functions to meet almost all requirements of the user.

The MP series servomotors have a variety of features, such as 24-volt DC brakes, SpeedTEC DIN connectors or positive air pressure kits. For this, the MPM-B1652F-MJ74AA servo motor can achieve IP65 or IP67 protection due to the use of the optional nitrile shaft sealing kit and environmentally sealed connectors and cables. Such industrial motors are subject to many different factors that can lead to improper operation or damage to the equipment, so the options available will often simplify maintenance and extend the life of the motor. This medium inertia servo motor is capable of 2 million counts per revolution through its high-performance encoder and high-resolution multi-turn feedback. The high-resolution absolute position feedback of the multi-turn encoder can be operated within 4096 turns, and its electromechanical design can be used without the use of batteries. The MPM-B1652F-MJ74AA servo motor is rated as an IEC metric motor with excellent electrical performance.

☆型号：MPM-B1652F-MJ74AA 无刷交流同步伺服电机 具有多种功能
