2711P-T7C4D8 图形操作终端 为机器和过程提供图形界面

☆型号：2711P-T7C4D8 图形操作终端 为机器和过程提供图形界面

【产品详情】

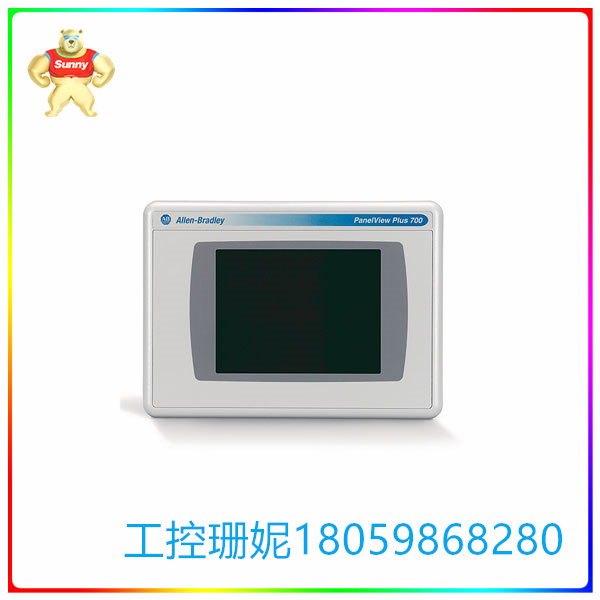

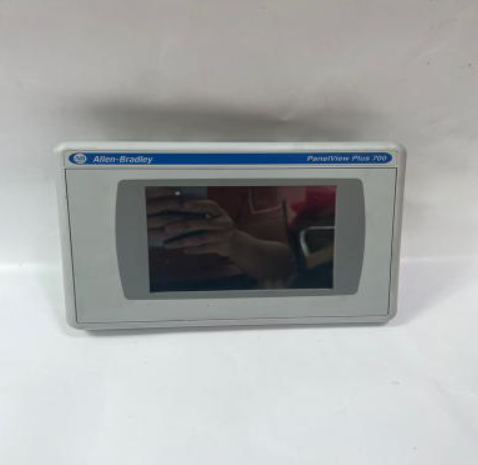

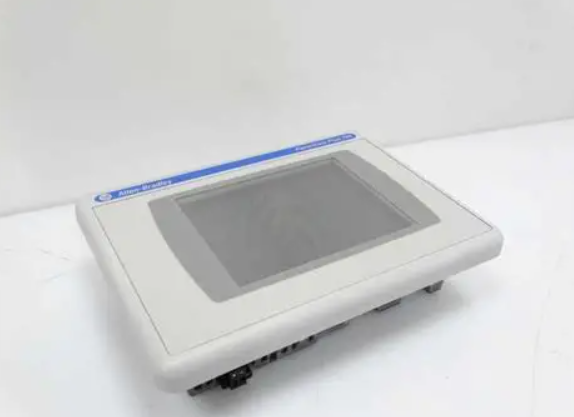

Allen-Bradley 2711P-T7C4D8 是一款 PanelView Plus 6 图形操作终端。该操作终端是一个可视化组件，用于为机器和过程提供图形界面。该操作终端通过逻辑和显示模块的组装实现直观的监控界面，这些模块包含该人机界面 （HMI） 设备的核心组件。

2711P-T7C4D8 通过 6.5 英寸屏幕提供彩色图形显示，可视区域为 132 x 99 毫米（5.2 x 3.9 英寸），像素分辨率为 640 x 480，采用 18 位彩色图形。用户能够看到通常用于描绘管道内流动或储存在容器中的材料的彩色编码图形显示、典型生产线的区域标记以及仪器和设备的状态。操作员通过模拟电阻式触摸屏输入接口与过程进行交互，该接口设计用于在 10-110 g 的驱动力下操作多达 100 万次操作。 该操作终端具有 512MB 随机存取存储器 （RAM），仅供操作终端在运行时环境中使用。

这确保了从 HMI 屏幕到另一个屏幕的快速过渡，以及与运行时对象的平滑交互。操作终端使用512MB闪存来存储HMI应用程序以及系统文件，如趋势、日志、配方、手册和其他相关文件。

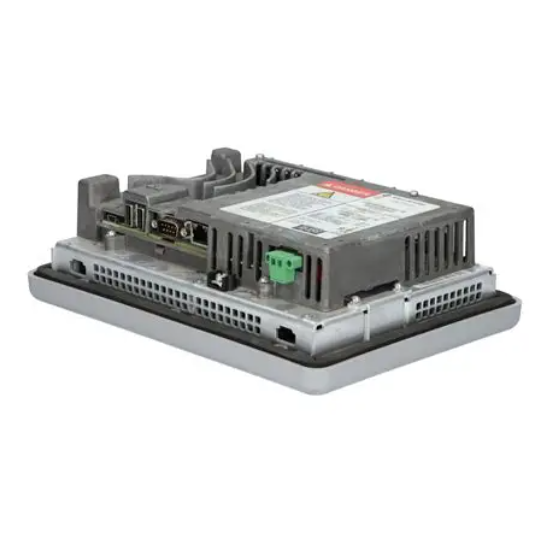

该模块具有自己的嵌入式以太网接口，具有可配置的 IP 地址。它有一个用于网络通信的 RJ45、10/100Base-T 连接器，并支持 MDI/MDI-X 连接。2711P-T7C4D8 处理器的速度从 350 MHz 提高到 1 GHz，屏幕转换速率提高了约 70%。系统内存从 64MB 的 RAM 增加到 512MB，闪存空间从 64MB 增加到 512MB。背光显示器的照明度也有所增加。此外，2711P-T7C4D8 还为打印机、鼠标和键盘等各种外部硬件提供了更好的连接性。可以订购可选的通信模块，用于额外的网络通信。

☆型号：2711P-T7C4D8 图形操作终端 为机器和过程提供图形界面

【英文介绍】

The Allen-Bradley 2711P-T7C4D8 is a PanelView Plus 6 graphics terminal. The operating terminal is a visual component that provides a graphical interface to machines and processes. The operating terminal enables an intuitive monitoring interface through the assembly of logic and display modules that contain the core components of the human machine interface (HMI) device.

The 2711P-T7C4D8 provides a color graphics display via a 6.5-inch screen with a viewing area of 132 x 99 mm (5.2 x 3.9 inches), a pixel resolution of 640 x 480, and 18-bit color graphics. Users are able to see color-coded graphic displays that are typically used to depict materials flowing in pipes or stored in containers, zone markings for typical production lines, and the status of instruments and equipment. Operators interact with the process through an analog resistive touch screen input interface designed to operate up to 1 million operations at 10-110 g of driving force. The operating terminal has 512MB of random access memory (RAM), which is used only by the operating terminal in the runtime environment.

This ensures a fast transition from HMI screen to screen, as well as smooth interaction with runtime objects. The operating terminal uses 512MB of flash memory to store HMI applications as well as system files such as trends, logs, recipes, manuals, and other related files.

The module has its own embedded Ethernet interface with a configurable IP address. It has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connectivity. The 2711P-T7C4D8 processor speeds up from 350 MHz to 1 GHz, increasing the screen conversion rate by about 70%. System memory increased from 64MB of RAM to 512MB, and flash memory space increased from 64MB to 512MB. The illumination of backlit displays has also increased. In addition, the 2711P-T7C4D8 provides better connectivity for a variety of external hardware such as printers, mice, and keyboards. Optional communication modules can be ordered for additional network communication.

☆型号：2711P-T7C4D8 图形操作终端 为机器和过程提供图形界面
