2098-DSD-HV100-SE 伺服驱动器模块 串行实时通信系统

☆型号：2098-DSD-HV100-SE 伺服驱动器模块 串行实时通信系统

【产品详情】

2098-DSD-HV100-SE 是一款 Ultra 3000 伺服驱动器模块。该伺服驱动模块配备串行实时通信系统 （SERCOS） 接口，通过利用光纤电缆连接的双 SERCOS 端口。这使得该驱动器能够直接与安装了 SERCOS 模块的可编程自动化控制器 （PAC） 进行通信。此外，该伺服电机可与 MP 系列、1326AB、F、H、N 和 Y 系列伺服电机耦合。

除了 SERCOS 接口外，该驱动器还符合 Ultra 3000 驱动器的标准功能。对于高级集成，此驱动器支持首映集成选项。该集成选项允许将伺服驱动器参数作为指令集成，并嵌入到用户程序中，并包含在控制器的扫描周期中。此方法允许根据程序设置的预定义条件和值动态更改驱动器参数。这最大限度地减少了操作员干预修改驱动器设置的需要。

2098-DSD-HV100-SE 的输出特性包括 23 A 的输出电流和 230VAC 输入时 2.5 kW 和 460VAC 输入时 5.0 kW 的连续输出功率。

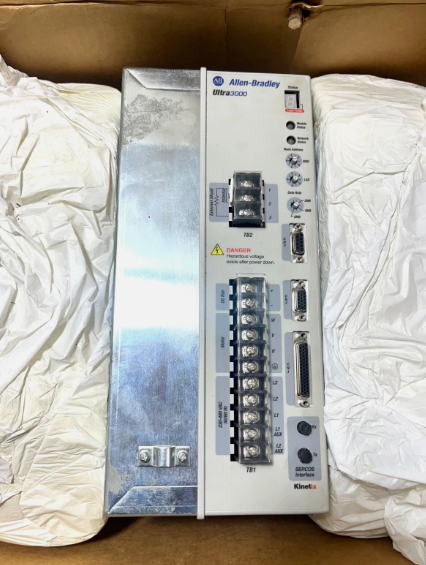

此驱动器带有标记为 TB1、TB2 和 CN1 的前面板端子。TB1 是一款 11 点端子排，可容纳电机连接、输入电源、辅助电源连接、直流输出端子和接地端子。TB2 指定用于外部无源分流连接，而 CN1 指定用于常开 （N.O.） 继电器输出。

该模块中有两根 SERCOS 光纤电缆。2098-DSD-HV100-SE 的输入电压 （AC） 为 230-480V 交流根均方（三相）。该模块的输入频率 （AC） 为 47-63 赫兹。该模块的标称输入电流 （AC） 为 14A 根均方。它还具有 23A（0 至峰值）连续输出电流和 46 A（0 至峰值）间歇输出电流。该模块的尺寸为 9.54 x 14.2 x 5.97 英寸（242.2 x 360.7 x 151.6 毫米）。该模块的重量约为 10.44 千克（22.96 磅）。2098-DSD-HV100-SE 适用于工业环境。当应用于 2 区环境时，该模块用于污染等级不高于污染 1（定义见 EN / IEC0664-2）的环境。该模块具有自动波特率，允许驱动器确定网络数据速率。该模块还支持自动设备更换 （ADR）。此模块包含一组用于配置和监控驱动器的参数。该模块可以通过更改与各个参数关联的值来配置。该模块的总线电容为705 ÂμF。该模块的内分流电阻为 40 欧姆。该模块的 SERCOS 通信速率为 4 Mbps 和 8 Mbps。节点地址介于 01 到 99 之间。请确认 SERCOS 光纤驱动器未通电，并且电缆是否正确插入 Tx 和 Rx 连接器。

☆型号：2098-DSD-HV100-SE 伺服驱动器模块 串行实时通信系统

【英文介绍】

The 2098-DSD-HV100-SE is an Ultra 3000 servo driver module. The servo drive module is equipped with a Serial real-time Communication System (SERCOS) interface through dual SERCOS ports connected by fiber optic cables. This enables the driver to communicate directly with the Programmable Automation controller (PAC) on which the SERCOS module is installed. In addition, the servo motor can be coupled to the MP series, 1326AB, F, H, N and Y series servo motors.

In addition to the SERCOS interface, the drive meets the standard features of an Ultra 3000 drive. For advanced integration, this drive supports premiere integration options. This integration option allows the servo drive parameters to be integrated as instructions and embedded in the user program and included in the controller's scan cycle. This method allows dynamic change of driver parameters based on predefined conditions and values set by the program. This minimizes the need for operator intervention to modify drive Settings.

The output characteristics of the 2098-DSD-HV100-SE include 23 A output current and 5.0 kW continuous output power for 230VAC input and 460VAC input.

This driver has front panel terminals labeled TB1, TB2, and CN1. The TB1 is an 11-point terminal block that accommodates motor connections, input power, auxiliary power connections, DC output terminals, and ground terminals. TB2 is specified for external passive shunt connections, while CN1 is specified for normally open (N.O.) relay output.

There are two SERCOS fiber optic cables in the module. The input voltage (AC) of the 2098-DSD-HV100-SE is 230-480V AC root mean square (three-phase). The input frequency (AC) of the module is 47-63 Hz. The nominal input current (AC) of the module is 14A root mean square. It also has 23A (0 to peak) continuous output current and 46 A (0 to peak) intermittent output current. The module measures 9.54 x 14.2 x 5.97 inches (242.2 x 360.7 x 151.6 mm). The module weighs about 10.44 kilograms (22.96 pounds). The 2098-DSD-HV100-SE is suitable for industrial environments. When applied in Zone 2 environments, the module is used in environments with pollution levels not higher than pollution 1 (as defined in EN/IEC0664-2). The module has an automatic baud rate that allows the driver to determine the network data rate. The module also supports Automatic Equipment replacement (ADR). This module contains a set of parameters for configuring and monitoring the drive. The module can be configured by changing the values associated with the individual parameters. The bus capacitance of the module is 705 A μF. The module has an internal shunt resistance of 40 ohms. The module has SERCOS communication rates of 4 Mbps and 8 Mbps. The node addresses are between 01 and 99. Verify that the SERCOS fiber driver is not powered on and that the cables are properly inserted into the Tx and Rx connectors.
