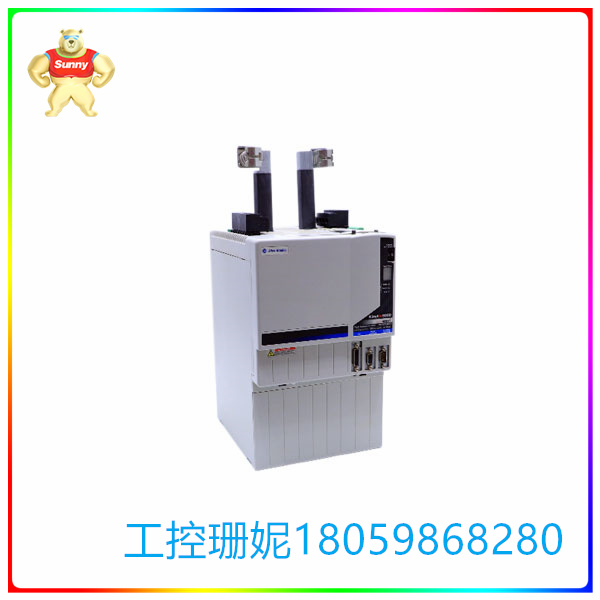

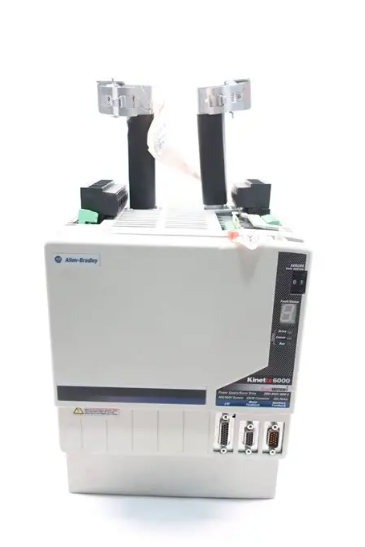

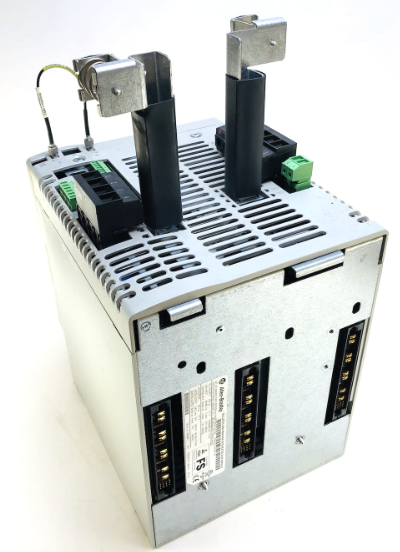

☆型号:2094-BC07-M05-S 集成轴模块 集成了安全转矩关闭功能
【产品详情】
2094-BC07-M05-S 是一款 Kinetix 6000 Drive 组件。本产品是一个集成轴模块,安装在电源轨的最左侧。该模块的输入电压范围为 360-480V 标称值,范围为 324...528V rms,三相,输入频率范围为 47063 Hz。 2094-BC07-M05-S 集成了安全转矩关闭功能。
此特定目录号有三 (3) 个系列,特别是具有标准过载支持的 A 系列,而 B 系列和 C 系列具有标准或峰值增强选项。标准模式设置为默认设置,以保持向后兼容性,但是,可以激活峰值增强模式以实现更高的峰值电流性能。2094-BC07-M05-S 的峰值增强电流标准和增强型的峰值逆变器额定电流分别为 150% 和 200%,而 A 系列和 B 系列的峰值转换器额定电流分别为 200% 和 300
%。 2094-BC07-M05-S 推荐的控制输入电源保险丝和断路器分别为 Bussmann 保险丝 FNQ-R-10 (10 A) 或 FNQ-R-7.5 (7.5 A) 和 1492-SPM2D060 或 1492-SPM1D150。对于直流母线电源,推荐的 Bussmann 保险丝是 FWJ-125A,Mersen 保险丝是 A70QS125-4。对于控制输入电源,FNQ-R-7.5 具有高单周期浪涌电流能力。当连续控制电源电流超过3.0A时,建议使用此保险丝。
2094-BC07-M05-S 是 Kinetix 6000 400 V 级 Allen Bradley Drive 的一部分,具有 200 瓦的内分流器(连续功率)、22.5 千瓦的内分流器(峰值功率)和 28.75 欧姆的内分流电阻器。该模块的效率为 97%,重量为 10.1 千克或 22.3 磅。
☆型号:2094-BC07-M05-S 集成轴模块 集成了安全转矩关闭功能
【英文介绍】
The 2094-BC07-M05-S is a Kinetix 6000 Drive component. This product is an integrated shaft module mounted on the far left side of the power rail. The input voltage range of the module is 360-480V nominal value, with a range of 324... 528V rms, three-phase, input frequency range 47063 Hz. The 2094-BC07-M05-S incorporates a safe torque shutdown function.
There are three (3) series for this particular catalog number, in particular the A Series with standard overload support, while the B Series and C Series have standard or peak enhancement options. Standard mode is set as the default to maintain backward compatibility, however, peak enhancement mode can be activated for higher peak current performance. The 2094-BC07-M05-S peak enhancement current standard and enhanced peak inverters are rated at 150% and 200%, respectively, while the A Series and B series peak converters are rated at 200% and 300%, respectively
%. The 2094-BC07-M05-S recommended control input power fuses and circuit breakers are Bussmann Fuses FNQ-R-10 (10A) or FNQ-R-7.5 (7.5A) and 1492-SPM2D060 or 1492-SPM1D150, respectively. For DC bus power supplies, the recommended Bussmann fuse is FWJ-125A and the Mersen fuse is A70QS125-4. For control input power supplies, the FNQ-R-7.5 has a high single-cycle surge current capability. This fuse is recommended when the continuous control supply current exceeds 3.0A.
The 2094-BC07-M05-S is part of the Kinetix 6000 400 V-Class Allen Bradley Drive and features a 200 watt internal shunt (continuous power), 22.5 kW internal shunt (peak power) and 28.75 ohm internal shunt resistor. The module is 97 percent efficient and weighs 10.1 kilograms or 22.3 pounds.
