1746-IM16
1746-IM16

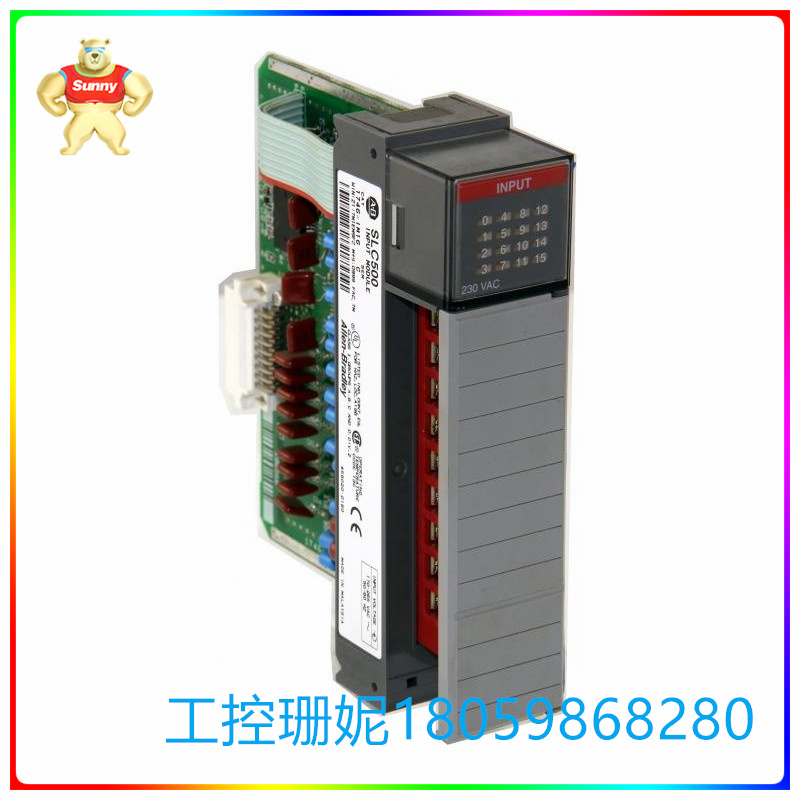

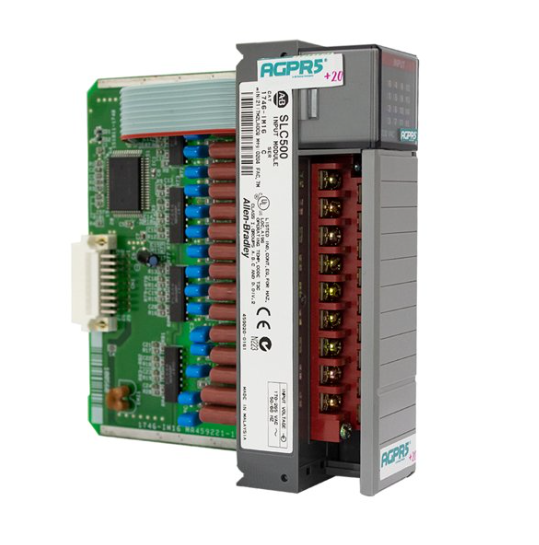

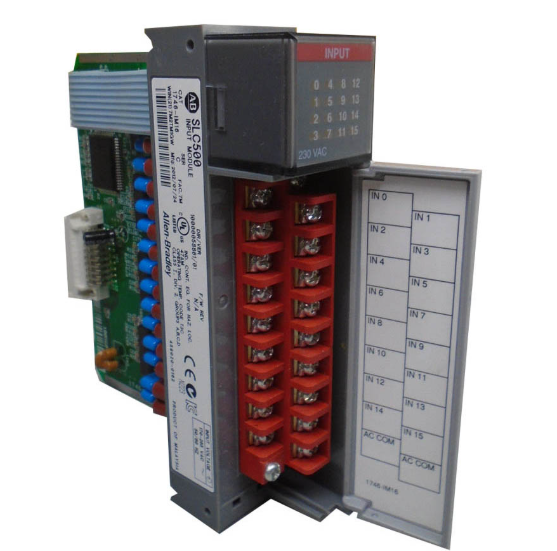

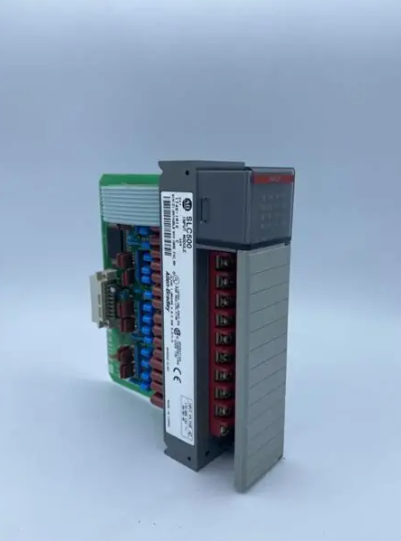

1746-IM16 交流输入的输入 (AC) 模块

型号:1746-IM16交流输入的输入(AC)模块【产品详情】Allen-Bradley的1746-IM16SLC500数字交流输入模块是一款具有16个200-

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

型号:1746-IM16 交流输入的输入 (AC) 模块







【产品详情】





Allen-Bradley 的 1746-IM16 SLC 500 数字交流输入模块是一款具有 16 个 200-240V 交流输入的输入 (AC) 模块,可使用 RTB(可拆卸接线端子)安装到任何可用的 SLC 500 I/O 机箱中。它每个公共点有 16 个点,输入工作电压为 170-265V AC,频率为 47-63Hz。在5V DC时,它的背板额定电流为0.085A,其输入点周围的ON状态和OFF状态的电信号延迟分别为35ms和45ms。它的关断状态额定值为 50V 交流电压损耗和 2mA 的最大关断状态电流。1746-IM16 在每个输入点周围具有 12mA 的输入电流(标称),最大浪涌电流为 1.6A,最长持续时间为 0.5ms。每个点的最大功耗为0.35W,模块的总散热量为6W。它在输入端子和控制逻辑之间提供电压隔离,在 1500V 下进行测试,并且符合 NEMA 标准 ICS 2-230 的抗噪等级。1746-IM16 的工作温度范围在 0 至 60 °C(32 至 140 °F)之间,非冷凝湿度限制为 5-95%,非工作存储温度为 -40 至 85 °C(-40 至 185 °F)。1746-IM16 具有 30G 的工作冲击承受能力,可在 57-200Hz 下承受 2.5G 的工作振动。


Allen-Bradley 1746-IM16 是一款 SLC 500 交流输入模块。该模块专门是一个分立式输入模块,在一组中具有十六 (16) 个输入通道。该输入模块的每个通道的输入电压范围为 170-265 伏交流电,47-63 赫兹,标称输入信号为 200 / 240 伏交流电。


该模块适用于任何 SLC 500 机箱。它可以安装在安装 SLC 500 处理器的本地机架中;到 SLC 500 扩展机架,或作为大型控制系统中分布式 I/O 系统的组件模块。它的背板电流消耗为 0.085 安培 @ 5 伏直流电。每个通道的信号延迟为35毫秒(OFF到ON状态变化)和45毫秒(ON到OFF转换)。它的最大关断状态电压为 50 伏交流电,最大关断状态电流为 2 毫安。此外,该模块的输入电流为 12 毫安 @ 240 伏交流电,标称值,能够承受 1.6 安培的最大浪涌电流,最长持续时间为 5 毫秒。




型号:1746-IM16 交流输入的输入 (AC) 模块






英文介绍





Allene-bradley's 1746-IM16 SLC 500 Digital AC Input module is an input (AC) module with 16 200-240V AC inputs that can be installed into any available SLC 500 I/O chassis using RTB (detachable terminal). It has 16 points per common point, and the input operating voltage is 170-265V AC, and the frequency is 47-63Hz. At 5V DC, its backplane is rated at 0.085A, and the electrical signal delay around its input point is 35ms and 45ms in the ON and OFF states. Its off state rating is 50V AC voltage loss and a maximum off state current of 2mA. The 1746-IM16 has A (nominal) input current of 12mA around each input point, a maximum surge current of 1.6A and a maximum duration of 0.5ms. The maximum power consumption at each point is 0.35W, and the total heat dissipation of the module is 6W. It provides voltage isolation between the input terminals and the control logic, tests at 1500V, and complies with the noise resistance rating of NEMA standard ICS 2-230. The 1746-IM16 has an operating temperature range of 0 to 60 °C (32 to 140 °F), a non-condensing humidity limit of 5-95%, and a non-operating storage temperature of -40 to 85 °C (-40 to 185 °F). The 1746-IM16 has a 30G operating shock bearing capacity and can withstand 2.5G operating vibration at 57-200Hz.


The Allen-Bradley 1746-IM16 is an SLC 500 AC input module. The module is specifically a discrete input module with sixteen (16) input channels in a set. Each channel of the input module has an input voltage range of 170-265 volts AC, 47-63 Hertz, and a nominal input signal of 200/240 volts AC.


This module is suitable for any SLC 500 chassis. It can be installed in the local rack with the SLC 500 processor installed; To the SLC 500 extension rack, or as a component module for distributed I/O systems in large control systems. Its backplane current consumption is 0.085 amps @ 5 volts DC. Each channel has a signal delay of 35 milliseconds (OFF to ON state change) and 45 milliseconds (ON to OFF transition). It has a maximum turn-off voltage of 50 volts AC and a maximum turn-off current of 2 MA. In addition, the input current of the module is 12 MA @ 240 volts AC, a nominal value, and can withstand a maximum surge current of 1.6 amps with a maximum duration of 5 milliseconds.




型号:1746-IM16 交流输入的输入 (AC) 模块
