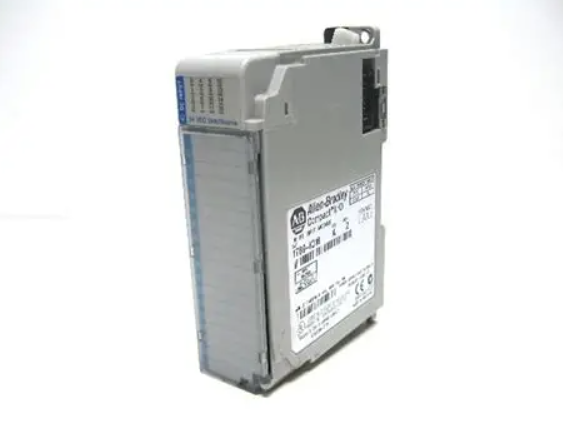

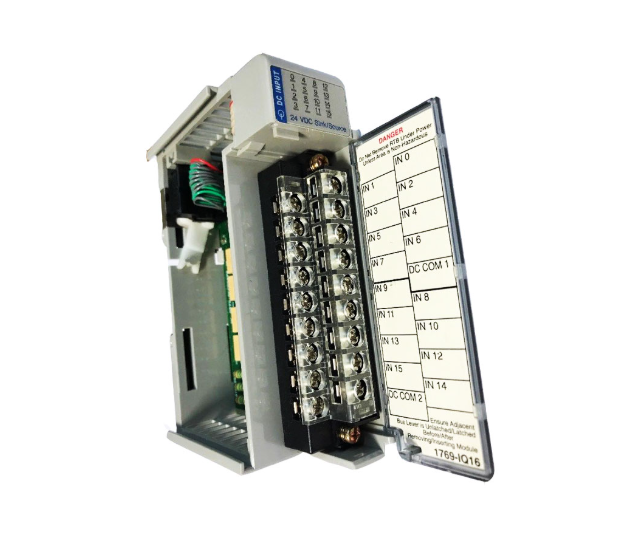

☆型号:1769-IQ16 直流数字输入模块 拉电流输入
【产品详情】
Allen-Bradley 的 1769-IQ16 直流数字输入模块是一款直流数字输入模块,具有十六 (16) 个 24 伏直流灌电流和拉电流输入。该模块有两 (2) 个输入组,每组有八 (8) 个通道。它的最佳电压范围为 10 至 30 伏直流电(30 摄氏度(86 华氏度)和 10 至 26.4 伏直流电(60 华氏度)。它具有 8 毫秒的输入 OFF/ON 信号延迟时间,并在 5.1 V DC 下消耗 115mA 电流。它的最大关断状态电压和额定电流分别为 5 伏直流和 1.5mA。它还具有 10 伏直流和 2mA 的导通额定值。1769-IQ16 的最大浪涌电流为 250mA,标称输入阻抗为 3 kW。它具有 IEC 2 类增强型绝缘类型,隔离电压为 75 伏直流电,在 1697 伏直流电下在输入到 BUS 和组到组之间测试了 1 秒。
在开放式外壳中,其最大散热量为 3.55W(每小时 12.11 BTU)。它重约 270 克(0.60 磅),尺寸为 118 x 35 x 87 毫米(4.65 x 1.38 x 3.43 英寸)。1769-IQ16 支持面板安装,DIN 导轨安装,使用六磅重的英寸端子螺钉。1769-IQ16 使用 1769-PA2、1769-PB2、1769-PA4 或 1769-PB4,具有 8 个模块的电源距离额定值。它使用铜(90 摄氏度(194 华氏度)下的铜)线,实心为 22/14 AWG,绞合线尺寸为 22/16 AWG。它的工作温度范围在 0 至 60 摄氏度(32 至 140 华氏度)之间,相对湿度范围为 5% 至 95%,无冷凝。
1769-IQ16 是一款紧凑型 I/O 模块,与 Allen Bradley 的 MicroLogix 1500 和 1769 CompactLogix 系列控制器兼容。该模块具有十六 (16) 个 24VDC 灌/拉输入通道。该模块用于连接继电器和电磁接触器辅助触点、热过载机构、开关、传感器和其他在开/关模式下工作且额定电压为 24VDC 的设备。该模块具有输入通道分组,由两 (2) 组八 (8) 个输入组成。此输入分组允许通道组的独立操作。
☆型号:1769-IQ16 直流数字输入模块 拉电流输入
【英文介绍】
Allen-Bradley's 1769-IQ16 DC digital Input module is a DC digital input module with sixteen (16) 24 volt DC perfusion and pull current inputs. The module has two (2) input groups, each with eight (8) channels. Its optimal voltage range is 10 to 30 volts DC (30 degrees Celsius (86 degrees Fahrenheit) and 10 to 26.4 volts DC (60 degrees Fahrenheit). It has an input OFF/ON signal delay time of 8 milliseconds and consumes 115mA of current at 5.1V DC. Its maximum off state voltage and rated current are 5 V DC and 1.5mA respectively. It also has a 10 volt DC and 2mA on-pass rating. The 1769-IQ16 has a maximum surge current of 250mA and a nominal input impedance of 3 kW. It has an IEC Class 2 Enhanced insulation type with an isolation voltage of 75 volts DC and was tested for 1 second at 1697 volts DC between input to BUS and group to group.
In an open housing, the maximum heat dissipation is 3.55W (12.11 BTU per hour). It weighs about 270 grams (0.60 pounds) and measures 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 inches). The 1769-IQ16 supports panel mounting, DIN rail mounting, and uses six-pound inch terminal screws. The 1769-IQ16 uses 1769-PA2, 1769-PB2, 1769-PA4, or 1769-PB4, with a power distance rating of eight modules. It uses copper (copper at 90 degrees Celsius (194 degrees Fahrenheit)) wire with a solid 22/14 AWG and a stranded wire size of 22/16 AWG. It operates in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and a relative humidity range of 5 to 95 percent, with no condensation.
The 1769-IQ16 is a compact I/O module compatible with Allen Bradley's MicroLogix 1500 and 1769 CompactLogix series controllers. The module has sixteen (16) 24VDC irrigation/pull input channels. The module is used to connect relays and electromagnetic contactor auxiliary contacts, thermal overload mechanisms, switches, sensors and other devices operating in on/off mode with a rated voltage of 24VDC. The module has input channel groupings consisting of two (2) groups of eight (8) inputs. This input group allows independent operation of channel groups.
