1797-IRT8 热电偶输入模块 8个热电偶的信号

☆型号：1797-IRT8 热电偶输入模块 8个热电偶的信号

【产品详情】

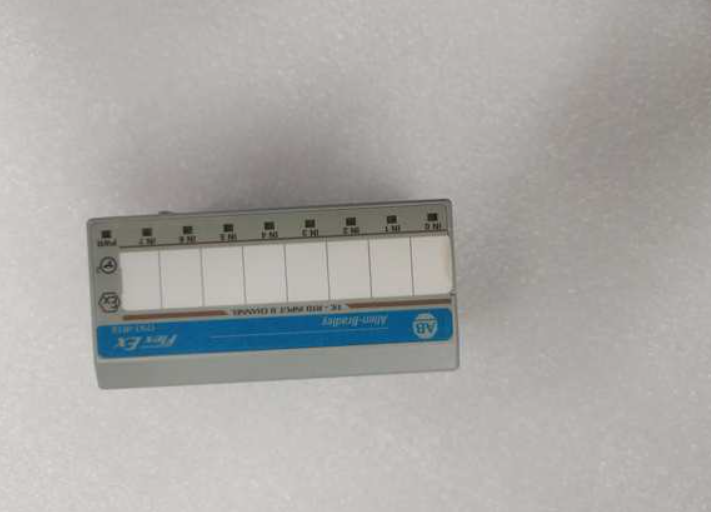

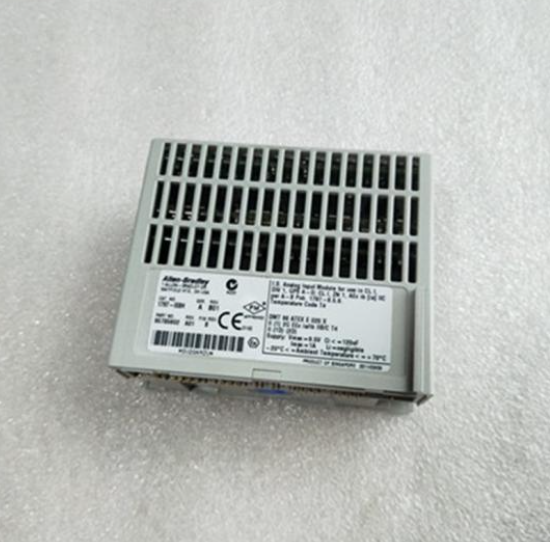

1797-IRT8是一款由Allen-Bradley公司生产的热电偶输入模块，属于Flex Ex系列。该模块具有8个通道，可以同时接收来自8个热电偶的信号。每个通道的信号范围为0至485欧姆和-40至100毫伏，可以适应不同类型的热电偶输入。

此外，该模块具有1.6瓦特的模块现场侧功耗，并需要小于9.5伏特的DC电源电压以及小于1安培的电流消耗。其外壳为IP20型，不具备防水功能，因此只能在工厂室内使用，并且需要防止水的喷射和飞溅。连接电缆采用12 AWG绞合电缆，并提供了DIN导轨安装选项和面板安装选项，方便用户根据需要进行安装。

总之，1797-IRT8是一款功能强大、性能稳定的热电偶输入模块，适用于各种需要高精度温度检测的工业自动化和控制系统中。在实际使用中，用户需要根据具体的应用需求选择合适的热电偶输入模块型号和规格，并遵循操作规程，以确保系统的正常运行和安全。

☆型号：1797-IRT8 热电偶输入模块 8个热电偶的信号

【英文介绍】

The 1797-IRT8 is a thermocouple input module manufactured by Allen-Bradley in the Flex Ex series. The module has 8 channels and can receive signals from 8 thermocouples simultaneously. Each channel has a signal range of 0 to 485 ohms and -40 to 100 millivolts, which can be adapted to different types of thermocouple inputs.

In addition, the module has a 1.6 watt module field side power consumption and requires a DC supply voltage of less than 9.5 volts and a current consumption of less than 1 amp. Its housing is IP20, which is not waterproof, so it can only be used in the factory room, and it needs to prevent water spray and splash. The connection cable is 12 AWG stranded cable and offers DIN rail mounting options and panel mounting options for easy installation as required.

In summary, the 1797-IRT8 is a powerful and stable thermocouple input module suitable for a wide range of industrial automation and control systems requiring high precision temperature detection. In actual use, the user needs to select the appropriate thermocouple input module model and specification according to the specific application requirements, and follow the operating procedures to ensure the normal operation and safety of the system.

☆型号：1797-IRT8 热电偶输入模块 8个热电偶的信号
