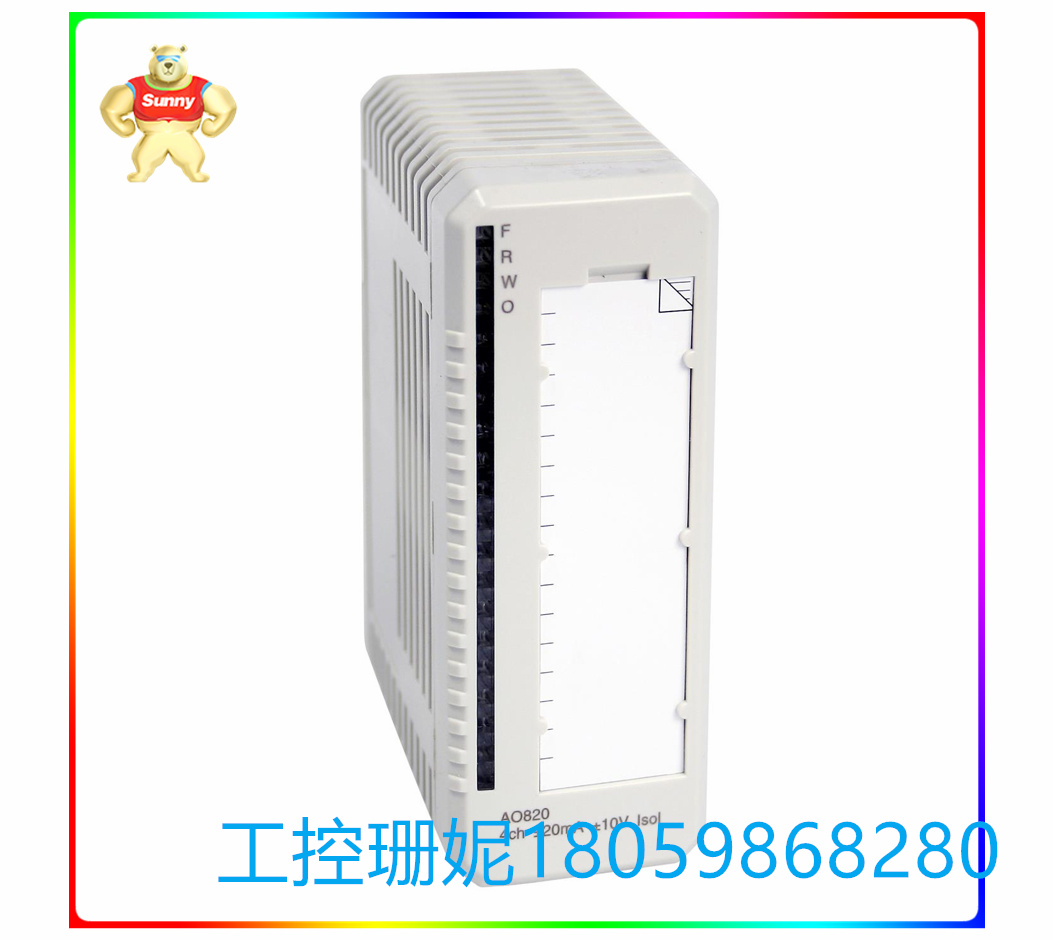

☆型号：AO820 3BSE008546R1 模拟量输出模块 选择均可配置
【产品详情】
AO820 模拟量输出模块具有 4 个双极性模拟量输出通道。每个通道的电流或电压输出选择均可配置。电压和电流输出有单独的端子组，由用户自行决定是否正确连接输出。电流或电压通道配置之间的唯一区别在于软件设置。
为了监控与A/D转换器的通信，输出数据被回读和验证。开路诊断信息也是连续读取的。如果电压消失，过程电压监控输入会给出通道错误信号。错误信号可以通过 ModuleBus 读取。
特点和优势
4 个通道 -20 mA...+20 mA、0...20 mA、4...20 mA 或 -10 V...+10 V、0...10 V、2...10 V 输出
单独电气隔离的通道
OSP在检测到错误时将输出设置为预定状态。
☆型号：AO820 3BSE008546R1 模拟量输出模块 选择均可配置
【英文介绍】
The AO820 analog output module has 4 bipolar analog output channels. Current or voltage output options can be configured for each channel. Voltage and current outputs have separate terminal groups, and it is up to the user to decide whether to connect the output correctly. The only difference between current or voltage channel configurations is the software setup.
To monitor the communication with the A/D converter, the output data is read back and verified. Open circuit diagnostic information is also read continuously. If the voltage disappears, the process voltage monitoring input will give a channel error signal. The error signal can be read by the ModuleBus.
Characteristics and advantages
4 channels -20 mA... +20 mA, 0... 20 mA, 4... 20 mA or -10 V... +10 V, 0... 10 V, 2... 10 V output
Separate electrically isolated channel
The OSP sets the output to a scheduled state when an error is detected.
