SD832 3BSC610065R1 电源单元 附加安全和功能数据

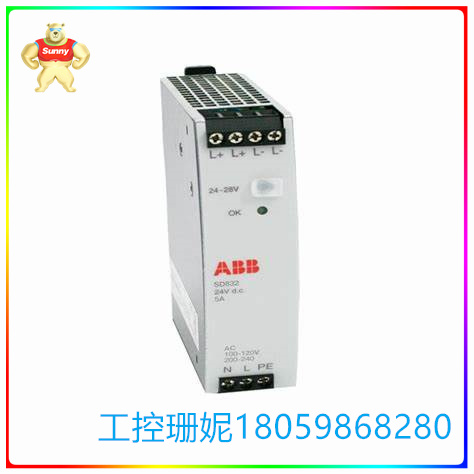

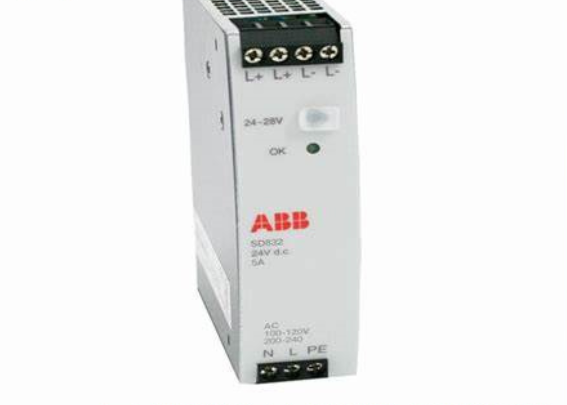

☆型号：SD832 3BSC610065R1 电源单元  附加安全和功能数据

【产品详情】

SD83x 电源单元的设计符合 EN 50178 协调欧洲标准出版物规定的所有适用电气安全数据以及 EN 61131-2 和 UL 508 要求的附加安全和功能数据。

次级输出电路可用于 SELV 或 PELV 应用。它们是开关模式电源装置，可将电源电压转换为 24 伏直流电压。这些电源可用于非冗余和冗余应用。

冗余应用需要二极管投票单元 SS823 或 SS832。使用SD83x系列电源装置，无需安装电源滤波器。它们提供软启动功能;SD83x 的电源不会使保险丝或接地故障断路器跳闸。

特点和优势

简单的DIN导轨安装

I 类设备，（当连接到保护接地时，（PE））

过电压类别 III 用于连接到主

TN 网络

次级回路与初级回路的保护性分离

接受 SELV 和 PELV 申请

这些单元的输出具有过流

（电流限制）和过压（OVP）保护

☆型号：SD832 3BSC610065R1 电源单元  附加安全和功能数据

【英文介绍】

The SD83x power supply unit is designed to comply with all applicable electrical safety data as specified in EN 50178 Harmonized European Standard publication and additional safety and functional data as required by EN 61131-2 and UL 508.

The secondary output circuit can be used for SELV or PELV applications. They are switching mode power supply units that convert the supply voltage to 24 volts DC. These power supplies can be used in both non-redundant and redundant applications.

Redundant applications require diode voting units SS823 or SS832. With SD83x series power supply units, no power filter is required. They offer soft boot functionality; The SD83x's power supply does not trip fuses or ground fault circuit breakers.

Characteristics and advantages

Simple DIN rail mounting

Class I equipment, (when connected to protective ground, (PE))

Overvoltage Class III is used to connect to the main

TN network

Protective separation of secondary and primary circuits

SELV and PELV applications accepted

The output of these units has an overcurrent

(Current limit) and overvoltage (OVP) protection
