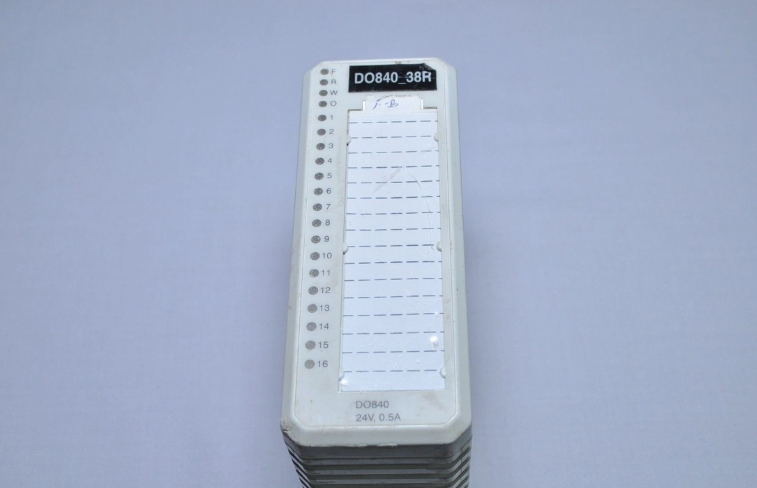

DO840 3BSE020838R1 该模块有 16 个数字输出 光隔离栅组成

☆型号：DO840 3BSE020838R1 该模块有 16 个数字输出 光隔离栅组成

【产品详情】

该模块有 16 个数字输出。每通道的最大连续输出电流为 0.5 A。输出具有电流限制和过热保护功能。输出分为两组，每组有八个输出通道和一个电压监控输入。每个输出通道由限流和过温保护的高侧驱动器、EMC保护元件、感性负载抑制、输出状态指示LED和光隔离栅组成。

特点和优势

16 个通道，用于 24 V 直流电流源输出

2 个隔离组，每组 8 个通道，带过程电压监控

先进的板载诊断

输出状态指示灯

OSP 在检测到错误时将输出设置为预定状态

冗余或单个应用程序

限流和过温保护

☆型号：DO840 3BSE020838R1 该模块有 16 个数字输出 光隔离栅组成

【英文介绍】

The module has 16 digital outputs. The maximum continuous output current per channel is 0.5 A. The output has current limiting and overheat protection. The outputs are divided into two groups, each with eight output channels and a voltage monitoring input. Each output channel consists of a high-side driver for current limiting and overtemperature protection, an EMC protection element, inductive load suppression, an output status indicator LED and an optical isolation gate.

Characteristics and advantages

16 channels for 24 V DC current source output

2 isolation groups, 8 channels each, with process voltage monitoring

Advanced onboard diagnostics

Output status light

The OSP sets the output to a scheduled state when an error is detected

Redundant or single application

Current limiting and overtemperature protection

☆型号：DO840 3BSE020838R1 该模块有 16 个数字输出 光隔离栅组成
