5069-OF8 模拟输出模块 可配置为电压和电流输出信号

☆型号：5069-OF8 模拟输出模块 可配置为电压和电流输出信号

【产品详情】

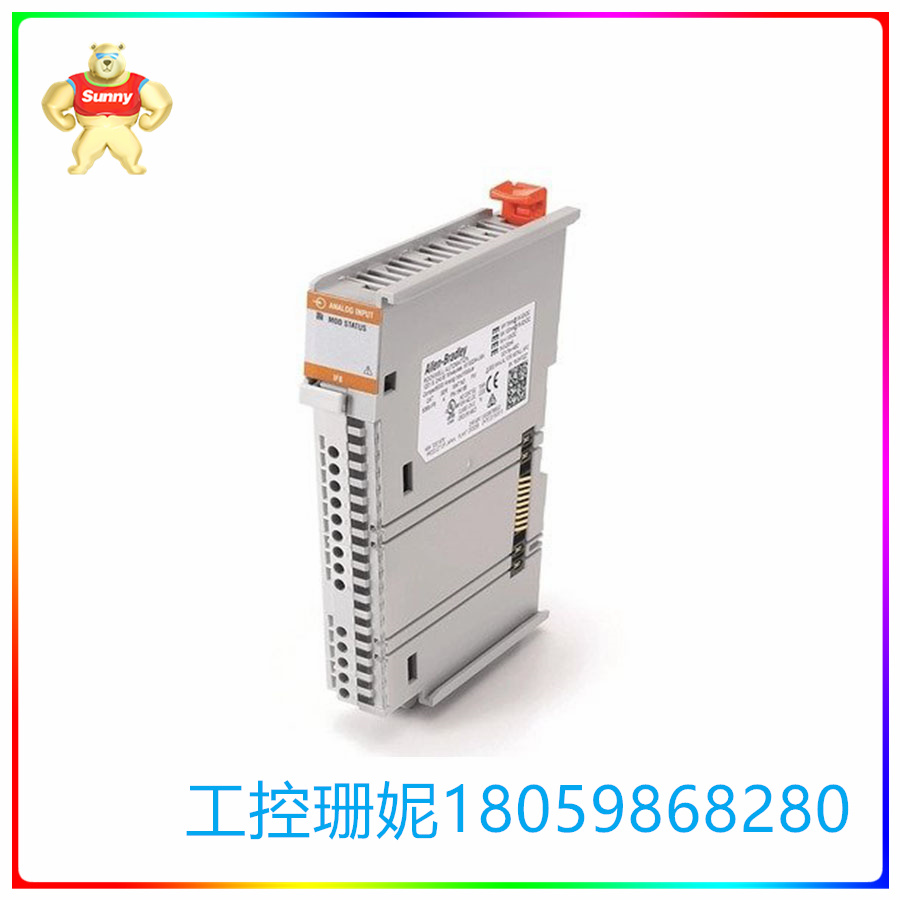

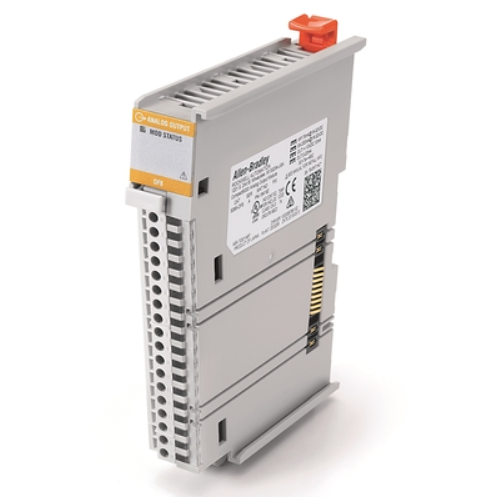

Allen-Bradley 5069-OF8 是一款紧凑型 5000 模拟输出模块。该模块仅与 CompactLogix 5000 控制器兼容，可作为本地和分布式 I/O 模块使用，也可与 ControlLogix 控制器作为分布式 I/O 模块使用。

5069-OF8 提供八 （8） 个模拟输出通道。每个通道都可配置为电压和电流输出信号。输出信号包括电压信号± 10VDC、0-10VDC 和 0-5VDC，电流信号包括 0-20 mA 和 4-20 mA。它在 10.5V - 320 μV/位±分辨率为 16 位;10.5V - 160 μV/位范围内的 16 位;5.25V - 80 μV/位范围内为 16 位，21 mA - 320 nA/位范围内为 16 位。该模块能够在电流模式下运行时检测开路，在电压模式下运行时检测短路。该模块通过内置的 R-Ladder 数模 （DAC） 转换器将数字数据转换回模拟数据，以便在实际过程中使用，单调性，无苔藓代码。该模块的每个输出通道的转换时间为 25 μs，通道 0-3 的扫描时间为 1.0 ms，通道 4-7 的扫描时间为 2.0 ms。

5069-OF8 可用于驱动和驱动调节装置，例如阀门、变频驱动器 （VFD）、阻尼器和其他执行器。它还可用于将信号重新传输到接收元件，例如面板仪表、数据记录器和记录仪。该模块还可以与合作伙伴控制器的比例 + 积分 + 微分 （PID） 控制器连接，以实现模拟控制回路的手动和全自动控制。

5069-OF8 模块的输出电压范围为 +/- 10V、0-10V 和 0-5V，输出电流范围为 0-20 mA 和 4-20 mA。它具有 MOD 电源总线电压范围和 18-32V DC 的直通电压范围，最大电流为 75 mA，最大额定电流为 9.55 A。其传感器执行器或SA现场电源电压范围和电源总线直通电压范围均为18-32V DC，其最大额定电流为9.95 A，最大现场电源电流为250 mA。5069-OF8 模块的最大散热为 18.1 BTU/小时，最大功耗为 5.3 W。该模块在± 10.5V - 320 μV/位范围内具有 16 位分辨率，在 10.5V - 160 Î1/4V/位范围内具有 16 位分辨率，在 5.25V - 80 μV/位范围内具有 16 位分辨率，在 21 mA - 320 nA/位范围内具有 16 位分辨率。其电流模式下的最大感性负载为 1 mH，电压模式下的最大容性负载为 1 μF。它的驱动能力最大为500？对于当前和至少 1000 ？对于电压。5069-OF8 的最大过压保护为 32V DC。

☆型号：5069-OF8 模拟输出模块 可配置为电压和电流输出信号

【英文介绍】

The Allen-Bradley 5069-OF8 is a compact 5000 analog output module. The module is only compatible with the CompactLogix 5000 controller and can be used as a local and distributed I/O module, as well as a distributed I/O module with the ControlLogix controller.

The 5069-OF8 provides eight (8) analog output channels. Each channel can be configured for voltage and current output signals. Output signals include voltage signals ± 10VDC, 0-10VDC, and 0-5VDC, and current signals include 0-20 mA and 4-20 mA. It has a ± resolution of 16 bits at 10.5V-320μV/bit; 16 bits in the 10.5V-160 μV/ bit range; 16 bits in the 5.25V-80 μV/ bit range and 16 bits in the 21 mA-320 nA/ bit range. The module can detect open circuit when running in current mode and short circuit when running in voltage mode. The module converts digital data back to analog data with a built-in R-Ladder digital-to-analog (DAC) converter for use in real processes, monotonicity, and moss code free. The conversion time of each output channel of the module is 25 μs, the scanning time of channels 0-3 is 1.0 ms, and the scanning time of channels 4-7 is 2.0 ms.

The 5069-OF8 can be used to drive and drive regulating devices such as valves, variable frequency drives (VFDS), dampers and other actuators. It can also be used to retransmit signals to receiving components, such as panel meters, data loggers and recorders. The module can also be connected with the proportional + integral + differential (PID) controller of the partner controller to enable manual and fully automatic control of the analog control loop.

The 5069-OF8 module has an output voltage range of +/ -10V, 0-10V and 0-5V, and an output current range of 0-20 mA and 4-20 mA. It has A MOD supply bus voltage range and a pass-through voltage range of 18-32V DC with a maximum current of 75 mA and a maximum rated current of 9.55 A. The sensor actuator or SA field supply voltage range and the power bus through voltage range are both 18-32V DC, with a maximum rated current of 9.95A and a maximum field supply current of 250 mA. The 5069-OF8 module has a maximum heat dissipation of 18.1 BTU/ hour and a maximum power consumption of 5.3 W. The module has 16-bit resolution in the ± 10.5V-320μV/bit range, 16-bit resolution in the 10.5V-160 I1/4V/bit range, and 16-bit resolution in the 5.25V-80μV/bit range. 16-bit resolution in the 21 mA-320 nA/ bit range. The maximum inductive load in current mode is 1 mH and the maximum capacitive load in voltage mode is 1 μF. It has a maximum drive capacity of 500? For current and at least 1000? For the voltage. The 5069-OF8 has a maximum overvoltage protection of 32V DC.
