☆型号:2711-K9A8/F 操作终端 数据高速公路增强版
【产品详情】
技术参数 2711-K9A8
品牌 艾伦-布拉德利
零件号/目录号 编号:2711-K9A8
输入电压范围: 85-264伏交流电,47-63赫兹
集成端口: 数据高速公路增强版 (DH+);RS232(打印机)
集成内存: E 系列之前的 240K 字节(应用程序屏幕); 1008K 字节(应用程序屏幕)用于 E 系列或更高版本

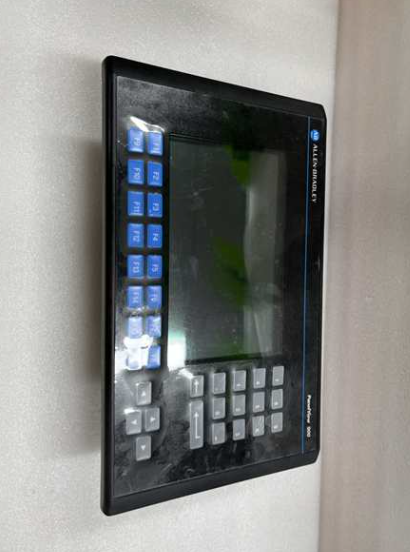

已停产的 Allen Bradley PanelView 900 2711-K9A8 是一款操作终端,使用户能够与机器进行交互。这款 HMI 有一个 9 英寸。单色显示。此面板视图带有 DH+ 和 RS-232 打印机通信端口。用户能够使用键盘控制HMI输入信息和数据。本机使用 120 VAC 电源供电。本机具有1008K字节的内部存储器。Data Highway Plus 终端能够与单个控制器进行点对点通信,以及通过 Allen-Bradley DH+ 网络与多个控制器进行网络通信。直接访问控制器数据文件可最大限度地减少梯形图逻辑。
Allen-Bradley 2711-K9A8 是一款 PanelView 900 Standard 操作终端。该操作终端的主要功能是允许操作员和工厂人员与使用可编程逻辑控制器 (PLC) 或可编程自动化控制器 (PAC) 实现自动化控制的工业机器或过程进行交互。2711-K9A8 通过 Data Highway Plus (DH+) 通信协议与控制器通信。它捕获过程数据和信息,并允许操作员通过 2711-K9A8 的键盘输入接口对其进行修改。
2711-K9A8 与定制设计的 HMI 应用程序一起下载,该应用程序代表机器或过程的控制和监控点。HMI 捕获的数据和信息通过 2711-K9A8 的 9 英寸单色屏幕显示。显示屏的分辨率为 640 x 400 像素,显示区域为 210 x 131 毫米(8.27 x 5.17 英寸)。

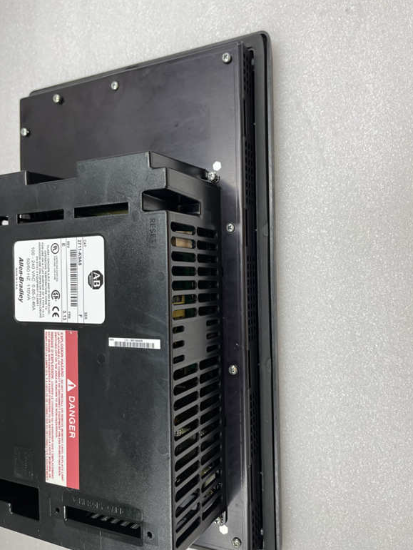

2711-K9A8 需要安装到 NEMA 类型 12/13、4X(仅限室内使用)IP54 和 IP65 的外壳上。它的重量约为 3.14 千克(4.4 磅),尺寸为 249(高)x 406(宽)x 112(深)毫米或 9.80(高)x 15.97(宽)x 4.40(深)英寸。
☆型号:2711-K9A8/F 操作终端 数据高速公路增强版
【英文介绍】
Technical parameters 2711-K9A8
Brand Allen Bradley
Part Number/Catalog Number: 2711-K9A8
Input voltage range: 85-264 VAC, 47-63 Hz
Integrated port: Data Superhighway Enhanced (DH+); RS232 (Printer)
Integrated memory: 240K bytes before the E series (application screen); 1008K bytes (application screen) for E series or later
The discontinued Allen Bradley PanelView 900 2711-K9A8 was an operating terminal that enabled users to interact with the machine. This HMI has a 9-inch. Monochrome display. This panel view comes with DH+ and RS-232 printer communication ports. Users can use the keyboard to control HMI input information and data. The unit uses 120 VAC power supply. The unit has 1008K bytes of internal memory. The Data Highway Plus terminal is capable of point-to-point communication with a single controller, as well as network communication with multiple controllers via the Allen-Bradley DH+ network. Direct access to controller data files minimizes ladder logic.
The Allen-Bradley 2711-K9A8 is a PanelView 900 Standard operating terminal. The main function of this operating terminal is to allow operators and plant personnel to interact with industrial machines or processes that are automated using programmable logic controllers (PLCS) or Programmable automation controllers (PACs). The 2711-K9A8 communicates with the controller via the Data Highway Plus (DH+) communication protocol. It captures process data and information and allows the operator to modify it via the keyboarding interface of the 2711-K9A8.
2711-K9A8 is downloaded with a custom-designed HMI application that represents the control and monitoring point of the machine or process. The data and information captured by the HMI is displayed via the 9-inch monochrome screen on the 2711-K9A8. The display has a resolution of 640 x 400 pixels and a display area of 210 x 131 mm (8.27 x 5.17 inches).
The 2711-K9A8 needs to be installed on the housing of NEMA types 12/13, 4X (indoor use only) IP54 and IP65. It weighs about 3.14 kg (4.4 lb) and measures 249 (H) x 406 (W) x 112 (D) mm or 9.80 (H) x 15.97 (W) x 4.40 (D) inches.
