CI854BK01 控制器和I/O 高速多用途总线协议

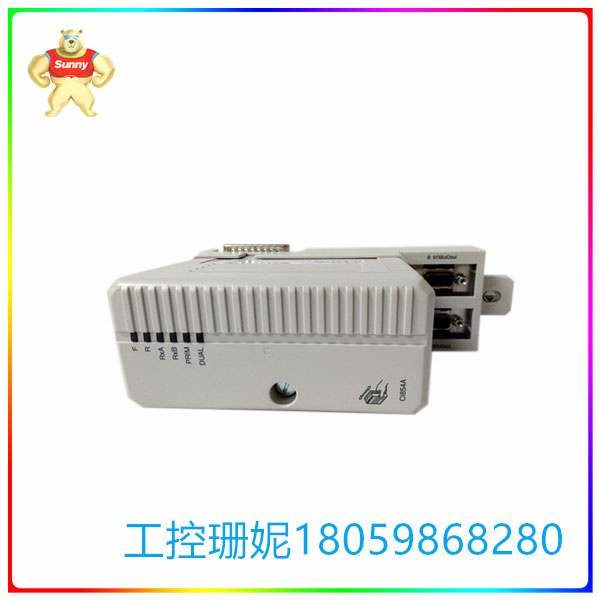

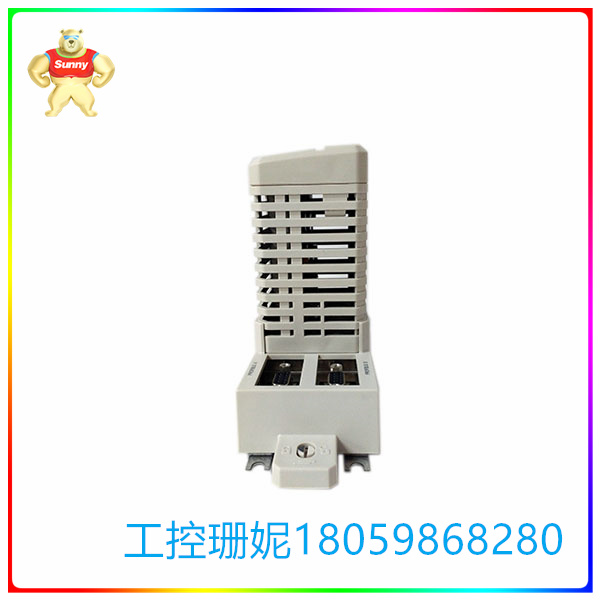

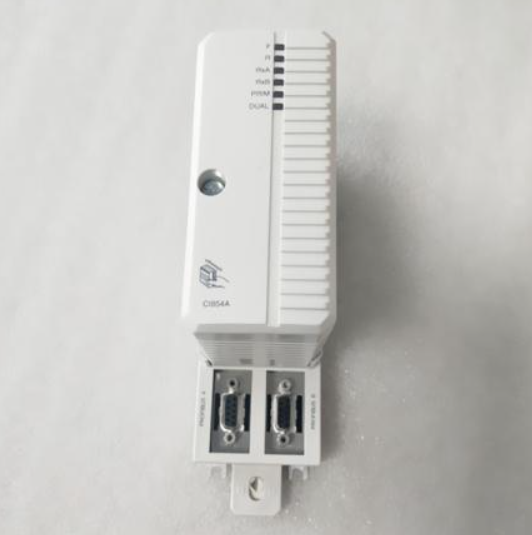

☆型号：CI854BK01  控制器和I/O 高速多用途总线协议

【产品详情】

PROFIBUS DP 是一种高速多用途总线协议（高达 12Mbit/s），用于互连现场设备，如远程 I/O、驱动器、低压电气设备和控制器。PROFIBUS DP 可通过 CI854B 通信接口连接到 AC 800M。CI854B包括两个PROFIBUS端口，可实现线路冗余，还支持PROFIBUS主站冗余。

PROFIBUS-DP 通信通过使用两个 CI854B 通信接口模块支持主站冗余。主站冗余可与 CPU 冗余和 CEXbus 冗余 （BC810） 结合使用。这些模块安装在DIN导轨上，可直接与S800 I/O系统以及其他I/O系统连接，包括所有PROFIBUS DP/DP-V1和FOUNDATION Fieldbus熟练系统。

PROFIBUS DP 必须在最外层的两个节点处终止。这通常是通过使用带有内置端接的连接器来完成的。为了保证正确的工作端接，必须插入连接器并供电。

封装包括：CI854BK01通信接口和 TP854 基板。

（仅与 System 800xA 6.0.3.2、Compact Control Builder 6.0.0-2 及更高版本兼容。有关详细信息，请参阅产品更新。强大灵活的方案，既适用于大型、综合性自动化和电力应用，同样也适用于小型混合控制系统。

想了解更多产品和服务信息?

联系我们

依靠ABB在一般和特定行业过程和电力自动化丰富的经验，系统800xA的控制器，通信接口和I/O模块得以匹配工业自动化领域挑战性的需求。通过提升生产控制，实现过程的可用性，降低维护成本，系统800xA的控制和I/O产品有助于提高资产回报率。

ABB还提供AC 800M 高完整性控制器 - 在不牺牲安全完整性的前提下，提供一个结合安全和关键过程控制并通过IEC 61508和TÜV认证的控制环境。

☆型号：CI854BK01  控制器和I/O 高速多用途总线协议

【英文介绍】

PROFIBUS DP is a high-speed multipurpose bus protocol (up to 12Mbit/s) for interconnecting field devices such as remote I/O, drives, low-voltage electrical equipment, and controllers. The PROFIBUS DP can be connected to the AC 800M via the CI854B communication interface. The CI854B includes two PROFIBUS ports for line redundancy and also supports PROFIBUS master station redundancy.

PROFIBUS-DP communication supports master redundancy through the use of two CI854B communication interface modules. Master redundancy can be used in combination with CPU redundancy and CEXbus redundancy (BC810). The modules are mounted on DIN rails and can be directly connected to the S800 I/O system as well as other I/O systems, including all PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus proficiency systems.

PROFIBUS DP must terminate at the outermost two nodes. This is usually done by using a connector with a built-in termination. In order to ensure proper working termination, the connector must be inserted and powered.

Package includes: CI854BK01 communication interface and TP854 substrate.

Compatible only with System 800xA 6.0.3.2, Compact Control Builder 6.0.0-2 and later. For more information, see Product Updates. Powerful and flexible solutions for large, integrated automation and power applications as well as small hybrid control systems.

Want to know more about our products and services?

Contact us

With ABB's extensive experience in general and industry-specific process and power automation, System 800xA's controllers, communication interfaces and I/O modules are tailored to meet the challenging needs of industrial automation. By improving production control, process availability and reducing maintenance costs, System 800xA's control and I/O products help increase return on assets.

ABB also offers the AC 800M High Integrity Controller - providing a control environment that combines safety and critical process control with IEC 61508 and TUV certification without sacrificing safety integrity.
