G448-0002 高密度DIN导轨安装 桥式输入现场可配置隔离器

☆型号：G448-0002 高密度DIN导轨安装 桥式输入现场可配置隔离器

【产品详情】

概述

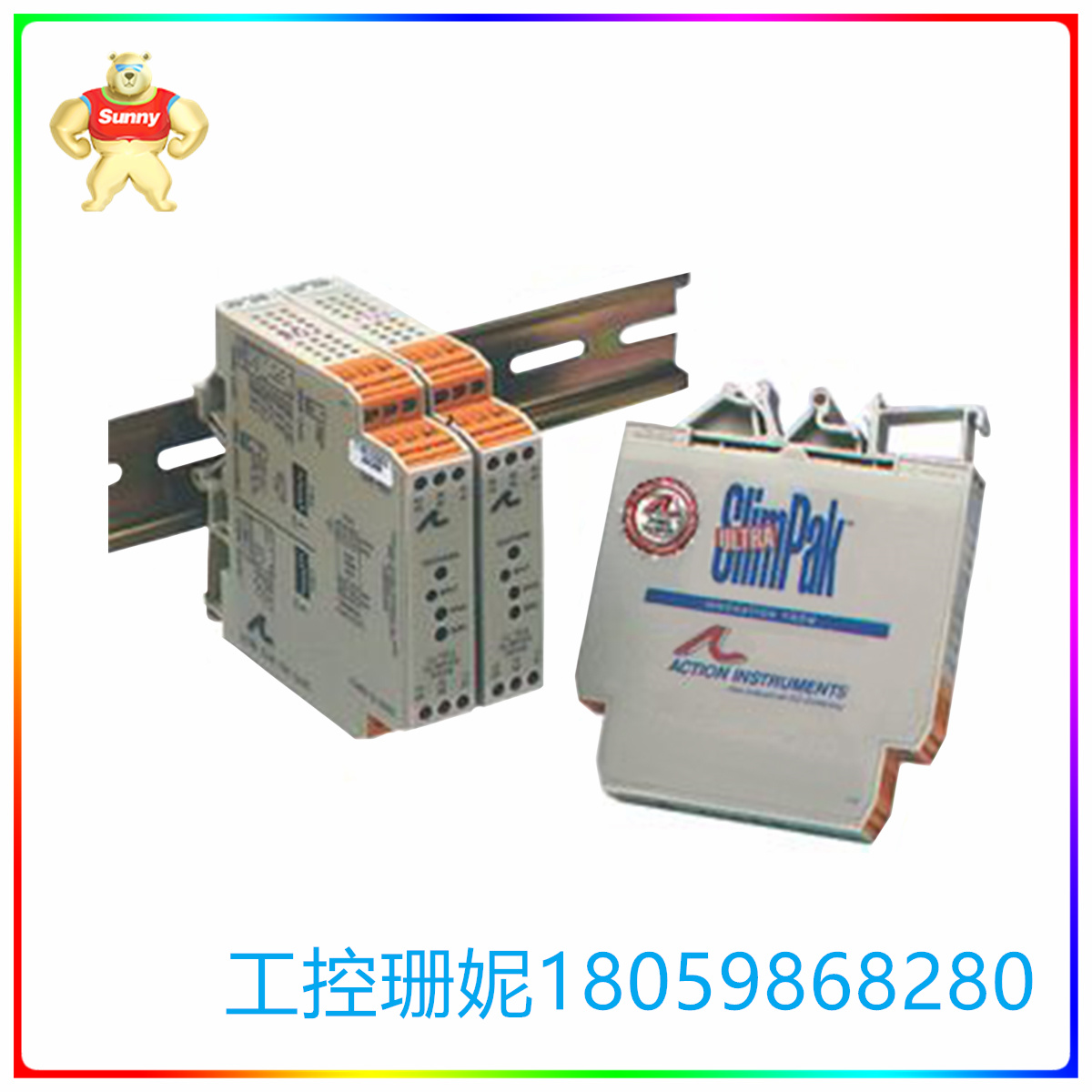

Eurotherm Action Instruments Ultra SlimPak 模块 DIN 导轨安装信号调节器、隔离器和报警器 Ultra SlimPak 是高密度、DIN 导轨安装、设定点限制报警和隔离信号调节器模块。所有 Ultra SlimPak 模块均采用 Action 先进的基于 ASIC 的设计，可实现现场可配置的输入和输出灵活性。它们的设计易于安装、操作和维护。无论您是放大或分离信号、调节传感器输出、隔离接地问题，还是为电流环路添加更多驱动，Action 的完整产品选择都能为任何模拟信号调节需求提供简单、方便的解决方案。特征

现场可配置

广泛

高密度DIN导轨安装

基于 ASIC 的设计，实现最大可靠性

应用程序

G448的三路隔离完全消除了任何来源的接地回路。隔离保护昂贵的SCADA系统免受接地故障的影响，并为降低噪声提供滤波，这可能是小毫伏桥接信号的重要问题。广泛的灵活性使用户可以轻松地在称重系统中零负载或配置双极输入范围用于膨胀压缩或真空压力桥接应用。

诊断了

G448配备了双功能LED信号监视器。绿色，前置LED显示直流电源和输入信号状态。有源直流电源由发光的LED指示。

如果输入信号大于满量程的110%，LED将以8Hz闪烁。低于-10%时，闪速为4Hz。

☆型号：G448-0002 高密度DIN导轨安装 桥式输入现场可配置隔离器

【英文介绍】

summarize

Eurotherm Action Instruments Ultra SlimPak Module DIN Rail Mounted Signal Regulator, Isolator and Alarm Ultra SlimPak is a high density, DIN rail mounted, set point limit alarm and isolation signal regulator module. All Ultra SlimPak modules feature Action's advanced ASIC-based design for field-configurable input and output flexibility. They are designed to be easy to install, operate and maintain. Whether you're amplifying or separating signals, adjusting sensor output, isolating ground issues, or adding more drivers to the current loop, Action's complete product selection offers a simple, convenient solution for any analog signal conditioning need. trait

Field configurable

Wide range

High density DIN rail mounting

Asic-based design for maximum reliability

Application program

The G448's three-way isolation completely eliminates ground loops from any source. Isolation protects expensive SCADA systems from ground faults and provides filtering for noise reduction, which can be an important problem for small millivolt bridging signals. Extensive flexibility makes it easy for users to operate with zero load in weighing systems or to configure a bipolar input range for expansion compression or vacuum pressure bridging applications.

diagnosed

The G448 is equipped with a dual-function LED signal monitor. Green, front LED displays DC power and input signal status. The active DC power supply is indicated by an illuminated LED.

If the input signal is greater than 110% of full scale, the LED will flash at 8Hz. When the speed is lower than -10%, the flash speed is 4Hz.
