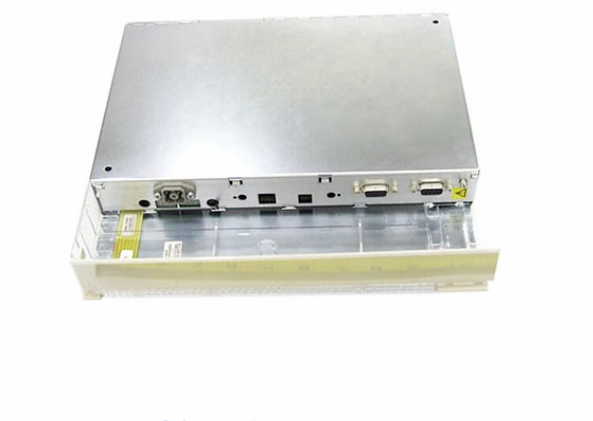

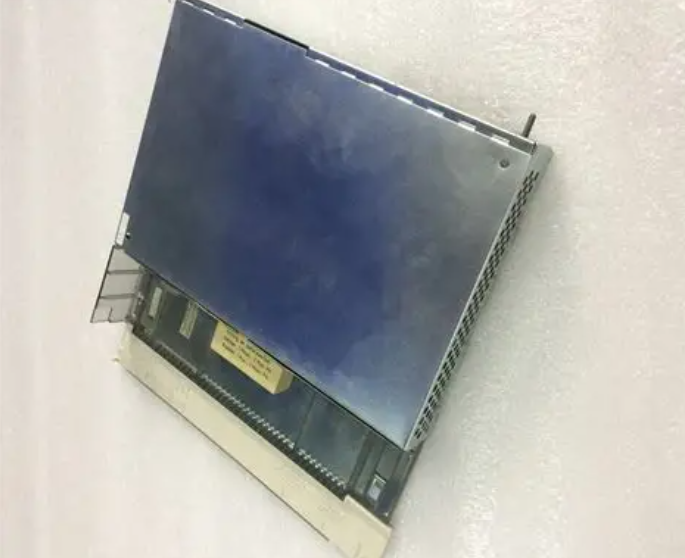

PM630 3BSE000434R1 处理器板 控制单元

【产品详情】

产品编号：REP3BSE000434R1

ABB型号名称：PM630型

目录说明：PM630 处理器板

其他信息

介质描述：处理器板

产品类型：Central_Unit

订购

海关税则号：8537109199

尺寸

产品净重：1300克

环境的

WEEE类别：产品不在WEEE范围内

　　从功能上看，一般CPU的内部结构可分为：控制单元、逻辑运算单元、存储单元（包括内部总线和缓冲器）三大部分。其中控制单元完成数据处理整个过程中的调配工作，逻辑单元则完成各个指令以便得到程序最终想要的结果，存储单元就负责存储原始数据以及运算结果。浑然一体的配合使得CPU拥有了强大的功能，可以完成包括浮点、多媒体等指令在内的众多复杂运算，也为数字时代加入了更多的活力。

　　逻辑部件

　　英文Logic components；运算逻辑部件。可以执行定点或浮点算术运算操作、移位操作以及逻辑操作，也可执行地址运算和转换。

　　寄存器

　　寄存器部件，包括寄存器、专用寄存器和控制寄存器。 通用寄存器又可分定点数和浮点数两类，它们用来保存指令执行过程中临时存放的寄存器操作数和中间（或最终）的操作结果。 通用寄存器是中央处理器的重要部件之一。

　　控制部件

　　英文Control unit；控制部件，主要是负责对指令译码，并且发出为完成每条指令所要执行的各个操作的控制信号。

　　其结构有两种：一种是以微存储为核心的微程序控制方式；一种是以逻辑硬布线结构为主的控制方式。

　　微存储中保持微码，每一个微码对应于一个最基本的微操作，又称微指令；各条指令是由不同序列的微码组成，这种微码序列构成微程序。中央处理器在对指令译码以后，即发出一定时序的控制信号，按给定序列的顺序以微周期为节拍执行由这些微码确定的若干个微操作，即可完成某条指令的执行。

　　简单指令是由（3～5）个微操作组成，复杂指令则要由几十个微操作甚至几百个微操作组成。

PM630 3BSE000434R1 处理器板 控制单元

【英文介绍】

Product ID: REP3BSE000434R1

ABB model name: PM630

Directory Description: PM630 processor board

Other information

Media description: Processor board

Product type: Central_Unit

order

Customs Code: 8537109199

dimension

Net weight: 1300 grams

environmental

WEEE Category: The product is not included in the WEEE

From the functional point of view, the internal structure of the general CPU can be divided into three parts: control unit, logical operation unit, storage unit (including internal bus and buffer). The control unit completes the deployment work in the whole process of data processing, the logical unit completes each instruction to get the final desired result of the program, and the storage unit is responsible for storing the original data and the result of the operation. The integrated cooperation makes the CPU have powerful functions, which can complete many complex operations including floating point, multimedia and other instructions, and also add more vitality to the digital era.

Logical unit

English Logic components; Arithmetic logic unit. You can perform fixed-point or floating-point arithmetic operations, shift operations, and logical operations, as well as address operations and conversions.

register

A register component includes a register, a special register and a control register. General purpose registers can be divided into fixed-point numbers and floating-point numbers, which are used to store register operands and intermediate (or final) operation results temporarily stored during instruction execution. General purpose register is one of the important components of central processing unit.

Control unit

English Control unit; The control component is mainly responsible for decoding the instructions and issuing the control signals for the various operations to be performed for each instruction.

There are two kinds of structure: one is microprogram control with micromemory as the core; One is based on the logic hard-wired structure of the control mode.

Microcode is maintained in microstorage, and each microcode corresponds to a most basic microoperation, also known as microinstruction; Each instruction is composed of a different sequence of microcode, and this microcode sequence constitutes a microprogram. After decoding the instructions, the central processor sends out a certain sequence of control signals, and executes a number of microoperations determined by these microcodes according to the given sequence in microcycles to the beat to complete the execution of a certain instruction.

Simple instructions are composed of (3 to 5) microoperations, and complex instructions are composed of dozens or even hundreds of microoperations.
