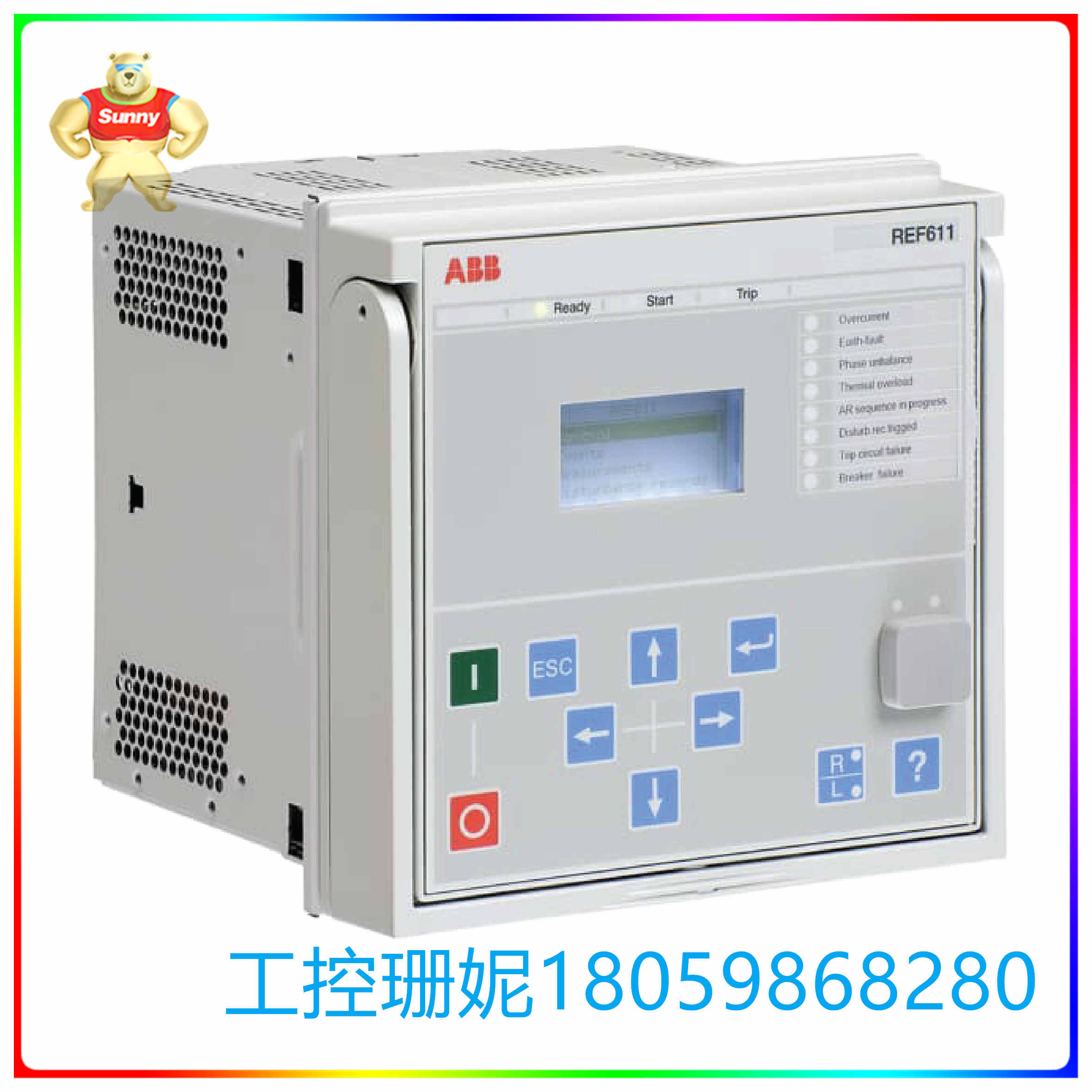

REF611 HCBACB2AA1XE 馈线保护和测控装置
【产品详情】
REF611馈线保护和测控装置,既可以提供方向接地故障保护也可以提供无方向接地故障保护。
方向接地故障保护主要用于中性点不接地电网或消弧线圈接地电网,无方向接地故障保护旨在用于直接或低阻抗接地中性点电网。
REF611馈线保护和测控装置也可以用于保护环形或网状配电网络,以及包含分布式发电的辐射电网。
主要优势
对于母线、馈线、电机、电压保护应用的预配置,使得只需要输入必需的参数即可加快按照和调试进程
包含输入输出视觉矩阵的强大友好的基于Web浏览的人机界面(HMI)
基于 IEC 61850 标准设计, 支持第一版和第二版, 包括 GOOSE
基于 HSR/PRP 功能的自愈性环网
紧凑的设计使其适用于新的和改造工程
可快速安装和测试的抽出式设计

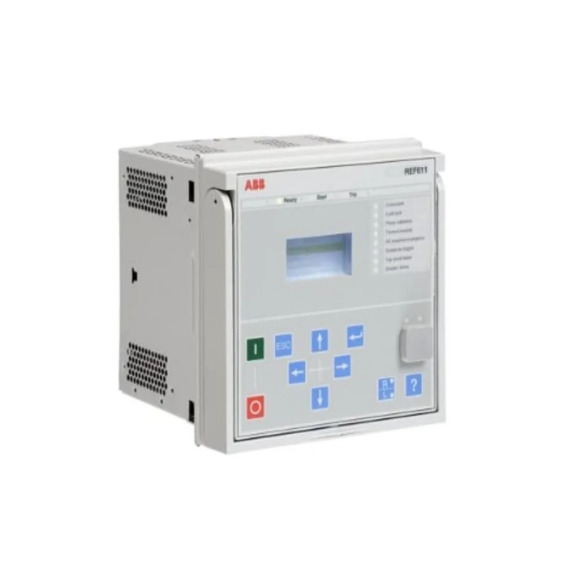

REF611 HCBACB2AA1XE 馈线保护和测控装置
【英文介绍】
The REF611 feeder protection and measurement and control device provides both directional ground fault protection and non-directional ground fault protection.
Directional ground fault protection is mainly used for neutral ungrounded power grids or arc suppression coil grounded power grids, non-directional ground fault protection is designed for direct or low impedance grounded neutral power grids.
The REF611 feeder protection and measurement and control devices can also be used to protect annular or mesh distribution networks, as well as radiant grids containing distributed generation.
Major advantage
Pre-configuration of busbars, feeders, motors, and voltage protection applications allows only the necessary parameters to be entered to speed up the compliance and commissioning process
Powerful and user-friendly Web browsing based Human Machine interface (HMI) with input and output visual matrix
Designed based on the IEC 61850 standard, it supports the first and second editions, including GOOSE
Self-healing ring network based on HSR/PRP function
The compact design makes it suitable for new and renovation projects
Draw-out design for quick installation and testing
