ABB UFC762AE101 3BHE006412R0101 主控板为驱动器的控制中枢

【产品详情】

品牌:ABB

P/n:

UFC762AE101 3BHE006412R0101

目录描述:导轨式电源模块

原产地:美国

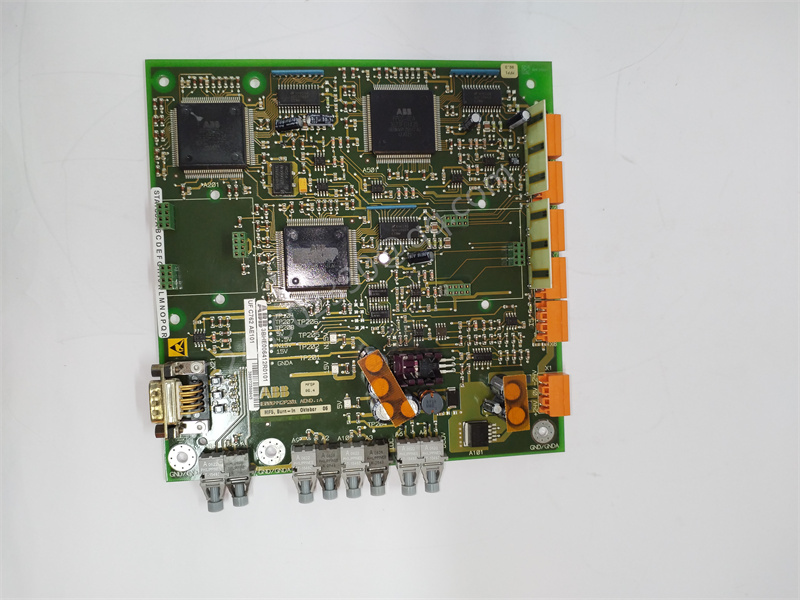

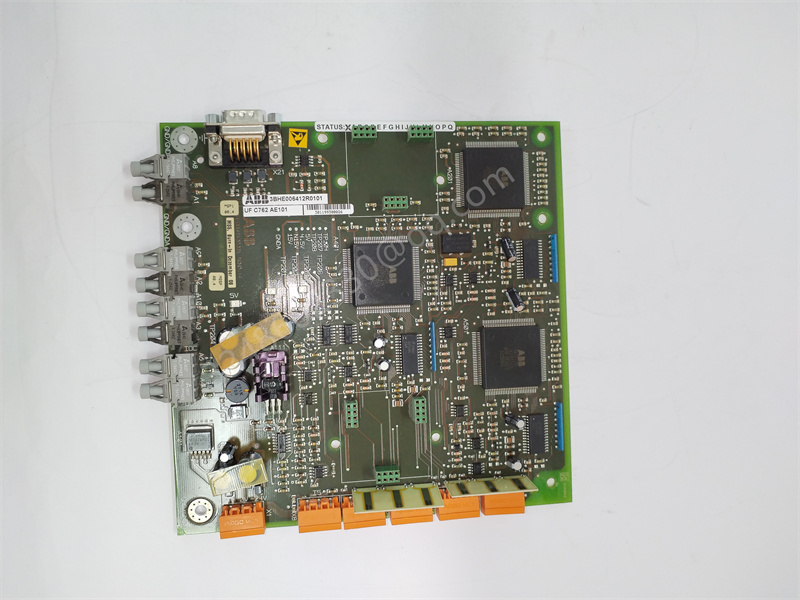

UFC762AE101 3BHE006412R0101 控制主板 UFC762

UFC762AE101 3BHE006412R0101主控板为驱动器的控制中枢，包括控制电源、调制脉冲的产生、控制方式及保护逻辑等四部分电路。它接受来自面板和外控接口的信号，控制和保护射频单元的工作，同时它把驱动器运行的状态信号输到面板和外控接口。

UFC762AE101 3BHE006412R0101主控板主要以高频感应加热主控制板和两个驱动为主，高频板技术采用了SG3525A作为PWM脉冲形成，输出脉冲频率范围20KHZ—60KHZ,脉冲间隔互为180度，死区时间可以自行调整。可适用于IGBT全桥逆变串联谐振感应加热装置用斩波器调压调功。

ABB UFC762AE101 3BHE006412R0101 主控板为驱动器的控制中枢

【英文介绍】

Brand :ABB

P/n:

UFC762AE101 3BHE006412R0101

Catalog Description: Guide rail power module

Country of Origin: USA

UFC762AE101 3BHE006412R0101 Controls the main board UFC762

UFC762AE101 3BHE006412R0101 Main control board is the control center of the driver, including the control power supply, the generation of the modulated pulse, the control mode and the protection logic. It accepts the signal from the panel and the external control interface, controls and protects the work of the RF unit, and it transmits the status signal of the driver operation to the panel and the external control interface.

UFC762AE101 3BHE006412R0101 main control board is mainly based on high-frequency induction heating main control board and two drivers. The high-frequency board technology adopts SG3525A as PWM pulse formation, the output pulse frequency range is 20Khz-60khz, the pulse interval is 180 degrees each other, and the dead time can be adjusted by itself. It can be applied to voltage and power regulation by chopper of IGBT full-bridge inverter series resonant induction heating device.
