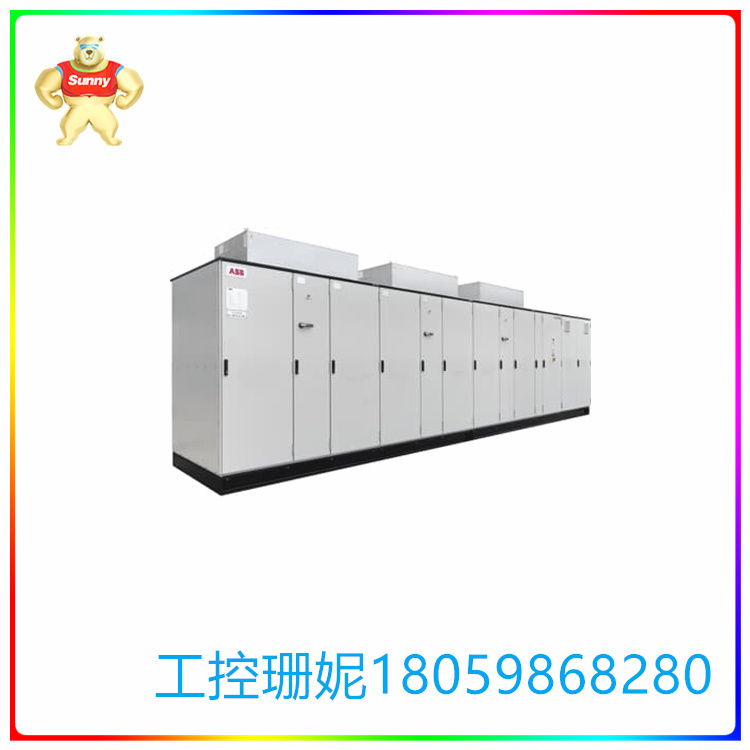

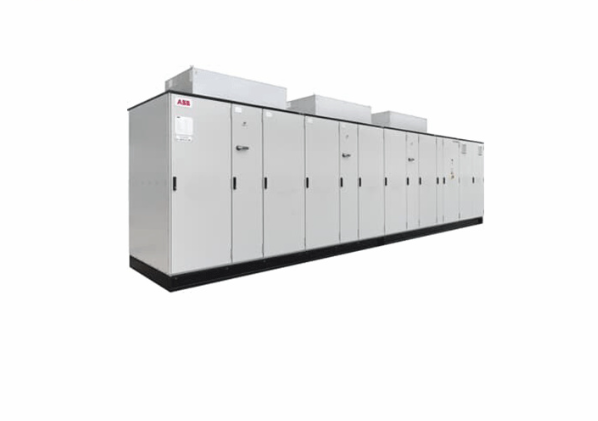

ACS5000 3BHB014024R0010 中压变频器 结合防电弧设计

【产品详情】

强大而可靠：具备卓越的安全性能和特定应用功能的中压变频器

ACS5000中压变频器能轻松控制您的大功率应用，如压缩机、泵和风机等。ACS5000可以在许多领域使用，基于其高可靠性的设计，特别适合化工、石油、天然气和电力行业。ACS5000提供各种行业专用功能，能与系统无缝集成，并提高生产率。由于ACS5000结合增强型防电弧设计，所以，可以在日常运营中确保人员和设备的安全性。

主要特性

结合防电弧设计及快速故障消除功能，可确保人员安全

成熟的设计且元器件数量少，可确保高可靠性

采用多电平拓扑结构，能很好地兼容标准电机

无熔断器设计

在整个速度范围内保持恒定的电网功率因数

直接转矩控制（DTC）功能

行业专用功能

功率范围3.0至36.0 MW，最高达13.8 kV

安全和保护要求

出于安全和保护原因， MCB 必须满足 ABB 中压传动规范的指定最低要

求。系统集成商有责任确保满足最低要求。本说明和相应的 MCB 规范中

规定了 MCB 的最低要求。这些规范适用于 ABB 的每个中压传动。

传动的安全要求基于以下标准：

■ ISO 13849-1 机械安全 - 控制系统相关安全部件 - 第 1 部分：设计通

则，第 6.2.6 节，第 3 章

■ IEC 60204-1 电气机械安全 - 机械电气设备 - 第 1 部分：一般要求

MCB 和 MCB 控制的最低要求

■ MCB 分闸和 / 或跳闸命令必须从传动直接连接到 MCB。如果未经认

证符合 SIL 3 级要求，并且满足下面列出的时序要求，否则不允许通

过任何 PLC 或 DCS 系统连接跳闸命令。传动必须随时可以对 MCB

分闸。不允许中断分闸和 / 或跳闸命令，例如通过 MCB 中的本地 -

远程开关。

■ 当 MCB 处于工作位置时，传动必须具备 MCB 合闸的独占控制权。

不允许在本地对 MCB 合闸

ACS5000 3BHB014024R0010 中压变频器 结合防电弧设计

【英文介绍】

Powerful and reliable: Medium voltage drives with superior safety performance and application-specific functions

The ACS5000 medium voltage inverter easily controls your high-power applications such as compressors, pumps and fans. The ACS5000 can be used in many fields and is particularly suitable for the chemical, oil, gas and power industries based on its highly reliable design. The ACS5000 offers a variety of industry-specific features that seamlessly integrate with systems and increase productivity. The ACS5000, combined with an enhanced arc protection design, ensures the safety of personnel and equipment during daily operations.

Main characteristics

Combined with anti-arc design and quick fault elimination, personnel safety is ensured

The mature design and small number of components ensure high reliability

It adopts multilevel topology and is compatible with standard motors

No fuse design

Maintain a constant grid power factor throughout the speed range

Direct torque control (DTC) function

Industry-specific functions

Power range 3.0 to 36.0 MW, up to 13.8 kV

Safety and protection requirements

For safety and protection reasons, the MCB must meet the specified minimum requirements of the ABB medium pressure drive specification

Please. It is the responsibility of the system integrator to ensure that minimum requirements are met. In this note and the corresponding MCB specification

Minimum MCB requirements are specified. These specifications apply to every medium pressure drive at ABB.

The safety requirements for transmission are based on the following criteria:

ISO 13849-1 - Safety of machinery - Safety components associated with control systems - Part 1: Design

Then, section 6.2.6, chapter 3

IEC 60204-1 Safety of electrical machinery - Electrical equipment of machinery - Part 1: General requirements

Minimum requirements for MCB and MCB control

■ MCB switching and/or tripping commands must be connected directly from the drive to the MCB. If not acknowledged

Pass is not permitted unless it meets the requirements of SIL Level 3 and the timing requirements listed below are met

Connect trip commands through any PLC or DCS system. Transmission must be readily available to MCB

Open the brake. Interrupting tripping and/or tripping commands, such as through local - in the MCB, is not allowed

Remote switch.

■ When the MCB is in the working position, the drive must have exclusive control of the MCB closing.

It is not allowed to close the MCB locally
