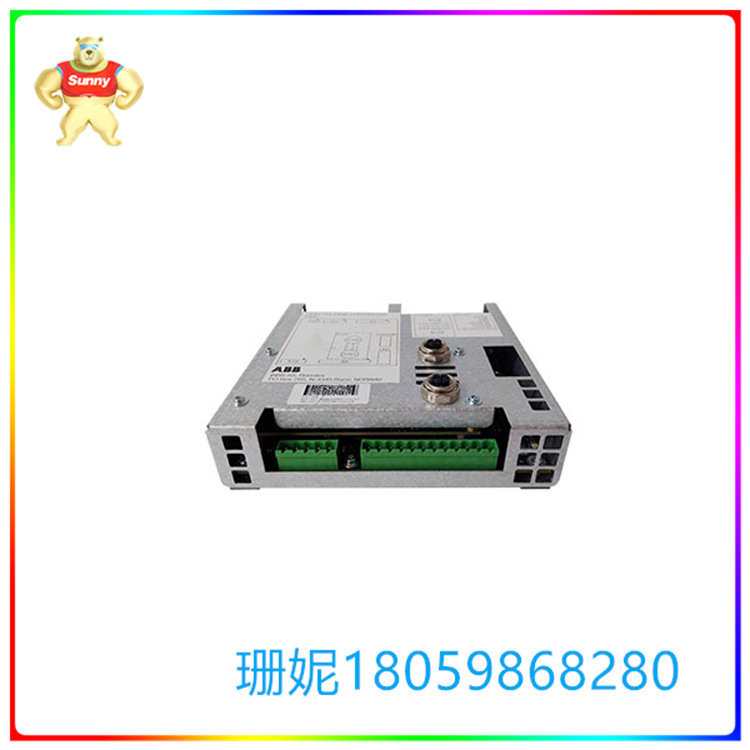

ABB HVC-02B 3HNA024966-001/03 机器人控制系统零件

【产品详情】

HFC-02B 3HNA024966-001/03喷涂机器人，又称喷涂机器人，是一种可以自动喷涂油漆或喷涂其他涂料的工业机器人，由挪威Trallfa公司(后并入ABB集团)于1969年发明。

涂装机器人主要由机器人本体、计算机和相应的控制系统组成，液压驱动的涂装机器人还包括液压油源，如油泵、油箱和电机。

喷涂机器人HCV-02B 3HNA024966-001/03多采用5或6自由度关节结构，机器人手臂具有较大的运动空间，并能做复杂的轨迹运动，其手腕一般具有2 ~ 3个自由度，可灵活运动。更先进的喷漆机器人的手腕采用了灵活的手腕，可以向各个方向弯曲，也可以旋转，其动作类似于人的手腕，可以很容易地通过较小的孔进入工件内部，并喷涂其内表面。喷漆机器人一般采用液压驱动，具有动作速度快、防爆性能好等特点。它可以用手或点的位置来教。涂装机器人广泛应用于汽车、仪表、电器、珐琅等工艺生产部门。

喷涂机器人的类型特点:

1. 气体喷涂机器人

HVC-02B 3HNA024966-001/03气动喷涂机器人又称低压气动喷涂，喷涂机依靠低压空气使油漆在喷嘴内形成雾化空气后在物体表面(墙壁或木材表面)上，气动喷涂相对于手刷刷，且平面相对均匀，单位工作时间短，可有效缩短施工周期。但是，有气体喷涂的飞溅现象，有浪费油漆的现象，近距离观看时可以看到非常细的颗粒。一般空气喷涂采用装饰行业常见的空气压缩机，相对来说一机多用，投资成本低，市场上也有专用机械，如抽气空气喷涂机和自落式空气喷涂机。

2. 无气喷涂机器人

HFC-02B 3HNA024966-001/03无气喷涂机器人可用于高粘度涂料的施工，且边缘清晰，甚至可用于一些有边界要求的喷涂项目。根据机械类型的不同，可分为气动无气喷雾器、电动无气喷雾器、内燃无气喷雾器、自动喷雾器等。另外，需要注意的是，如果对金属表面进行喷涂，可以选择金属漆(搪瓷)。

ABB HVC-02B 3HNA024966-001/03 机器人控制系统零件

【英文介绍】

The HFC-02B 3HNA024966-001/03 Spraying robot, also known as the spraying robot, is an industrial robot that can automatically spray paint or spray other coatings, invented in 1969 by the Norwegian Trallfa company (later incorporated into the ABB Group).

HVC-02B 3HNA024966-001/03 Painting robot is mainly composed of robot body, computer and corresponding control system, hydraulic driven painting robot also includes hydraulic oil source, such as oil pump, oil tank and motor.

Spraying robot HCV-02B 3HNA024966-001/03 mostly uses 5 or 6 degrees of freedom joint structure, the robot arm has a large movement space, and can do complex trajectory movement, its wrist generally has 2 to 3 degrees of freedom, can be flexible movement. The wrist of the more advanced painting robot uses a flexible wrist, which can be bent in all directions and can be rotated, and its action is similar to that of a human wrist, which can easily reach into the inside of the workpiece through a smaller hole and spray its inner surface. The spray painting robot is generally driven by hydraulic pressure and has the characteristics of fast action speed, good explosion-proof performance, etc. It can be taught by hand or point position. Painting robot is widely used in automobile, instrument, electrical appliance, enamel and other process production departments.

Type characteristics of spraying robot:

1. Gas spraying robot

HVC-02B 3HNA024966-001/03 Pneumatic spraying robot is also known as low-pressure pneumatic spraying, spraying machine relies on low-pressure air to make the paint in the nozzle after the formation of atomization air on the surface of the object (wall or wood surface), pneumatic spraying relative to the hand brush brush, and the plane is relatively uniform, the unit working time is short, It can effectively shorten the construction period. However, there is a splash phenomenon of gas spraying, there is a waste of paint, and very fine particles can be seen when viewed at close range. Generally, air spraying uses air compressors common in the decoration industry, relatively speaking, a multi-purpose machine, low investment cost, there are also special machinery on the market, such as pumping air spraying machine and self-falling air spraying machine.

2. Airless spraying robot

The HFC-02B 3HNA024966-001/03 airless spraying robot can be used for the construction of high viscosity paint, and the edge is clear, and even can be used for some spraying projects with boundary requirements. Depending on the type of machinery, it can be divided into pneumatic airless sprayer, electric airless sprayer, internal combustion airless sprayer, automatic sprayer and so on. In addition, it should be noted that if the metal surface is sprayed, metal paint (enamel) can be selected.

ABB HVC-02B 3HNA024966-001/03 机器人控制系统零件

【其他型号推荐】

【常见问题】

1）备件

2）保修期：12个月！

3）包装：原包装与纸箱。

4）交货时间：付款后3天内发货

5）所有货物将在发货前进行测试。

无论您对库存，价格，故障排除还是其他方面有任何疑问，我们都能满足您的需求。请致电我们，填写我们的表格，或向我们发送电子邮件-任何适合您的方式。期待您的回音！

问：您的交货时间如何？

答：我们有很多库存商品，3-5天您将收到它。

问：你们提供保修吗？

答：是的，我们为所有剩余的部件提供1年保修。

问：您可以接受哪些付款方式？

答：通常我们在中国大陆接受T/T和人民币转账
