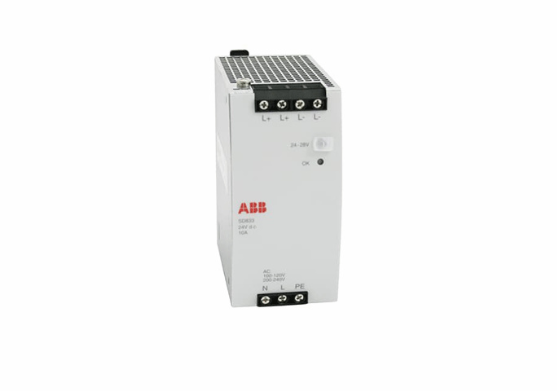

SD831  SD831 简单的din导轨安装 开关模式电源单元

【产品详情】

SD83x电源单元设计满足所有适用的要求

符合欧洲统一en50178标准的电气安全数据

标准出版物和附加的安全性和功能数据

符合EN 61131-2和UL 508的要求。

二次输出电路可用于SELV或PELV

应用程序。它们是转换的开关模式电源单元

市电电压到24伏直流。这些电源可以

用于非冗余和冗余应用程序。

冗余应用需要二极管投票单元SS823或SS832。

与类型的SD83x系列电源单元，没有

安装主过滤器的要求。它们提供了一种

startfeature;SD83x上电不会触发保险丝或接地故障

断路器

特点和优点

简单的din导轨安装

I类设备(连接保护地(PE)时)

iii类过电压，用于连接主电源

TN网络

二次电路与一次电路的保护分离

接受SELV和PELV申请

单元的输出具有过流保护

(限流)和过电压(OVP)

交流和直流输入在SD831和SD834

SD831  SD831 简单的din导轨安装 开关模式电源单元

【英文介绍】

The SD83x Power Supply Units are designed to meet allthe applicable

electrical safety data stated bythe EN 50178 harmonized European

Standard Publication and the additional safety and function data

required by EN 61131-2 and UL 508.

The secondary outputcircuitryis accepted for SELV or PELV

applications.   They are switch-mode Power Supply Units thatconvert

the mains voltage to 24 volts d.c. These power supplies can be

utilized for non-redundant and redundant applications.

Redundant applications require diode voting units SS823 or SS832.

With the type SD83x series Power Supply Units,there is no

requirementfor the installation of a mains filter.   They provide a soft

startfeature;   power-on of an SD83x will nottrip fuses or earth-fault

circuit breakers

Features and benefits

Simple DIN-rail mounting

Class I Equipment, (when connected to Protective Earth, (PE))

Over-voltage CategoryIII forconnection to primary main

TN network

Protective separation of secondarycircuitfromprimarycircuit

Accepted for SELV and PELV applications

The output of the units is protected against overcurrent

(currentlimit) and over-voltage (OVP)

Both a.c. and d.c. input at SD831 and SD834
