ABB PM891 处理器是一个单片单元，配备电源

【产品详情】

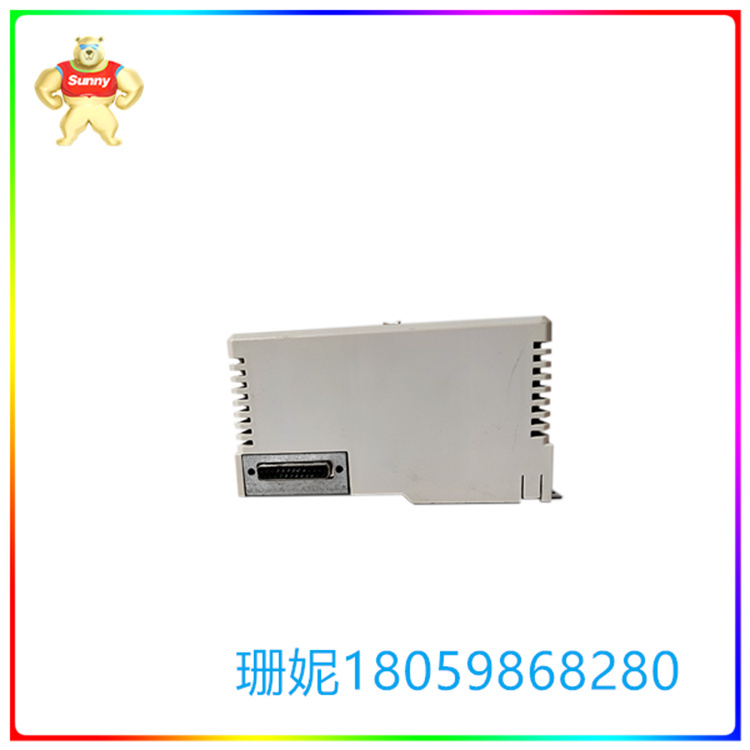

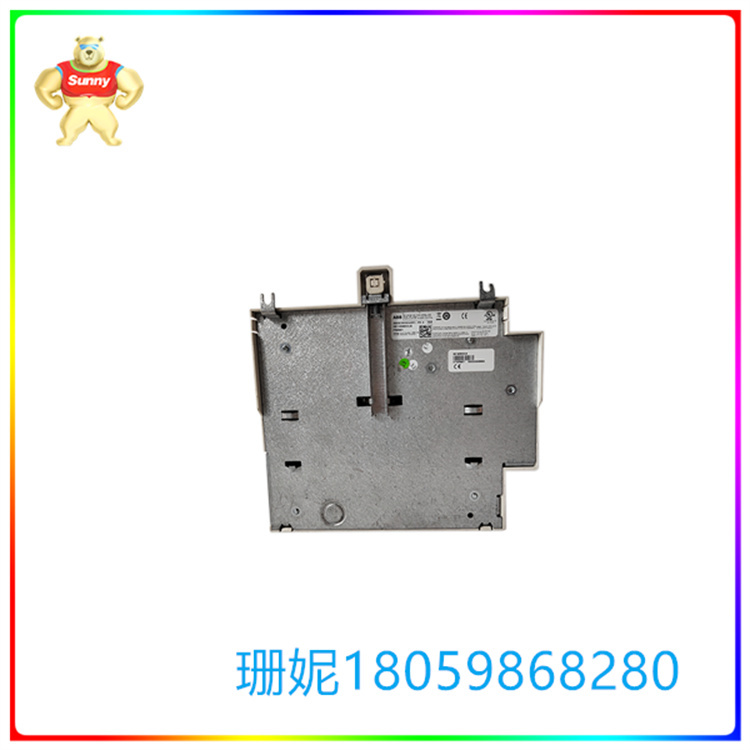

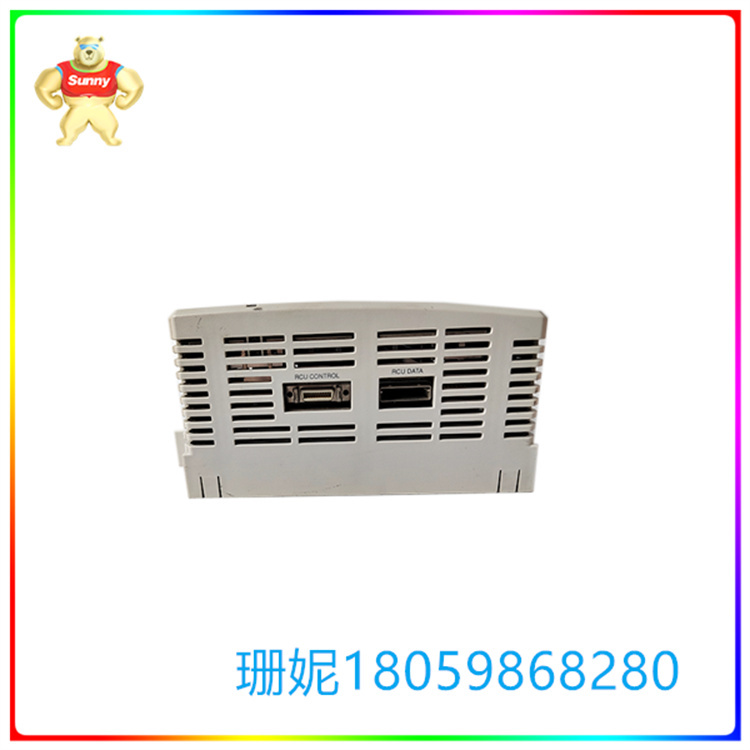

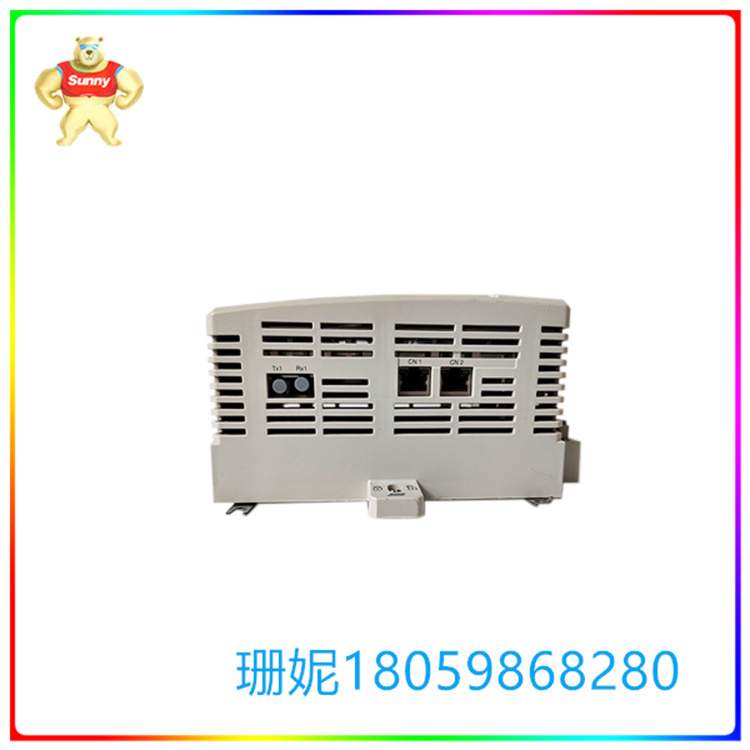

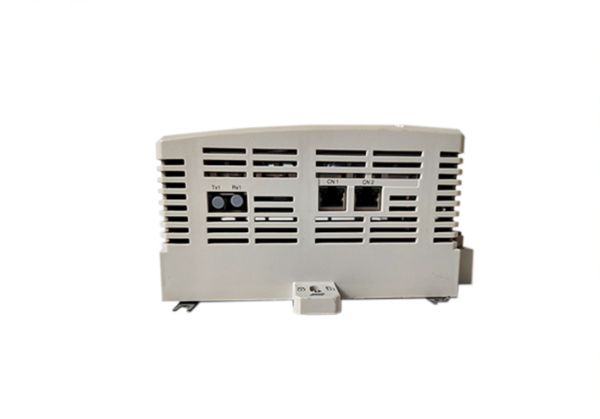

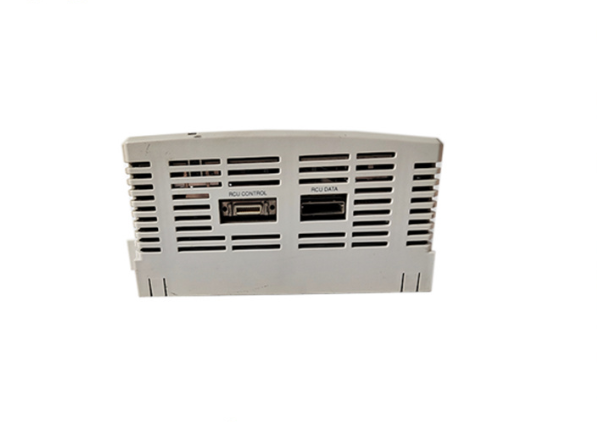

PM891 处理器是一个单片单元，配备电源、CPU 板和单元终端。该装置包含微处理器和RAM存储器、实时时钟、LED指示灯、INIT按钮和安全数字接口。PM891 不包含任何内置电池 PM891 有两个用于连接到控制网络的 RJ45 以太网端口（CN1、CN2）和一个 RJ45 串行端口 （COM4）。COM4 端口是隔离的，用于配置工具。PM891 支持 CPU 冗余以实现更高的可用性（CPU、CEX 总线、通信接口和 S800 I/O）。

通信扩展总线（CEX-Bus）安装在本机上。CEX-Bus 用于扩展带有通信接口单元的板载通信端口。可以在 CEX-Bus 上使用冗余通信接口。CEX-Bus 互连单元 BC810 用于通过将 CEX-Bus 划分为单独的段来提高其可用性。该单元的光学模块总线可用于连接七个 S800 I/O 单元集群（每个集群最多包含 12 个单元）。每个 PM891 都提供唯一的以太网地址，为设备提供硬件标识。

特点和优势

可靠性和简单的故障诊断程序

模块化，允许逐步扩展

IP20 防护等级，无需外壳

控制器具有完整的EMC认证

高性能和大容量应用程序内存

使用一对 BC810 的分段式 CEX 总线

内置冗余以太网通信端口

General info

货号 3BSE053241R1 （PM891K01）

冗余 不

高完整性 不

时钟频率 450兆赫

性能，1000 个布尔运算 0.043 毫秒

性能 0.043 毫秒

记忆 256兆字节

RAM可用于应用程序 208.985兆字节

用于存储的闪存 是的

详细数据

环境与认证

ABB PM891 处理器是一个单片单元，配备电源

【英文介绍】

The PM891 processor is a single chip unit with a power supply, CPU board, and unit terminal. The device includes a microprocessor and RAM memory, real-time clock, LED indicator, INIT button, and secure digital interface. The PM891 has two RJ45 Ethernet ports for connecting to the control network (CN1, CN2) and one RJ45 serial port (COM4). The COM4 port is isolated and used for configuration tools. The PM891 supports CPU redundancy for higher availability (CPU, CEX bus, communication interface, and S800 I/O).

The Communication Extension Bus (CEX-Bus) is installed on this machine. The CEX-Bus is used to extend the onboard communication port with a communication interface unit. Redundant communication interfaces can be used on the CEX-Bus. The CEX-Bus interconnect unit BC810 is used to improve the availability of the CEX-Bus by dividing it into separate segments. The unit's optical module bus can be used to connect up to seven clusters of S800 I/O units (each containing up to 12 units). Each PM891 provides a unique Ethernet address that provides a hardware identity for the device.

Characteristics and advantages

Reliable and simple troubleshooting program

Modular, allowing for gradual expansion

IP20 protection grade, no case required

The controller has full EMC certification

High performance and large capacity application memory

Use a pair of segmented CEX buses for the BC810

Built-in redundant Ethernet communication port

General info

Item No. 3BSE053241R1 (PM891K01)

Redundant not

High integrity

Clock frequency 450 MHZ

Performance, 0.043 milliseconds for 1000 Boolean operations

Performance 0.043 ms

Memory 256 megabytes

RAM is available for 208.985 megabytes of applications

Flash memory for storage Yes

Detailed data

Environment and certification
