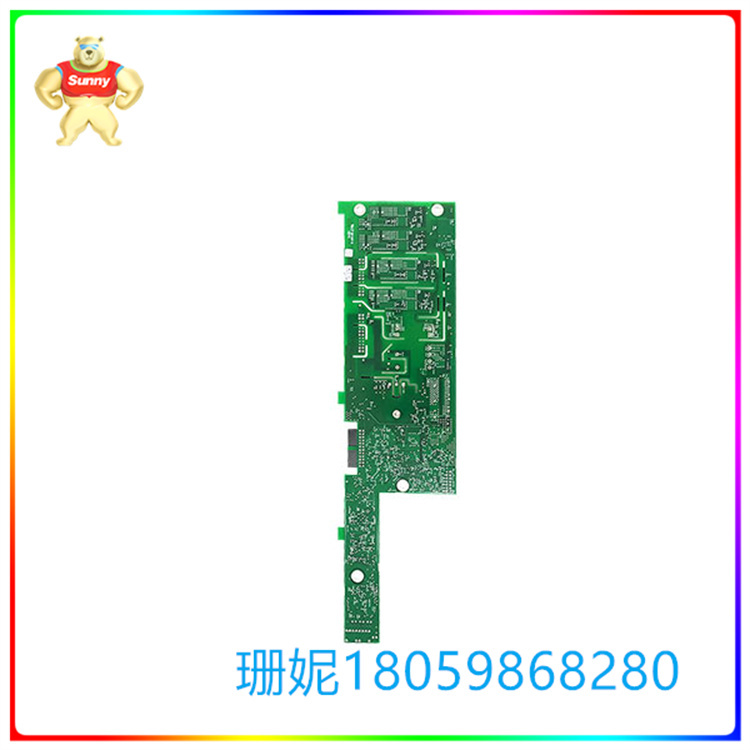

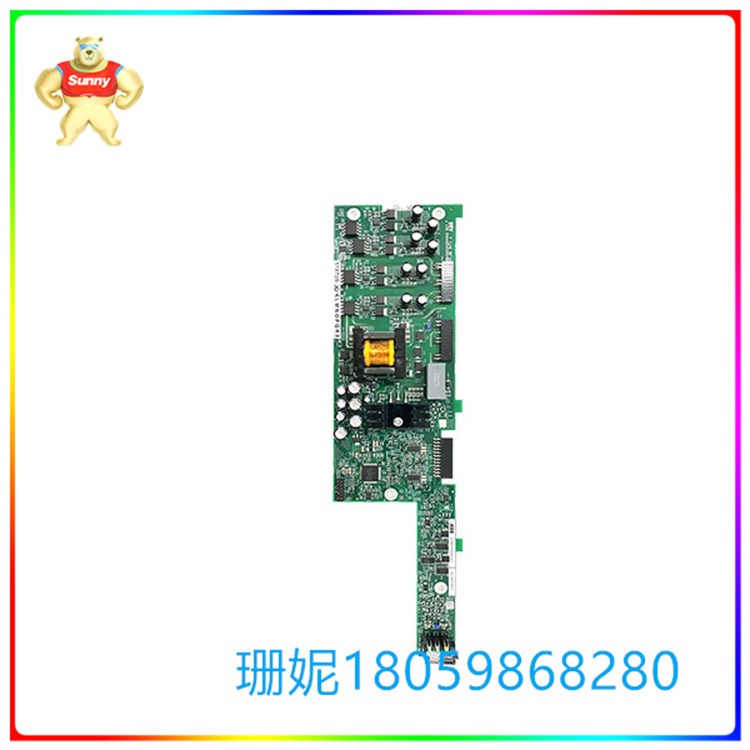

ABB GDD471A001 紧凑的多功能设备 控制卡模块

【产品详情】

ABB GDD471A001模块是专为工业环境使用而设计的产品。它用于监视和控制各种过程，并且能够与一系列不同的设备连接。

产品描述

ABB GDD471A001模块是一款紧凑的多功能设备，可以轻松集成到现有的工业系统中。它的设计是高度可靠和耐用的，并且能够在广泛的温度和环境下工作。

产品参数

—输入电压:24V DC

—输出电压:24V DC

—输入电流:50mA

-输出电流:100mA

—工作温度:-40℃~ +85℃

—存储温度:-40℃~ +85℃

首先，要明确一点，无论是PLC，还是运动控制器、运动控制卡，它们的本质都是一种控制器，主要负责自动化系统中运动轴的控制，同时也支持输入输出信号的控制。从区别来看，主要有以下几点：

1、 PLC的专长在于逻辑IO控制，实现一些复杂的逻辑控制都很容易。对于运动控制，一般低端的PLC主要是通过高速输出点来进行脉冲控制，中高端PLC一般会通过总线的方式来进行控制，常用的总线包括Profinet、EtherCAT、CC-Link等。

2、 运动控制卡通过PCI插槽将控制卡插在PC的主机上，也可以通过以太网连接到PC主机上；利用高级编程语言C++、C#、VB、http://VB.NET、labview等编程语言进行开发；编程中使用运动控制卡厂商提供的控制卡API接口函数，来实现对控制卡资源的使用；运动控制卡也分为脉冲型和总线型，一般总线型要比脉冲型稍贵一些。

ABB GDD471A001 紧凑的多功能设备 控制卡模块

【英文介绍】

The ABB GDD471A001 module is designed for use in industrial environments. It is used to monitor and control various processes and is capable of connecting with a range of different devices.

Product description

The ABB GDD471A001 module is a compact, versatile device that can be easily integrated into existing industrial systems. It is designed to be highly reliable and durable, and capable of operating in a wide range of temperatures and environments.

Product parameter

- Input voltage :24V DC

- Output voltage :24V DC

- Input current :50mA

- Output current :100mA

- Operating temperature :-40 ° C to +85 ° C

- Storage temperature :-40 ° C to +85 ° C

First of all, to be clear, whether it is PLC, or motion controller, motion control card, their essence is a controller, mainly responsible for the control of the motion axis in the automation system, but also support the control of input and output signals. From the perspective of difference, there are mainly the following points:

1, PLC expertise lies in logic IO control, to achieve some complex logic control is very easy. For motion control, the general low-end PLC is mainly through the high-speed output point to pulse control, and the high-end PLC is generally controlled by the bus, the commonly used bus includes Profinet, EtherCAT, CC-Link and so on.

2, the motion control card is inserted into the PC host through the PCI slot, and can also be connected to the PC host through Ethernet; Advanced programming languages such as C++, C#, VB, http://VB.NET, labview are used for development; In programming, the control card API function provided by the motion control card manufacturer is used to realize the use of the control card resources. Motion control cards are also divided into pulse type and bus type, and the general bus type is slightly more expensive than the pulse type.

ABB GDD471A001 紧凑的多功能设备 控制卡模块
